Node Duo
EN
ES
DE
Setup guide - Guía de configuración - Setup-Anleitung - Guide d'installation
安裝手冊 - 安装手册 - 설치 안내서 - セッ トアップガイド
To download the latest version of this document, please visit our website at
https://www.akitio.com/support/user-manuals
Version 1.0
5/7/2018
E15-574X1AA001
© 2018 by AKiTiO - All Rights Reserved
AKiTiO assumes no responsibility for any errors or differences between the product you may have and the one mentioned in this document
and reserves the right to make changes in the specifications and/or design of this product without prior notice. The diagrams contained in
this document are for reference and may not fully represent the real product. AKiTiO assumes no responsibility for any loss of data or files.
www.akitio.com
California, USA
FR
CH
KO
J
P

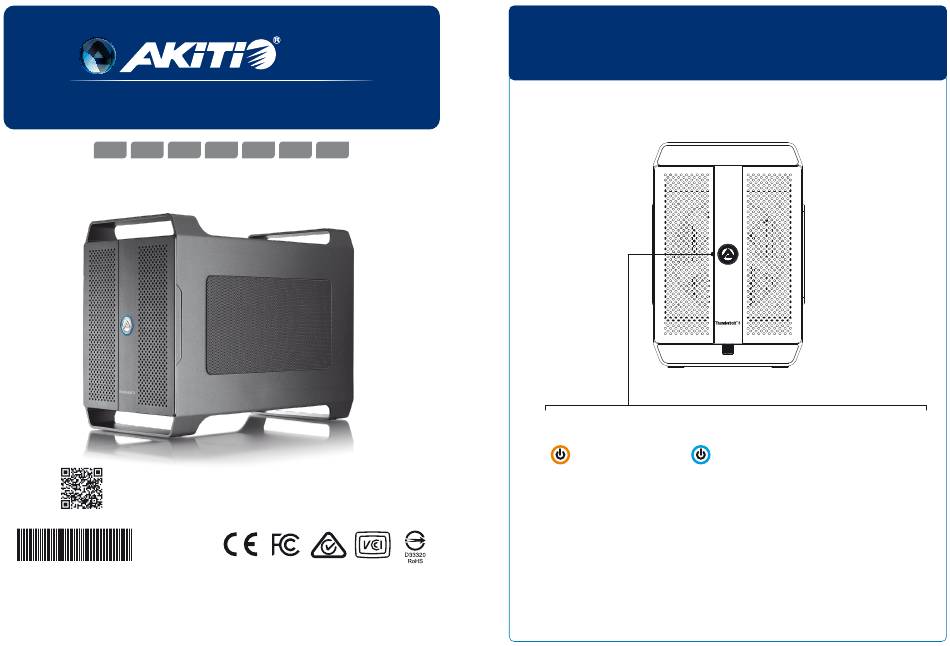

Front View - Vista frontal - Frontansicht - Vue de face
正面 - 正面 - 정면도 - フロン トビュー
LED indicator (power & link status)
Orange = Power ON
Blue = Power ON / Thunderbolt link established
Naranja = Encendido
Azul = Encendido / Conexión Thunderbolt establecida
Orange = Strom eingeschaltet
Blau = Eingeschaltet / Thunderbolt-Verbindung hergestellt
Orange = Allumé
Bleu = Allumé / Liaison Thunderbolt établie
橙色 = 電源開啟
藍色 = 電源開啟 / Thunderbolt 已連線
橙色 = 电源开启
蓝色 = 电源开启 / Thunderbolt 已联机
오렌지 = 전원 켜짐
파란색 = 전원 켜짐 / Thunderbolt 링크가 구성됨
オレンジ = 電源オン
ブルー = 電源オン / サンダーボルト接続中
Werbung
Verwandte Anleitungen für Akitio Node Duo
Inhaltszusammenfassung für Akitio Node Duo
- Seite 1 The diagrams contained in this document are for reference and may not fully represent the real product. AKiTiO assumes no responsibility for any loss of data or files.
- Seite 2 Device Thunderbolt 3 USB-C cable Thunderbolt™ 3 Computer DC +12V (12V/12.5A) USB 3.1 Gen 2 Device Power receptacle Node Duo Toma de alimentación Netzanschluss Display 2 Prise de courant 電源插座 电源插座 전원 콘센트 電源コンセン ト Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.
- Seite 3 Step 1 Knurled thumb screw: 4pcs Thread diameter: M3 Thread length: 4.5mm (head 9mm) PN: E16-1498320010...
- Seite 4 Step 2 Option 1 Option 2 Option 3 150W 150W 230W max 8.66 in (22 cm) 2x PCIe cards 1x PCIe card 2x PCIe cards PCIe cards PCIe x2 (electrical) max 4.94 in (12.5 cm) PCIe x16 (mechanical) PCIe power 2x 25W 1x 75W 2x 75W...
-
Seite 5: Important Notice
Step 3 Step 4 Turn on the computer, plug in the power adapter to turn on the device and then connect the Thunderbolt cable. Encienda el equipo, enchufe el adaptador de alimentación para encender el dispositivo y, a continuación, conecte el cable Thunderbolt. Schalten Sie den Computer ein, schliessen Sie das Netzteil an und verbinden Sie dann das Thunderbolt-Kabel, um das Gerät einzuschalten. -
Seite 6: Driver Installation
Batterie, auch wenn der Laptop an keine andere Stromversorgung angeschlossen ist, aufgeladen werden. Check if your PCIe card is compatible https://www.akitio.com/information-center/ Cet appareil prend en charge Power Delivery (PD), fournissant une alimentation de 27W aux pcie-card-compatibility-chart ordinateurs portables qui peuvent être chargés depuis une source d'alimentation 20 V/3 A... - Seite 7 Specifications - Especificaciones Technische Daten - Caractéristiques PCIe Card PCIe-Steckkarte 2 PCIe (x16) slots supporting half-length, full-height, double-width cards 2 PCIe-Steckplätze (x16) für Karten mit halber Länge (half-length), voller 2 lane PCI Express 3.0 compliant interface Höhe (full-height) und doppelter Weite (double-width) PCIe slot provides a maximum of 25W PCI Express 3.0 kompatible Schnittstelle mit 2 Lanes PCIe-Steckplatz bietet ein Maximum von 25W an...
- Seite 8 產品規格 - 产品规格 사양 - 製品仕様 PCIe 卡 PCIe 카드 2個PCIe (x16)插槽 ， 支援半長 、 全高和雙寬PCIe 卡 2 개의 PCIe (x16) 슬롯(1/2 길이, 전체 높이, 2배 너비 카드 지원) 支援PCI Express 3.0 x2 2 레인 PCI Express 3.0 규정 준수 인터페이스 PCIe插槽提供最大25W電量...
