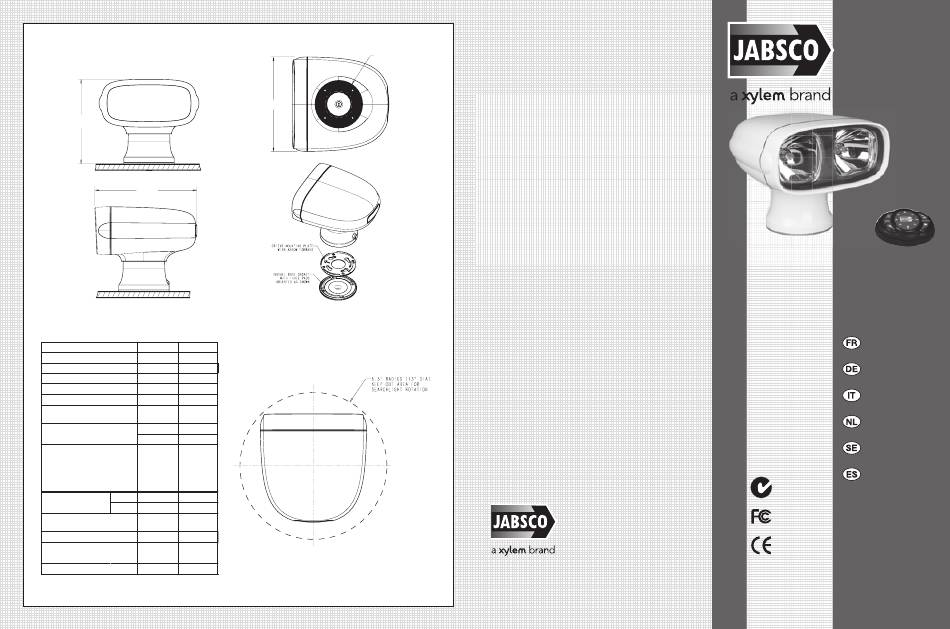

Dimensional Drawings
8.0 In.
203.2 mm
9.6 In.
243.8 mm
• The 233SL gives the marketplace a modern stylish searchlight
with advanced features and innovative solutions to customer
feedback that compliments today's modern motor yachts.
4.75 In.
120.7 mm
Technical Specifications
SPECIFICATION 12V 24V
PART NUMBER - OEM 60233-0512 60233-0524
PART NUMBER - RETAIL 60233-0012 60233-0024
9.4 In.
VOLTAGE (VOLTS) 12 24
238.8 mm
CURRENT (AMPS) 10 7
MIRROR DIAMETER 3" 3"
BULB CONFIGURATION 55W 55W
(WATTS) halogen halogen
NUMBER OF BULBS 2 2
CANDLE POWER 200,000 200,000
BEAM SPREAD Variable Variable
due to due to
progressive progressive
Spot to Spot to
Flood Flood
Feature Feature
ELEVATION ANGLE UP 9 9
(DEGREES)
DOWN 18 18
ROTATION CAPABILITY 360 360
continuous continuous
ELEVATION SPEED (DEG/SEC) 7.5 7.5
ROTATION SPEED 26 26
(DEG / SEC)
w 10 10
WEIGHT (LBS) 6lbs* 6lbs*
*Weight is calculated using the light, mounting bracket, and controller
* roller
4.75 In.
120.7 mm
9.6 In.
243.8 mm
9.4 In.
238.8 mm
4.75 In.
120.7 mm
9.4 In.
238.8 mm
V
A
w
Sp
Sp
FCC Regulations
This device complies with part 15 of the FCC Rules. (1) This device
may not cause harmful interference. (2) This device must accept
any interference received, including interference that may cause
undesired operation.
Section 15.105 Information to the user
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequencey energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does causes
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
