PNI MP10 Benutzerhandbuch
  1. Anleitungen
  2. Marken
  3. PNI Anleitungen
  4. Adapter
  5. MP10
  6. Benutzerhandbuch

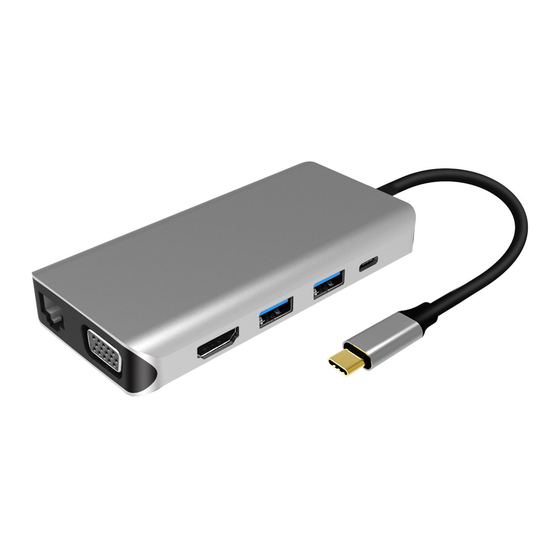

PNI MP10 Benutzerhandbuch

Vorschau ausblenden
Inhaltsverzeichnis

Werbung

Quicklinks

Diese Anleitung herunterladen
EN
User manual .............................................
DE
Benutzerhandbuch ...................................
ES
Manual de usuario ....................................
FR
Manuel utilisateur .....................................
HU
Használati utasítás ...................................
IT
Manuale utente ........................................
PL
Instrukcja obsługi .....................................
RO
Manual de utilizare ...................................
PNI MP10
2
12
24
37
48
60
72
84

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für PNI MP10

Inhaltszusammenfassung für PNI MP10

  • Seite 1: Inhaltsverzeichnis

    PNI MP10 User manual ..........Benutzerhandbuch ........Manual de usuario ........Manuel utilisateur ........Használati utasítás ........Manuale utente ........Instrukcja obsługi ........Manual de utilizare ........

  • Seite 2: User Manual

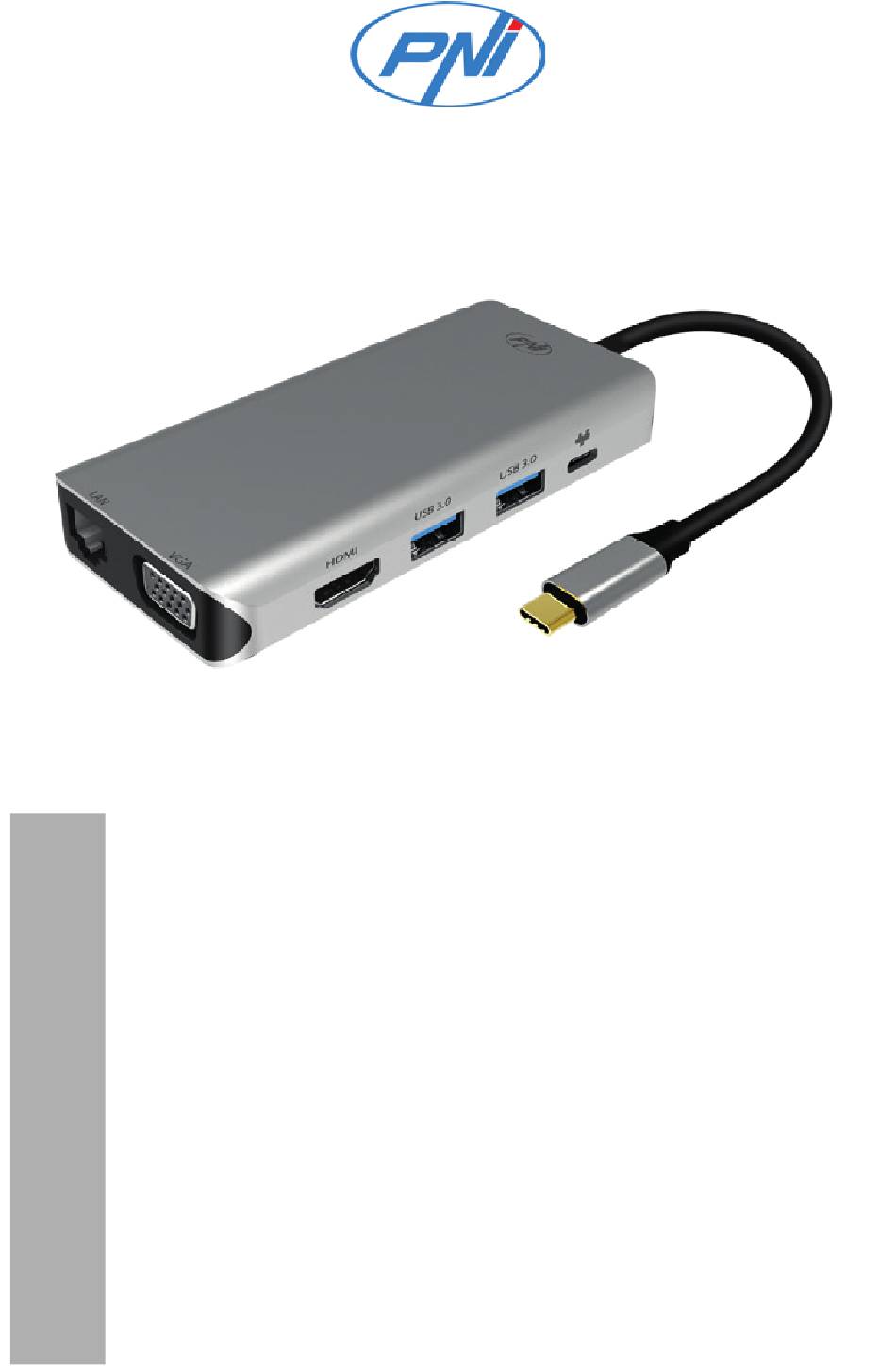

    User manual Multiport adapter PNI MP10 USB-C to HDMI, VGA, 3 x USB 3.0, SD&TF, RJ45, audio 3.5, USB-C PD, 10 outputs ENGLISH...
