Hardware Installation

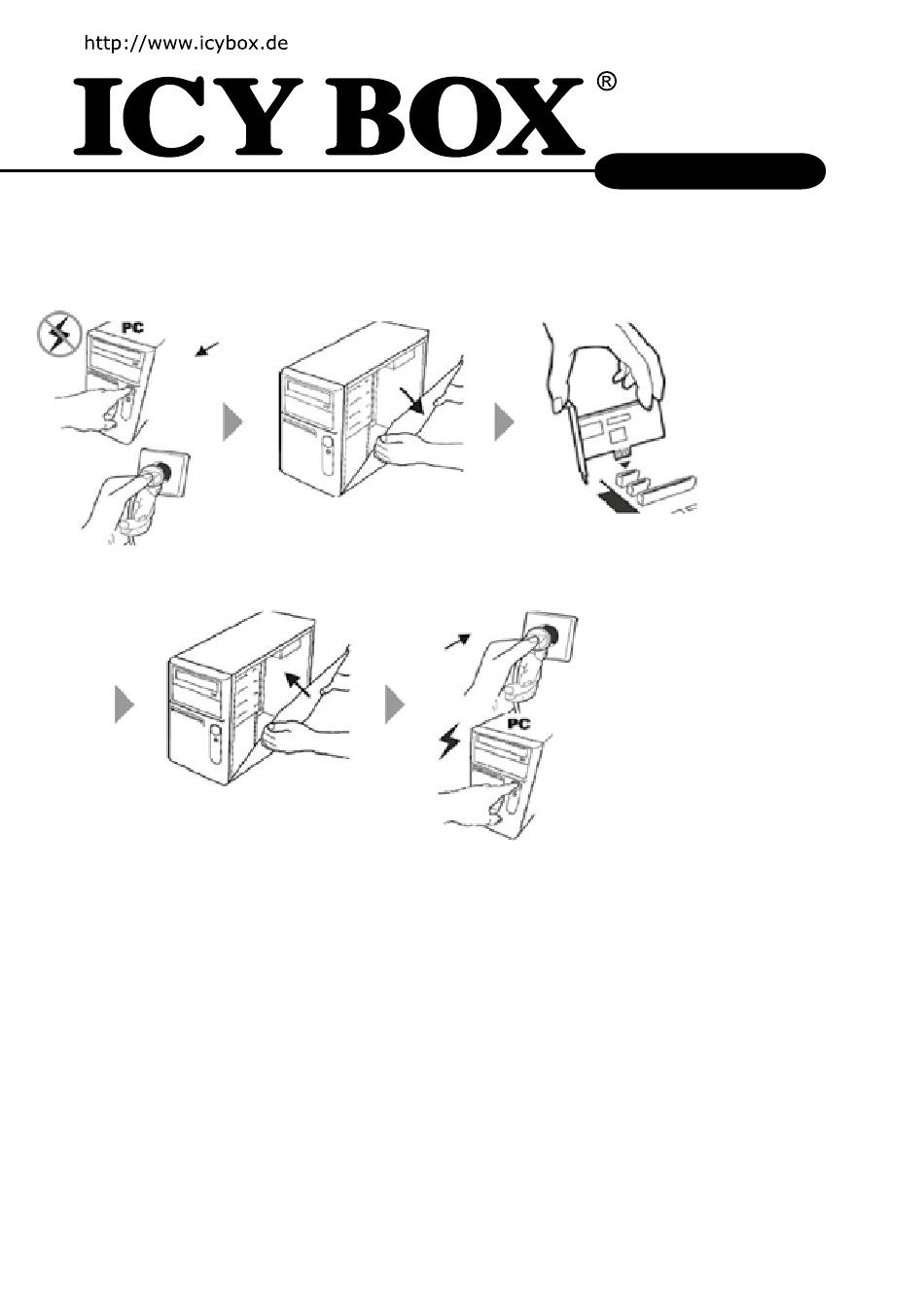

Follow the instruction given above to install the PCI Express Card:
1. Turn your computer off and remove the power plug from the plug socket
2. Remove the cover from the computer case
3. Remove the metal cover plate on the rear of a free PCI Express slot (e.g. PCIe x16)
4. Insert the card into one free PCI Express slot and screw it firmly on the bracket side
Plug SATA Power cable (from PC's Power Supply) to the add-on card's SATA port
5.
Place the cover back onto the computer
6.
Insert the plug into the plug socket
IB-U31-01
