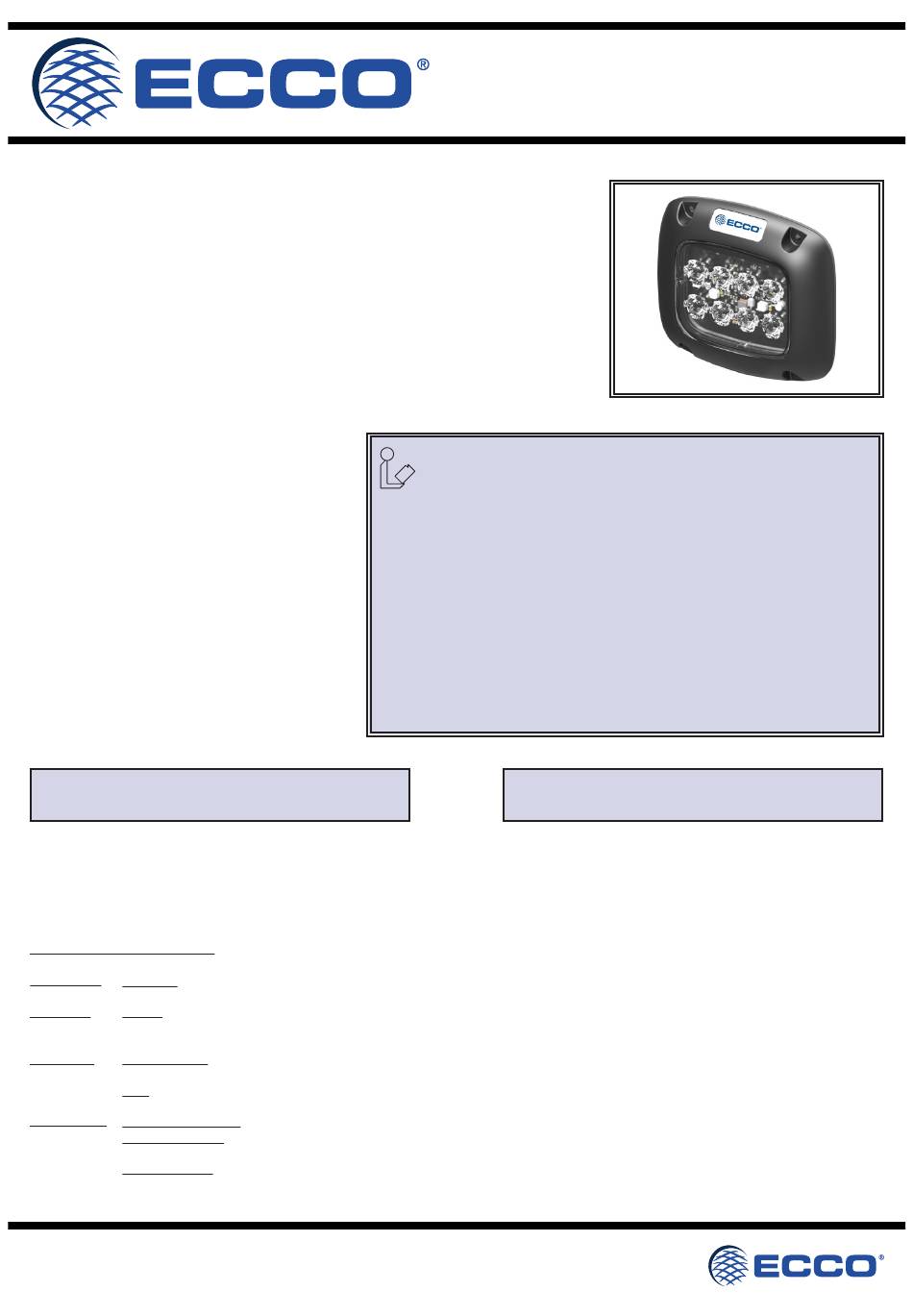

Ecco SecuriLED II Installations- Und Betriebs-Anleitung

The SecuriLED II are the new generation of Directional LED lamps following the very successful
launch of Delta Design SecuriLED. They feature enhanced styling, features and improved
performance. The units are interchangeable with the original SecuriLED, sharing similar
dimensions and the same fixing hole size and centres.
They are particularly suited to larger vehicles and situations where a 'BIG' warning signal is
desired, e.g. Trucks, Road Sweepers, Agricultural Trailers etc.
Available in several colours, applicable colours are approved to ECE Regulation 65 Category X
Class II, multiple flash patterns are selectable and multiple units can be synchronised.
Also available separately are coloured bezels to suit different vehicle body colours.
These units are sealed against moisture and dust ingress, feature a non-corrosive bezel, are
resistant to humidity and vibration and feature a low current draw. They operate at 12 or 24VDC
and offer a long and maintenance free service life.
Item Nº: ED5110A (LED colour: A = Amber R65)
ED5110B (LED colour: B = Blue R65)
ED5110R (LED colour: R = Red R65)
ED5110W (LED colour: W = White)
Size: Height = 118mm [4.64in]
Width = 130mm [5.11in]
Depth = 21.5 [0.84in] ( ± 2 foam thickness)
Input Voltage: 9 ~ 32 VDC (Fuse @ 2A)
kit
includes: 1x SecuriLED Directional
1x Installation Manual
1x Mounting Kit
1x Foam Gasket
Important! This unit is a safety device, and it must be
connected to its own separate, fused power point to assure its
continued operation should any other electrical accessory fail.
Installation & Mounting: Before installation, examine the Directional LEDs for transit damage. Do not use damaged or broken
parts.
The mounting location should allow the maximum visibility of the warning device to other road users,
while allowing for sufficient wire access.
Wire functions are as follows:
Black Wire: Negative. Connect to either the battery negative terminal or a suitable chassis point.
Red Wire:
Power. Switch to battery positive to operate the module. Must be powered through the fuse, located as close to the
battery terminal as possible.
Blue Wire:
Pattern Select: Touch to negative momentarily to cycle through available flash patterns (see flash pattern/timing
table for configurations).
Dim: Connect to positive for DIM/Class 1 mode.
Yellow Wire:
Synchronised Flash: Connect YELLOW wires of all units together after setting all units to the same pattern.
Alternating Flash: Set all units to either Phase A or Phase B of the same flash pattern, then connect the YELLOW
wires together. Units set to Phase A will alternate with units set to Phase B.
Cruise function: Connect to negative for cruise mode.
Page 1 of 3
P/N 920-5110-00 (Rev F) 2019-07-04
INSTALLATION & OPERATING
SecuriLED II - DIRECTIONAL
Do not install and/or operate this safety product unless you have read
and understand the safety information contained in this manual.
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning
devices are essential to ensure the safety of you and those you are seeking to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly connected to the vehicle negative. Poor connections and/or shorting of electrical
connections can cause high current arcing, which can cause personal injury and/or severe vehicle damage,
including fire.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so
that output performance of the system is maximized and the controls are placed within convenient reach of the
operator so that s/he can operate the system without losing eye contact with the roadway.
5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly.
In use, the vehicle operator should ensure the projection of the warning signal is not blocked by vehicle
components (i.e., open trunks or compartment doors), people, vehicles, or other obstructions.
6. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning
signal. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before
entering an intersection, driving against traffic, responding at a high rate of speed, or walking on or around traffic
lanes.
7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding
and obeying all laws regarding warning signal devices. Therefore, the user should check all applicable city, state,
and federal laws and regulations. The manufacturer assumes no liability for any loss resulting from the use of this
warning device.
Caution: When drilling into any vehicle surface, make sure the
area is free from any electrical wires, fuel lines, vehicle
upholstery, etc. that could be damaged
INSTRUCTIONS
