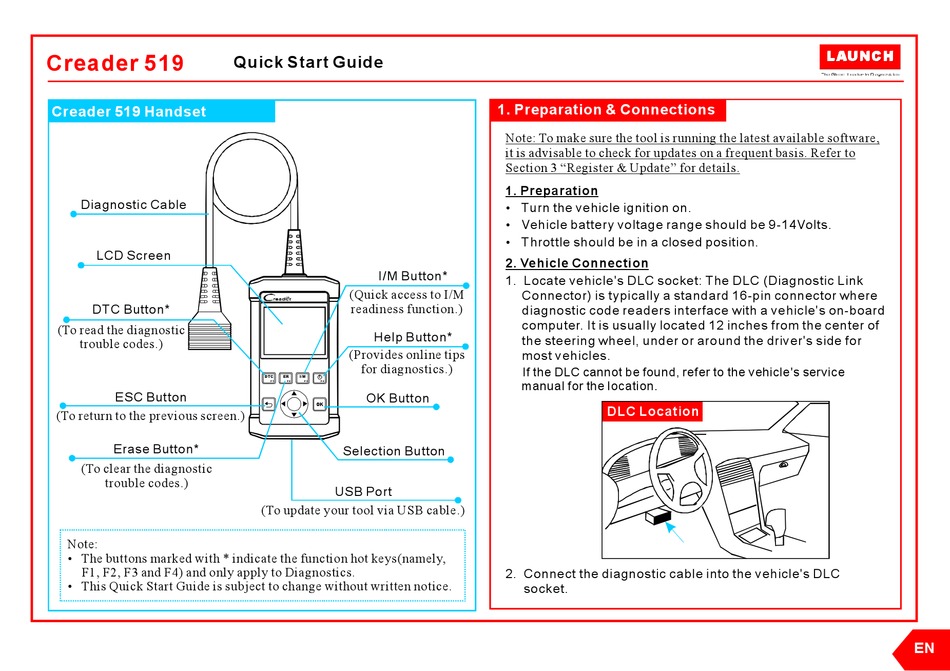

Creader 519
Creader 519 Handset
Diagnostic Cable
LCD Screen
DTC Button*
(To read the diagnostic
trouble codes.)
ESC Button
(To return to the previous screen.)
Erase Button*
(To clear the diagnostic
trouble codes.)
Note:
The buttons marked with * indicate the function hot keys(namely,

F1, F2, F3 and F4) and only apply to Diagnostics.
This Quick Start Guide is subject to change without written notice.

Quick Start Guide
I/M Button*
(Quick access to I/M
readiness function.)
Help Button*
(Provides online tips
for diagnostics.)
DTC ER I/M ?
F 1 F 2 F 3 F 4
OK Button
OK
Selection Button
USB Port
(To update your tool via USB cable.)
1. Preparation & Connections
Note: To make sure the tool is running the latest available software,
it is advisable to check for updates on a frequent basis. Refer to
Section 3 "Register & Update" for details.
1. Preparation
Turn the vehicle ignition on.

Vehicle battery voltage range should be 9-14Volts.

Throttle should be in a closed position.

2. Vehicle Connection
1. Locate vehicle's DLC socket: The DLC (Diagnostic Link
Connector) is typically a standard 16-pin connector where
diagnostic code readers interface with a vehicle's on-board
computer. It is usually located 12 inches from the center of
the steering wheel, under or around the driver's side for
most vehicles.
If the DLC cannot be found, refer to the vehicle's service
manual for the location.
DLC Location
2. Connect the diagnostic cable into the vehicle's DLC
socket.
