1 - INTRODUCTION
The timered power receiver ERONE 2000W is a radio receiver
which can drive directly a resistive load ( es. for lighting) with max
power of 2000 W. The operating frequency and the coding system
are different, depending upon the model.
The following table summarises the range of Erone radio
receivers, pointing out series, frequency and coding system:
SERIES TYPE
ERONE433 SEL 2641R433PT
ERONE30(DP/SL) SEL 39R30PT
ERONE433DP SEL 39R433PT
Depending upon the frequency and the coding, the receiver
operates with different transmitters ERONE, according to the
following table:
Receiver Type Usable transmitter
SEL 2641 R433PT S2TR2641E2/E4
SETR2641AM2
SETR2641-TM
SEL 39 R433PT SETDS39433 E2/E4
SEL39 R30PT SETL 39E2/E4
SETD 39E2/E4

2 - TECHNICAL SPECIFICATIONS

Type SEL 2641R433-PT / SEL39R433-PT
Receiver type
Carrier frequency
Local oscillator frequency
Modulation
Input load
Intermediate frequency
Input sensitivity
Local oscillator emissions
Power voltage
Load maximum power
Temporization time
Memory capacity
Operating temperature
IP grade
Weight
Overall dimensions
Type
Receiver type
Carrier frequency
Local oscillator frequency
Modulation
Input load
Intermediate frequency
Input sensitivity
Local oscillator emissions
Power voltage
Motor maximum power
Temporization time
Memory capacity
Operating temperature
IP grade
Weight
Overall dimensions
ENGLISH
FREQUENCY CODING
433.92 MHz Rolling code
30.875 MHz Dip/Self learning
433.92 MHz Dip-switch
Superheterodyne
433,92 MHz
6,6128 MHz
AM/ASK
50 Ohm
10,7 MHz
-115 dBm
< -57 dBm
230 Vac
2000 W
10 sec - 16, 10min.
85 / 100
-20°/+70°C
IP44
380 gr.
140 x 115 x 52 mm
SEL39R30-P4
Superheterodyne
30,875 MHz
30,420 KHz
AM/ASK
50 Ohm
455 KHz
-115 dBm
< -57 dBm
230 Vac
2000 W
10 sec - 16, 10min.
100
-20°/+70°C
IP44
380 gr.
140 x 115 x 52 mm
3 - FUNCTIONALITY
Operating Modes
The receiver can switch ON and OFF a resistive load ( for lighting
i.e.) with a maximum power of 2KW
The operating modes are as follows:
ON / OFF
One pulse switches on the light, the next pulse switches it off.
Timered
One pulse switches on the light. The switching off is automatic,
with a programmable delay adjustable from 10 Sec up to
16h10min by means of an 8 way dip-switch.
During the delay it is possible to switch off the light by means of a
radio transmitter as well.
It is also possible to connect an external push-button (N.O.) or a
key-contact as radiocontrol completion.
The memory capacity is 85 or 100 transmitters.

4 - INSTALLATION

Positioning
The local choice is very impotant for the best result of the installation.
The following conditions have to be followed:
- Fix the radioprogrammer far from the interference sources as
informatic systems, alarm systems or other radio emissions.
- The distance between 2 receivers should be greater of 1.5 mt.
Fixing
Remove the cover of the receiver; fix the box in each corner by
using the screws and the plugs supplied.
Connections

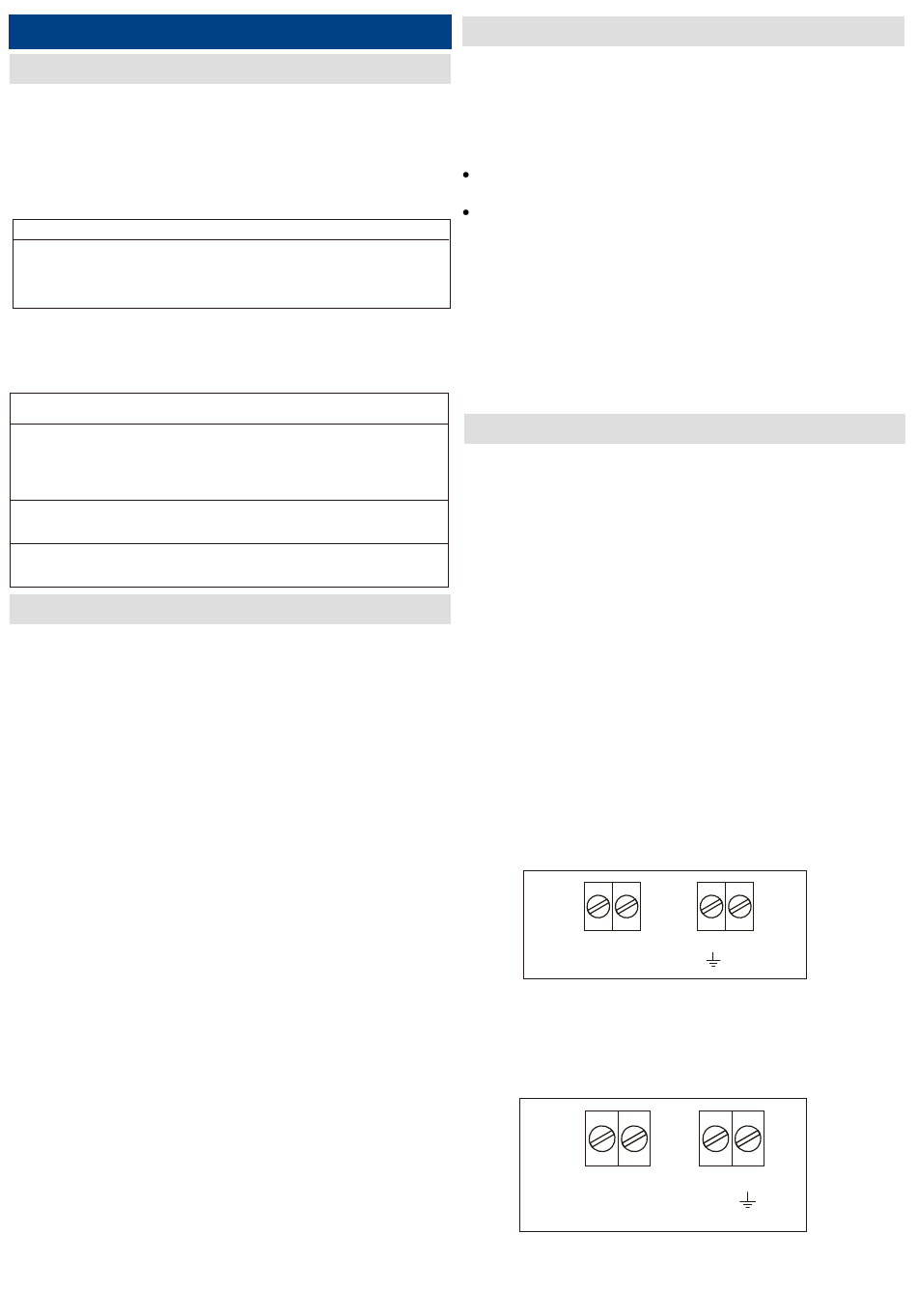

1- Connect the power supply (230 Vac) to the terminal blocks (fig.
10):
terminal 1 = PH phase
terminal 2 = N neutral
terminal 5 = earth
1 2
Ph N
2 - Connect the load to the terminal blocks (fig. 11):
terminal 3 = N neutral
terminal 4 = Ph Phase
terminal 6 = Earth
3 4
N Ph
Fig.10
6
5
Fig. 11
6
5
