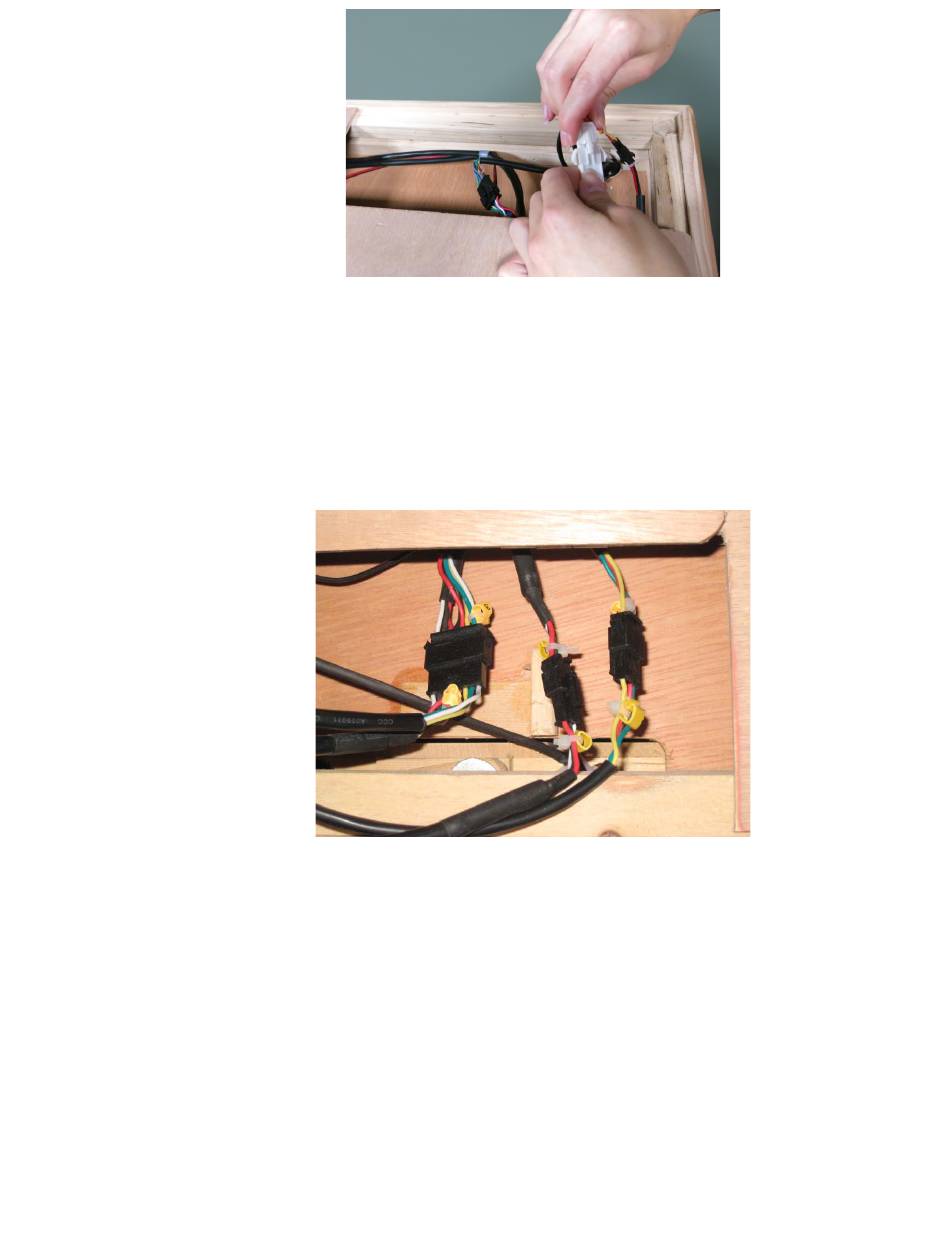

Electrical Connections (inside the Ceiling panel-rear left side):
•
Near the Touch Screen harness in Ceiling connect Left Wall wire #3 to Ceiling wire #3.
•
Connect Left Wall wire #7 to the Ceiling wire #7.
•
Connect Left Wall wire F to Ceiling wire F.
•
Connect Left Wall wire E to Ceiling wire E.
Sauna Room 230 Volt AC Power Cord:
• Plug the Sauna room power cord into the 230 VAC 10 amp wall receptacle as noted in page 3
Note: It is important that the sauna be plugged into a dedicated outlet of the correct rating. Plugging your
sauna into a shared circuit through can cause poor performance, circuit breaker tripping, or overheating
of the circuit.
