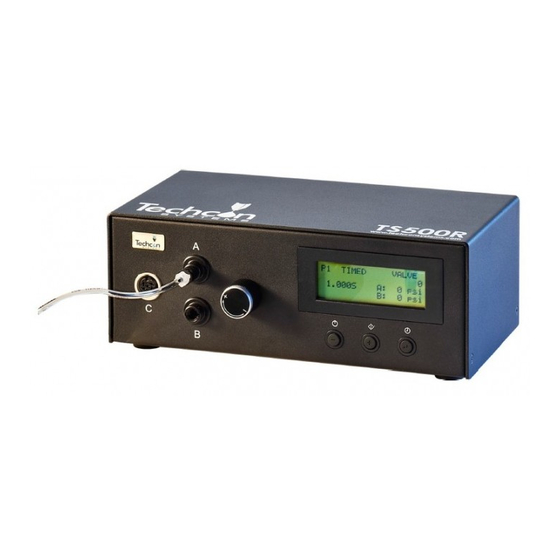

Techcom TS500R Bedienungsanleitung

TECHCON SYSTEMS
TS500R
MULTI-PURPOSE
DIGITAL CONTROLLER
User Guide
For English, German, French, Italian, Spanish
TECHCON SYSTEMS TECHCON SYSTEMS
TS500R TS500R
DIGITALES CONTRÔLEUR
MEHRZWECK- NUMÉRIQUE
KONTROLLIERGERÄT POLYVALENT
Benutzerhandbuch Guide d'utilisation
Copyright © OK International
TECHCON SYSTEMS TECHCON SYSTEMS
TS500R TS500R
CENTRALINA DI CONTROLADOR
CONTROLLO DIGITAL
DIGITALE MULTIPROPÓSITO
MULTIUSO Guía del usuario
Manuale d'uso
CONTENTS
1. Safety ........................................................................... 2
2. Symbol Definitions ........................................................ 3
3. Specifications .................................................................. 3
4. Features ....................................................................... 4
5. Setup Instructions
5.1 To Control Pneumatic Valve ......................................... 4
5.2 To Control Spray Valve ............................................... 6
5.3 To Control TS5000 Rotary Pump ................................... 8
5.4 To Control TS5000 Rotary Pump with Encoder Motor........... 10
5.5 Cycle Counter .......................................................... 10
5.6 To Change Pressure Unit Display.................................... 11
5.7 Low Pressure Setting .................................................. 11
6. Troubleshooting ............................................................. 11
7. Maintenance .................................................................. 12
8. Spare Parts and Accessories ............................................... 12
9. Warranty ....................................................................... 12
10. I/O Configuration and End of Cycle Switch
SAFETY
1.1 Intended Use:
WARNING: Use of this equipment in ways other than those described in this User
Guide may result in injury to persons or damage to property. Use this equipment
only as described in this User Guide.
OK International cannot be responsible for injuries or damages resulting from
unintended applications of its equipment. Unintended uses may result form taking
the following actions:
• Making changes to equipment that has not been recommended in the User
Guide
• Using incompatible or damaged replacement parts
• Using unapproved accessories or auxiliary equipment
1.2 Safety Precautions:
• Do not operate this unit in excess of maximum ratings/settings
• Always wear appropriate personal protective clothing or apparel
• Use only the following power adaptor models: PSA15R-240P(ZJ)
• The fluid being dispensed may be toxic and/or hazardous. Refer to Material
Safety Data Sheet for proper handling and safety precautions
• Do not smoke or use open flame when flammable materials are being dispensed
• This equipment is for indoor use only
Page Number
............................ 12
2
