English - Cyberoam NetGenie Soho NG11VO Schnellstartanleitung

Section 1 Know Your NetGenie
Unboxing Your New NetGenie...
Congratulations on your purchase of NetGenie Wireless VDSL2/ADSL2+
Integrated Security appliance. After unboxing NetGenie, please ensure
that you have all these components:
1. NetGenie Wireless Base Unit - NG11VO
2. Two (2) detachable Wi-Fi Antennas
3. RJ-45 Ethernet Cable
4. Telephone Cable i.e. RJ-11 Cable
5. Multi-Country Power Adapter
6. External Splitter
7. USB Broadband Extension Cable
8. Quick Start Guide
Please contact your vendor immediately if you find anything missing.

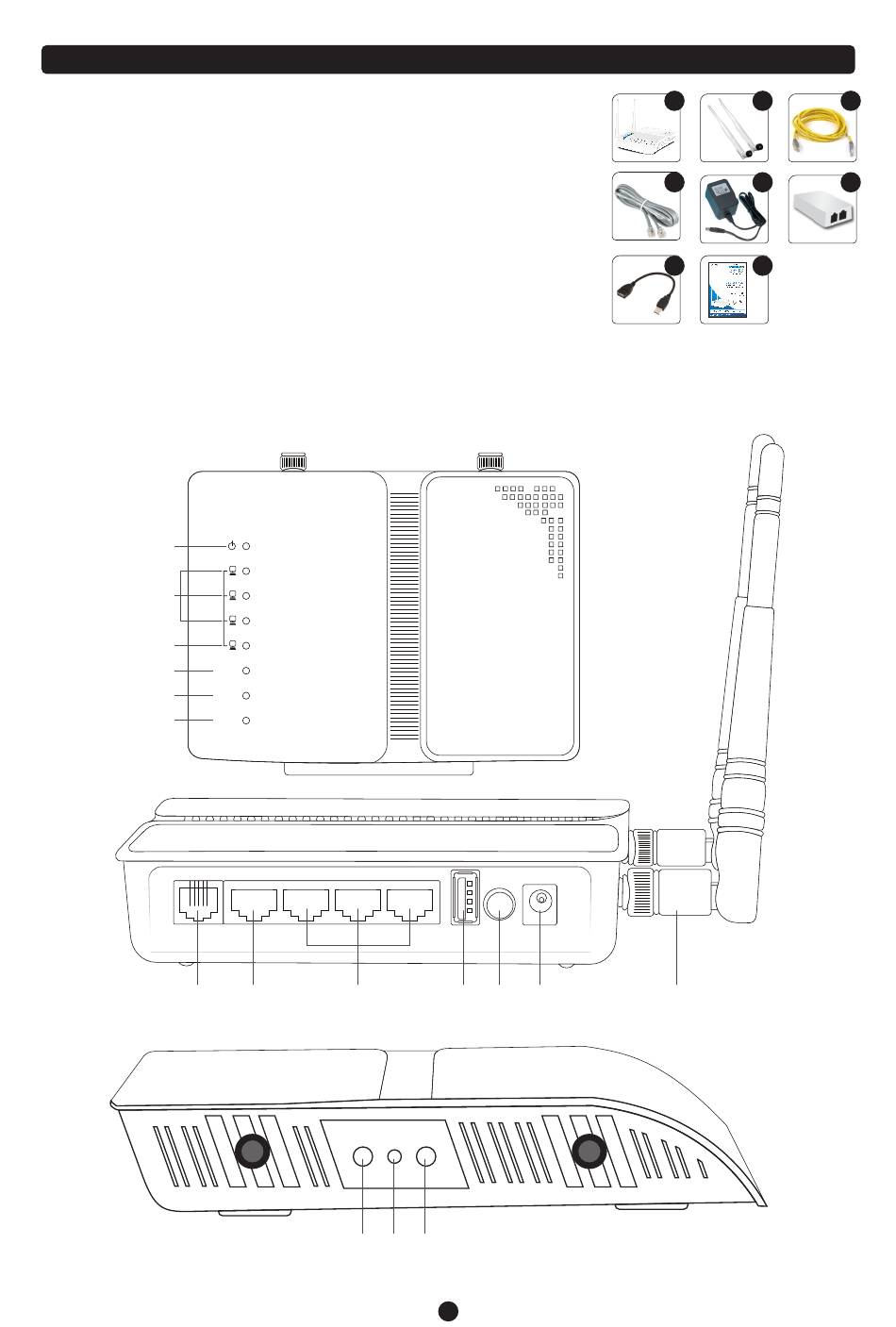

NetGenie: The Appliance
Power LED
LAN-Your Computer
Connectivity LED
LAN / WAN-Internet
Connectivity LED
Wireless (Wi-Fi)
Connectivity LED
DSL LED
Internet
Connectivity LED
Connect Your
RJ-11 / Telephone
Line here
1
2
3
4
WLAN
DSL
INET
Connect Your LAN Connect Your
/ Direct Internet PC / LAN here
Cable i.e. RJ-45
(WAN) here
Wi-Fi Reset
On / Off Button
Switch
3G USB Power Power
Modem On / Off Adapter
Port Switch Jack
WPS
On / Off
Switch
2 1
1 2
4 5
7 8
Wi-Fi Antennas
3
6
