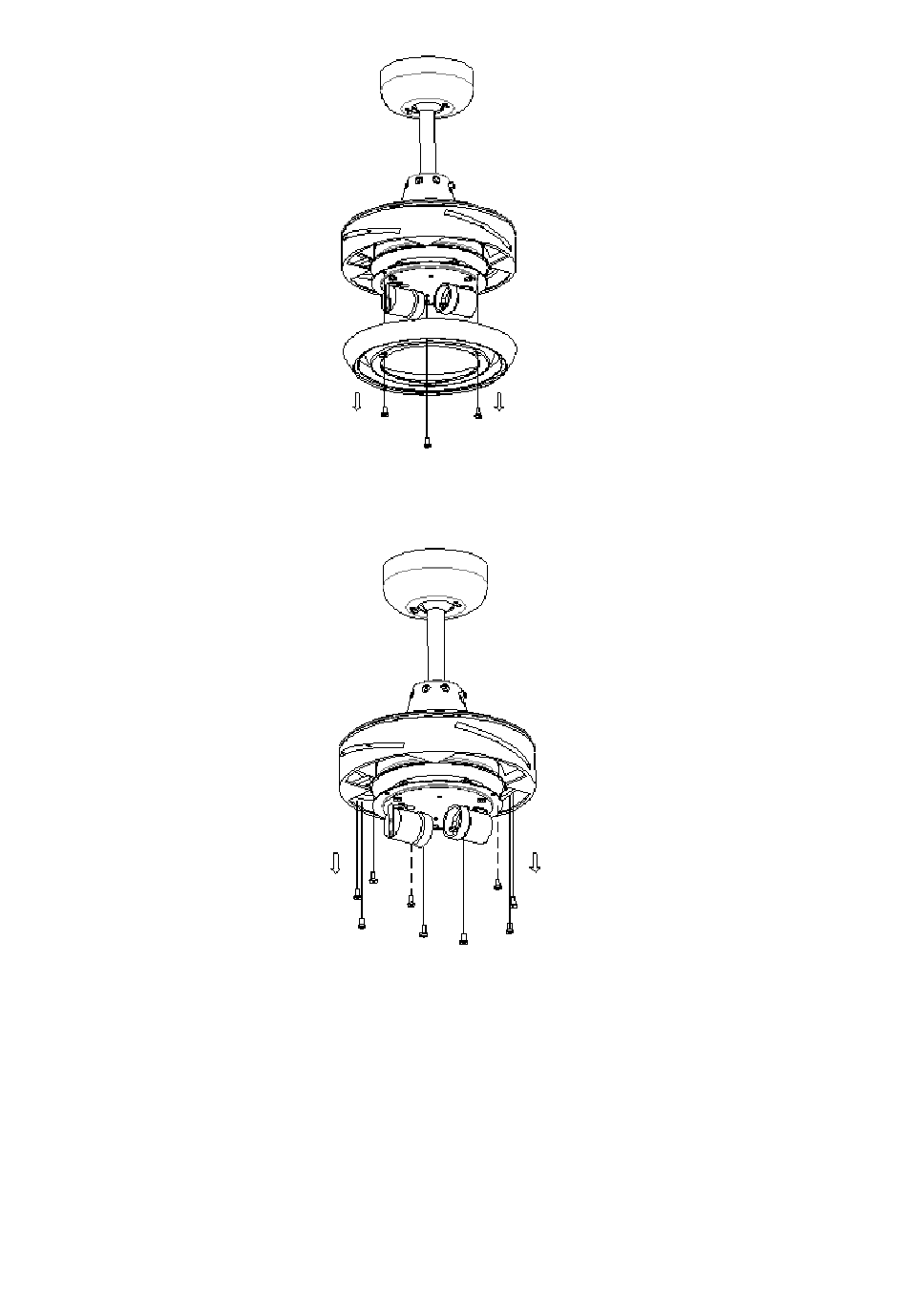

2. Remove the screws from the light plate and remove the light plate. Fig.4
Fig.4
3. Before installing the blades, remove the blades screws that was locked to motor in advance. Fig.5
Fig.5
4. Insert the blades through the side slot of motor and align with the 3 holes. If the holes do not align, the
blade is upside down. The blade should fit snugly and the screws should slot in vertical/perpendicular with
the blade screw holes.
5. Secure the blades with 3 blade screws, and ensure that the 3 blade screws are tightened at the same time.
Do not tighten on screws first, and do not over tighten the screws as this can damage the blades. Repeat
this process for all blades. Fig.6
3
