BATTERY INSTALLATION/REMOVAL
THE TLR-VIR II MUST BE REMOVED FROM THE FIREARM BEFORE
®
THE BATTERY COMPARTMENT CAN BE OPENED OR CLOSED.

SWITCH OPERATION

The paddle switch located on rear of the TLR-VIR
activation of selected illumination source. The mode switch is located on the underside of the
body selects either visible illumination, IR illumination/IR laser or Safe Off. The windage screw
bushing serves as an IR tactile indicator corresponding to the mode switch in the IR position.
Constant On
OFF
Momentary On

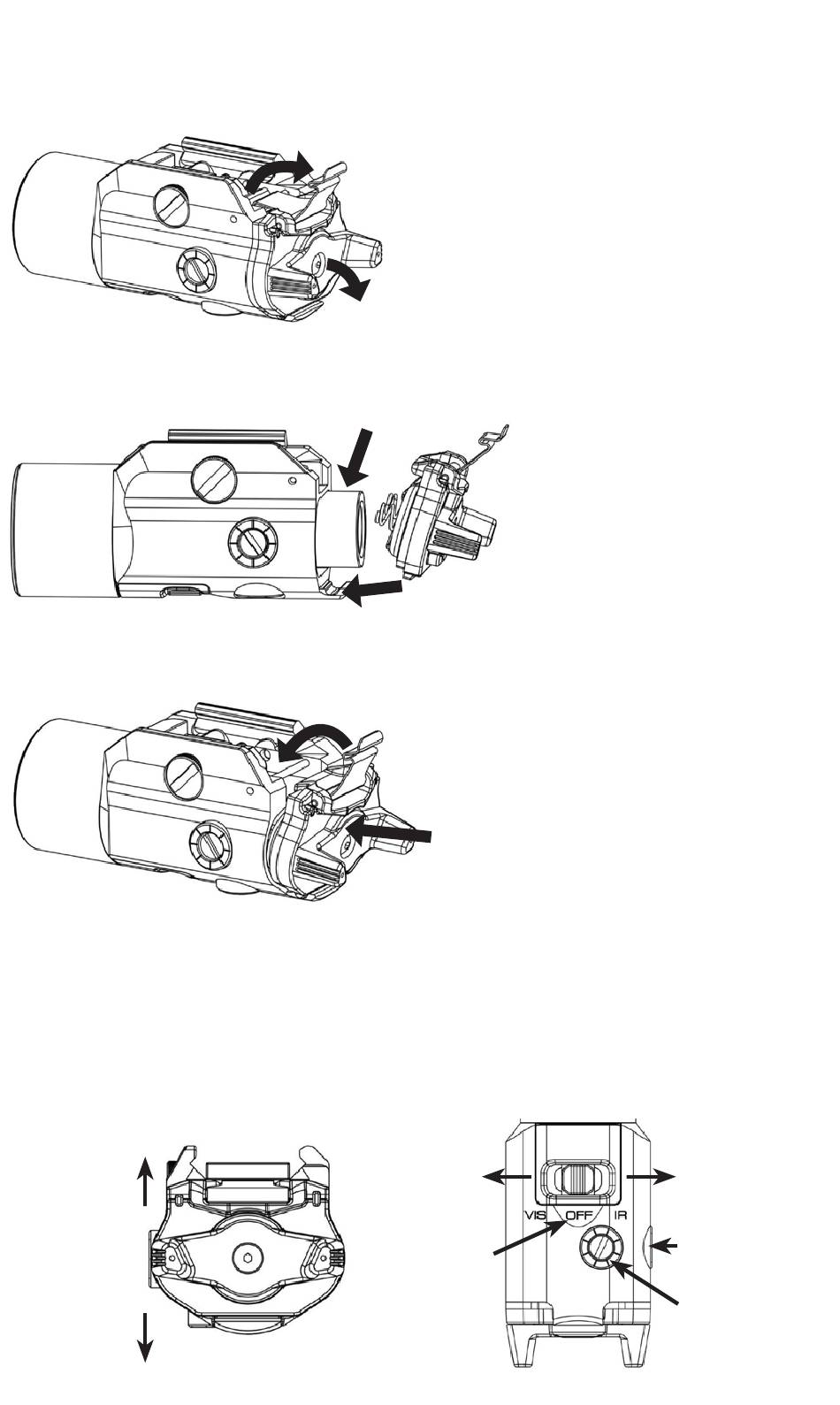

1- Unlock Latch (use flat blade or shell casing to release latch)
2- Swing Door Open
3- Replace Battery (Positive in first)
4- Insert Tab into Slot to Close Door
5- Push Door Closed (apply force to door)
6- Lock Latch (snap latch over pin)
®
Visible
Illumination
Safe OFF
II provides momentary or constant on
Infrared (IR)
Illumination/Laser
IR Tactile Indicator
(Windage Screw)
Elevation Screw
