1. Introduction & Specifications
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and contact your dealer.
Connections
DVR
Monitor
Output Resolution
Power Consumption
Power Supply
Dimensions
Analogue non-interlaced RGB output, NTSC/PAL system auto detection
2. Installation
For more info concerning this product, please visit our website www.velleman.eu.
The information in this manual is subject to change without prior notice.
VASMON2
VASMON2 – VIDEO TO VGA CONVERTOR
monitor out
D-sub
up to 1024 x 768 @ 60Hz
2W
5VDC/500mA adapter (incl.)
87 x 64 x 24mm

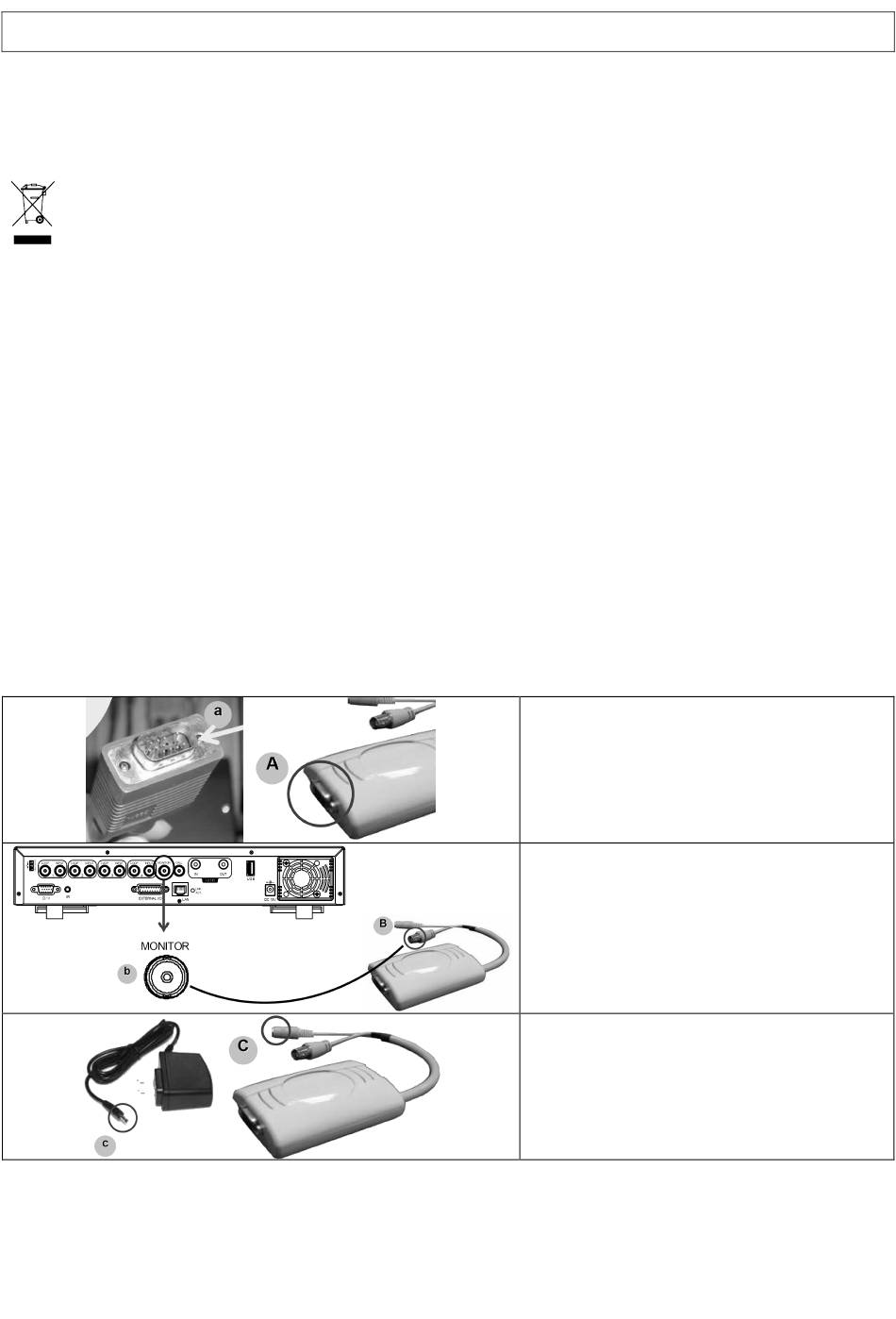

Connect the VGA connector (a) to the D-sub
connector (A) of the VASMON2.
Connect the RCA plug of the VASMON2 (B)
with the RCA output (b) of the DVR.
Connect the regulated power adapter (c) to the
VASMON2 (C).
- 3 -
VELLEMAN
