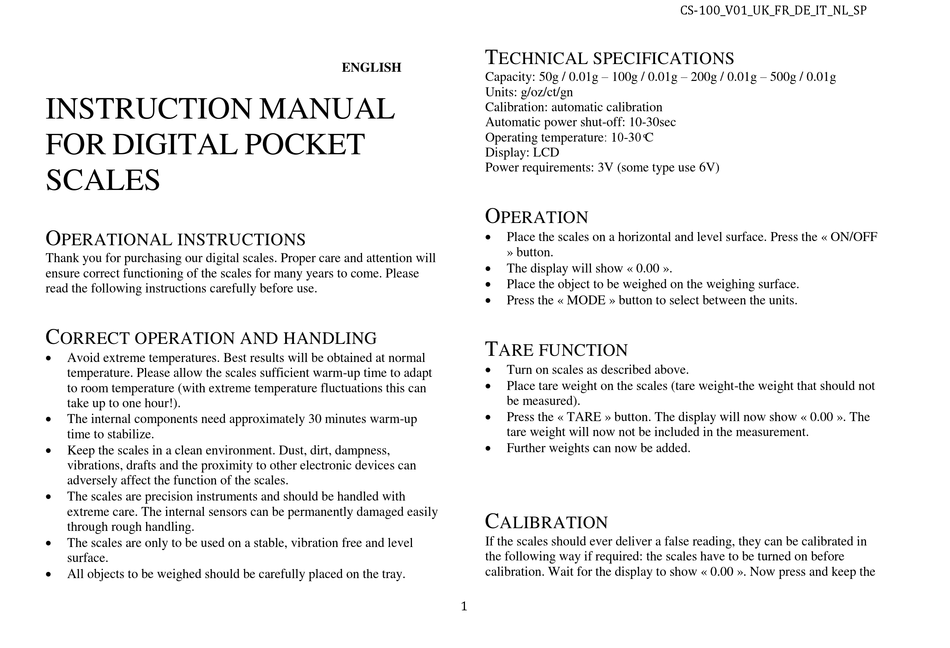

INSTRUCTION MANUAL
FOR DIGITAL POCKET
SCALES
O
PERATIONAL INSTRUCTIONS
Thank you for purchasing our digital scales. Proper care and attention will
ensure correct functioning of the scales for many years to come. Please
read the following instructions carefully before use.
C
ORRECT OPERATION AND HANDLING

Avoid extreme temperatures. Best results will be obtained at normal
temperature. Please allow the scales sufficient warm-up time to adapt
to room temperature (with extreme temperature fluctuations this can
take up to one hour!).

The internal components need approximately 30 minutes warm-up
time to stabilize.

Keep the scales in a clean environment. Dust, dirt, dampness,
vibrations, drafts and the proximity to other electronic devices can
adversely affect the function of the scales.

The scales are precision instruments and should be handled with
extreme care. The internal sensors can be permanently damaged easily
through rough handling.

The scales are only to be used on a stable, vibration free and level
surface.

All objects to be weighed should be carefully placed on the tray.
T
ECHNICAL SPECIFICATIONS
ENGLISH
Capacity: 50g / 0.01g – 100g / 0.01g – 200g / 0.01g – 500g / 0.01g
Units: g/oz/ct/gn
Calibration: automatic calibration
Automatic power shut-off: 10-30sec
Operating temperature
Display: LCD
Power requirements: 3V (some type use 6V)
O
PERATION

Place the scales on a horizontal and level surface. Press the « ON/OFF
» button.

The display will show « 0.00 ».

Place the object to be weighed on the weighing surface.

Press the « MODE » button to select between the units.
T
ARE FUNCTION

Turn on scales as described above.

Place tare weight on the scales (tare weight-the weight that should not
be measured).

Press the « TARE » button. The display will now show « 0.00 ». The
tare weight will now not be included in the measurement.

Further weights can now be added.
C
ALIBRATION
If the scales should ever deliver a false reading, they can be calibrated in
the following way if required: the scales have to be turned on before
calibration. Wait for the display to show « 0.00 ». Now press and keep the
1
