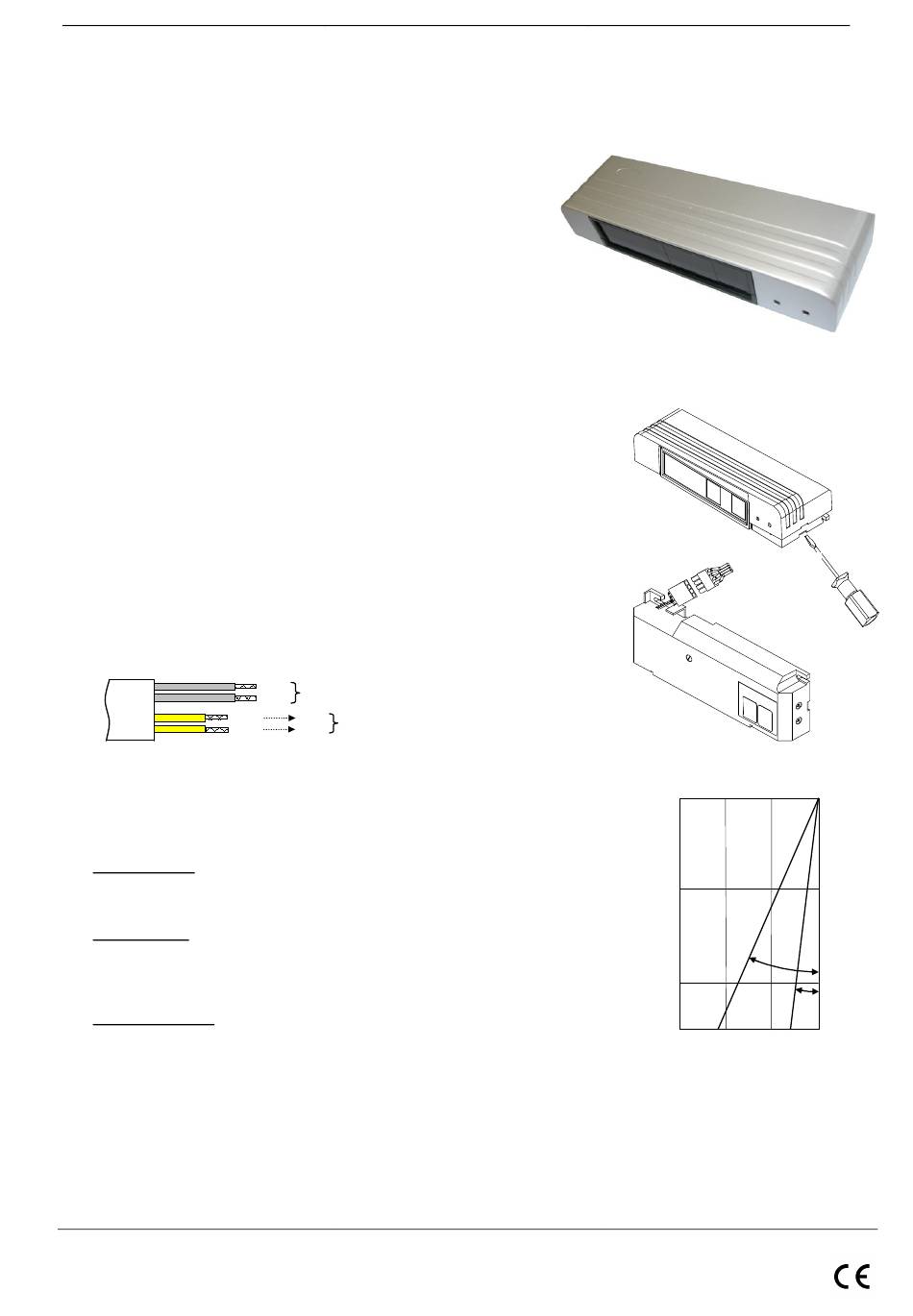

GENERAL DESCRIPTION
The QK-RADAR active infrared movement detector has been designed to control the opening of automatic doors. It can
detect movement over a surface area from 1.5 to 2.2 square metres thanks to the possibility of adjusting the vertical
position of the detector with the envisaged trimmer.
2.
MAIN SPECIFICATIONS
Power supply
Absorption
IP protection class
Capacity of relay contact
Available output contact
Relay release time
Vertical adjustment
Detection area
Operating temperature
Dimensions / weight
3.
LIST OF PARTS IN THE PACKAGE
N° 1 QK-RADAR
N° 1 INSTRUCTION SHEET
N° 1 SCREWS KIT FOR ASSEMBLY
N° 1 CONNECTION CABLE (2 M)
4.
ASSEMBLY INSTRUCTIONS
1:
Remove the plastic cover using
a screwdriver and lifting upwards and outwards (see Figure 1).
2:
Using the "drilling template" as a guide,
drill the holes for the fixing screws.
3:
Use the screws to fix the detector to the supporting surface.
Pass the cable through the relevant slot and plug it into
the connector (see Figure 2).
5.
CONNECTIONS
6.
ADJUSTMENTS
The following parameters can be changed:
Detection angle
•
Detection area
•
Relay release time
•
Detection angle
It is possible to adjust the detection angle from a minimum of 5° to a maximum of
24° (Figure 3, side view), with screw A (Figure 4), on the top part of the detector.
Detection area
It is possible to adjust the detection area using the 'VOL' trimmer (B, Figure 4) on
the right side of the detector. It is also possible to limit the area by applying the
stickers supplied on the sensor to hide zones 1 and 3 as shown in the Figure 4. The
IR emission is modified as shown in Figure 5 (front view)
Relay release time
The release time of the relay can be adjusted with the 'TIME' trimmer (C, Figure 4)
on the right side of the detector.
www.quikoitaly.com
12-24 V AC/DC (grey wires)
250 mA max.
IP 45
0.5 A @ 24V
N.O. (yellow wires)
adjustable from 2 to 7 seconds
from 5° to 24° (adjustable)
adjustable with trimmer
-20 to +55 ° C
210 x 73 x 33 mm / 380 g
grey
Power supply
grey
yellow
COM
Relay
yellow
N.O.
