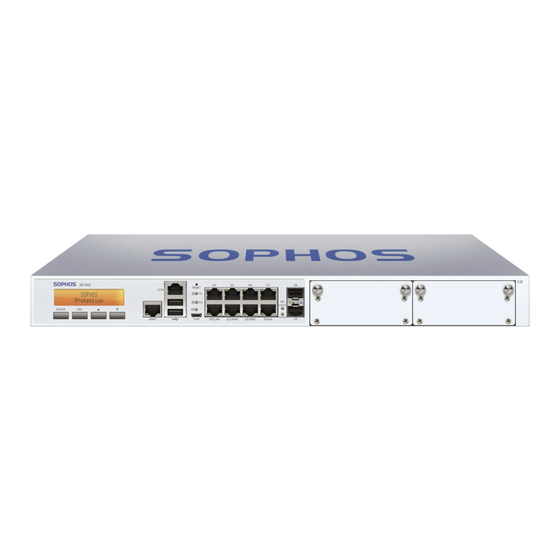

Sophos SG 210 Montageanleitung

Sliding Rails Mounting Instructions
SG/XG 210
Rev.3
The SG/XG series slide rails are designed and built for 1U and 2U chassis and not recommended for 3U
applications.
The rails fit into EIA racks with 5/8" pitch and square holes. Please use the supplied round-hole rack plates in
order to mount them on a rack with round holes.

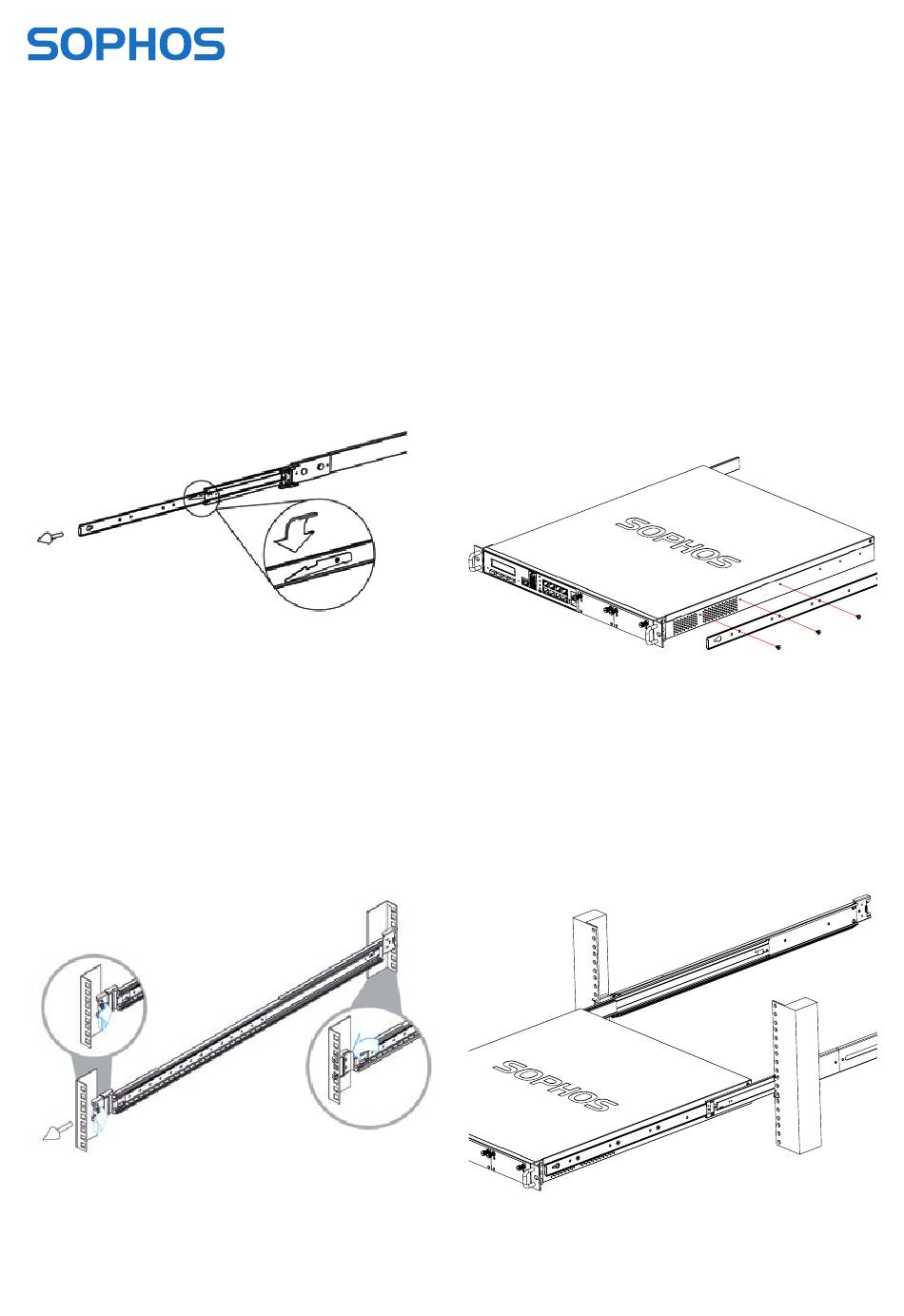

Step 1: Remove the appliance rail
Pull the slide open. Then press the trigger down as
shown on the drawing, and pull the inner member
(appliance rail) out.
Pull chassis (inner)
member out
Step 3: Attach the rack rails to the rack
Disengage the yellow safety lock before you attach
the rack rails (outer member) to the rack. Insert the
stag of each rack rail into the upper and lower square
holes on the rack from the inner side of the front and
rear mounting posts. Push the safety lock forward to
secure the rack rails. From the front and rear of the
rack, use a round-head screw to secure the rack rail to
the rack.
Release safety lock
before mounting
Push the safety lock forward to secure
United Kingdom and Worldwide Sales
Tel: +44 (0)8447 671131
Email: sales@sophos.com
© Copyright 2019. Sophos Ltd. All rights reserved.
Sophos is the registered trademark of Sophos Ltd.
, SG/XG 230/310/330/ 430/450
Press the
trigger down
to release
North American Sales
Toll Free: 1-866-866-2802
Email: nasales@sophos.com
Step 2: Attach the appliance rail to the chassis
Mount the appliance rails on each side of the
appliance by using at least 3 M4 screws for each
side. The appliance rail for the right-side is marked
RH. The appliance rail for the left-side is marked LH.
Step 4: Mount the appliance into the rack
Move the appliance into the rack rails until the sliding
rails click. It is important to check if the ball retainer is
in fully open position before installing the chassis! It
might cause catastrophic damage to the chassis if ball
retainer is not in fully open position while mounting
the chassis. While you are pushing chassis back to
the cabinet, you need to release the slide from locking
position by pressing the trigger down.
Australia and New Zealand Sales
Tel: +61 2 9409 9100
Email: sales@sophos.com.au
Rev. 2
Asia Sales
Tel: +65 62244168
Email: salesasia@sophos.com
19-05-08 (DD)
