axing premium-line ISW 9-43 Schnellstartanleitung Seite 4

Field of application:
The product is intended to decode digital audio & video channels from
transport streams and encode them to HDMI.
Use the devices only as specified in the operating instructions. If the devices
are used for other applications, no guarantee is given!
Use the accessories recommended by the manufacturer only.
Scope of delivery:
1 × ISW 9-43 Set-Top Box
1 × Power adapter 12 V/1 A
1 × Programmable remote control unit
2 × AAA batteries
1 × Quick start guide
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com.

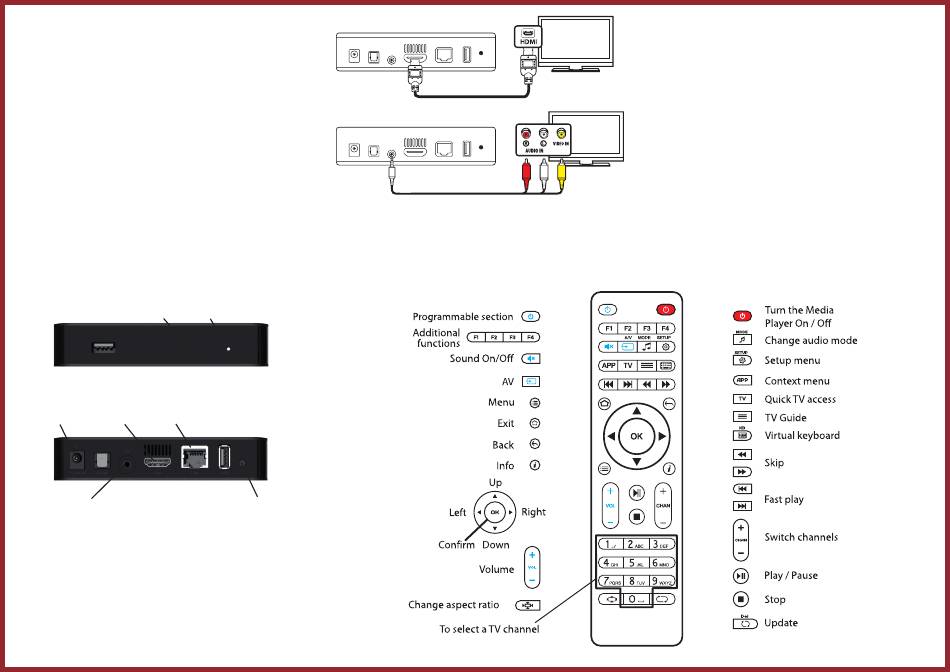

Display elements and connectors:
Photodiode
for RCU
Front
12V DC HDMI 1.4b Ethernet 100 Base-T
Rear
Composite A/V output (3.5 mm jack, 4-pin)
Location of the device:
 Only use the device indoors. Place the unit horizontally on a flat surface.
 Do not cover the device and keep the photodiode free for the remote
control.
Connecting with HDMI – best quality
Connecting with AUDIO/VIDEO Input
LED
Reset
Installation and connection:
 Switch off all the devices (TV, amplifier, etc.) and take the power supply
unit out of the socket before connecting or disconnecting any cable.
 Use a HDMI cable with length less than 3 m, to connect the ISW 9-43 to
the TV set. Alternativly use a 3,5 mm Jack to 3 RCA cable to connect the
ISW 9-43 to the analogue input of the TV set.
 Connect the Ethernet port of the device to the IPTV data source (e.g. via
a switch). Use 5/6 CLASS UTP Ethernet Cables.
 Connect the AC adapter to the 12V DC connector and plug the AC
adapter into a power outlet.
 Turn on the TV and switch to the input to which the ISW 9-43 is
connected.
After a few seconds the application start screen appears.
Programmable remote control unit:
 Insert the supplied AAA batteries into the battery compartment of the
red = right channel
remote control.
white = left channel
The remote control includes five programmable buttons
yellow = composite video
print colour), which you can configure for controlling other devices (TV set,
amplifier).
(marked with blue
