INSTALLATION GUIDE
ANALOG cLOck
2650-1504-00
Installation
1. Check that you have all parts required for installation.
2. Disconnect the negative (-) battery cable.

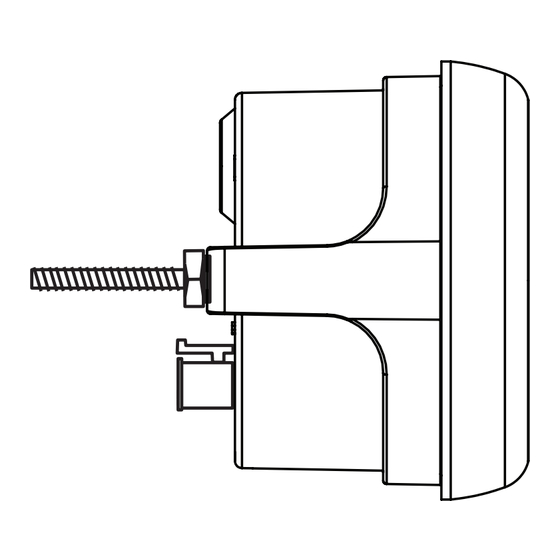

3. Gauge mounts in a 53 mm hole. Use supplied
bracket and nuts to secure to dash.
4. Attach black wire from harness to good engine ground.
5. Attach red wire from harness to a constant +12V terminal on
ignition switch or other +12V constant power source. Use an
un-switched power source.
6. Attach white wire to dash lighting or switchable
+12V light source to control gauge illumination.
7. Reconnect negative (-) battery cable.
cAUTION!
As a safety precaution, the +12V terminal
of this product should be fused before
connecting to 12V. We recommend using a 1
Amp, 3AG fast-acting type cartridge fuse.
Setting the Time
Use the two buttons on the face of the gauge to set the time.
The left button moves the hands counter clockwise. The right
button moves the hands clockwise.
A momentary press on either button moves the hands one
minute. After pressing and holding either button for a couple
seconds, the hands will begin moving at a much faster speed,
moving the minute hand one hour in three seconds.
STACK Ltd. warrants to the consumer that all STACK products will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that fail within
this 12 month warranty period will be repaired or replaced at STACK's option to the consumer, when it is determined by STACK Ltd. that the product failed due to defects in material or workmanship. This warranty
is limited to the repair or replacement of parts in the STACK instruments. In no event shall this warranty exceed the original purchase price of the STACK instruments nor shall STACK Ltd. be responsible for special,
incidental or consequential damages or costs incurred due to the failure of this product. Warranty claims to STACK must be transportation prepaid and accompanied with dated proof of purchase. This warranty applies
only to the original purchaser of product and is non-transferable. All implied warranties shall be limited in duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation,
accident, water damage, abuse, unauthorized repairs or alterations voids this warranty. STACK Ltd. disclaims any liability for consequential damages due to breach of any written or implied warranty on all products
manufactured by STACK.
© 2010 Stack Limited
WHITE
+12v DASH
LIGHTING
FUSE
(SEE CAUTION)
DO NOT HOOk TO ALTERNATOR
12 MONTH LIMITED WARRANTY
www.stackltd.com
Stack Ltd. Wedgwood Road Bicester OX26 4UL UK
T : +44 (0) 1869 240404
F: +44 (0) 1869 245500
E: sales@stackltd.com
RED
BLACK
UN-SWITCHED
+ 12V CONNECTION
Left Button
GB
GOOD
ENGINE
GROUND
Right Button
2650-1504-00A 4/23/10
