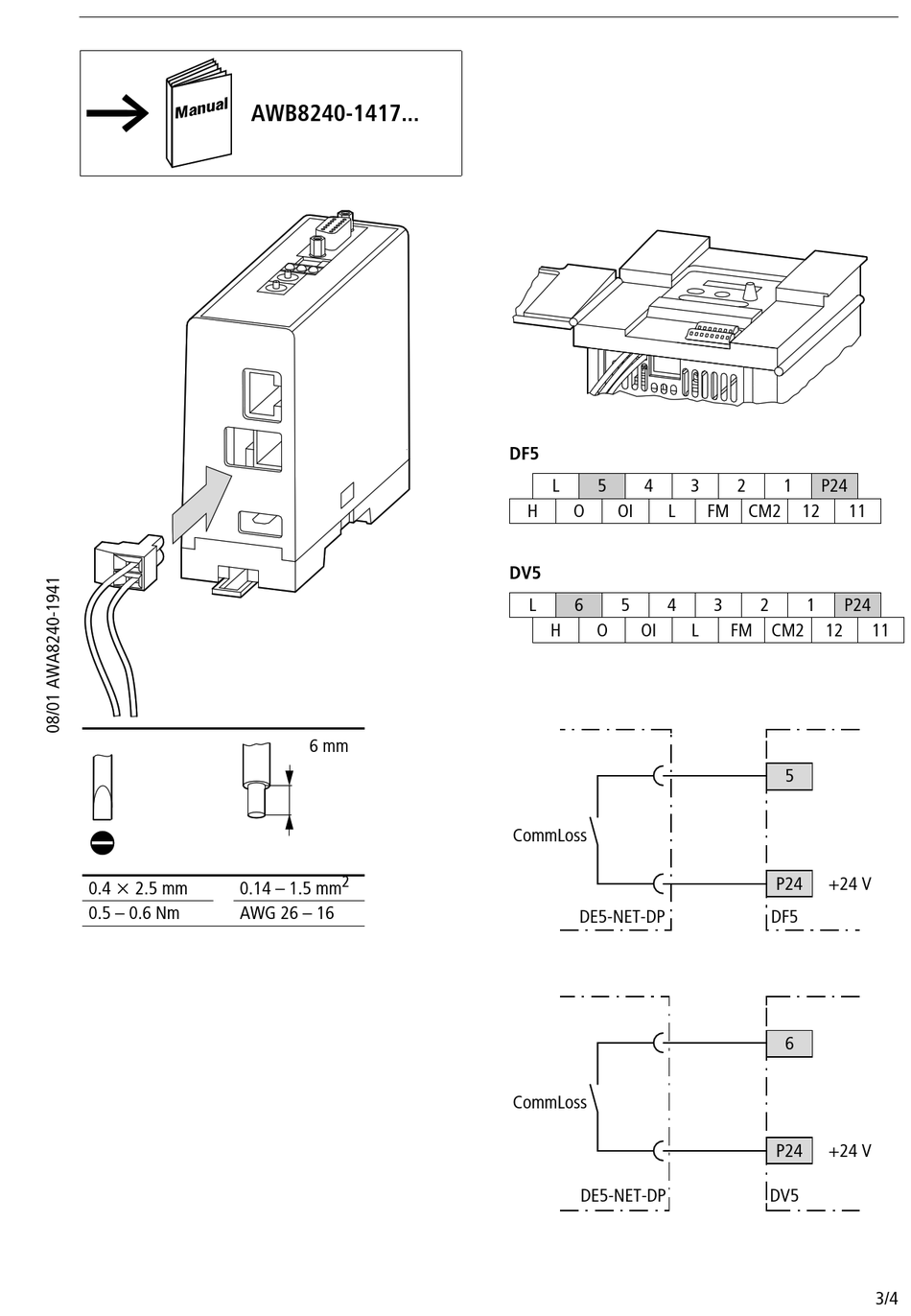

Moeller DE5-NET-DP Montageanweisung Seite 3

A A
A A
AWB8240-1417...
0.4 x 2.5 mm 0.14 – 1.5 mm
0.5 – 0.6 Nm AWG 26 – 16
6 mm
2
DF5
L 5 4
H O OI L
DV5
L 6 5 4
H O OI
CommLoss
DE5-NET-DP
CommLoss
DE5-NET-DP
3 2 1 P24
FM CM2 12 11
3 2 1 P24
L FM CM2 12
5
P24 +24 V
DF5
6
P24 +24 V
DV5
11
3/4
