USER'S MANUAL
Have Technical Questions?
If you have questions, or require technical
service, please contact our trained service
technicians at:
1-314-679-4200 ext. 4782
Monday - Friday 7:30 am to 4:15 pm CST
Visit our website at www.mityvac.com for
new products, catalogs and instructions for
product use.
Need Service Parts?
To order replacement or service parts, visit
us online at www.mityvacparts.com or call
toll free 1-800-992-9898.
SPECIFICATIONS
Reservoir Capacity:
Bleed Tube Length:
Evac Tube Length:
Working Pressure:
Air Consumption:
Vacuum
@ 30 psi (2.0 bar):
@ 60 psi (4.1 bar):
@90 psi (6.2 bar):
@150 psi (10.3 bar):
Fill Rate
@ 30 psi (2.0 bar):
@ 60 psi (4.1 bar):
@90 psi (6.2 bar):
@150 psi (10.3 bar):
APRIL - 2005
1.9 quarts
(1.8 liters)
72 in. (1830 cm)
48 in. (1220 cm)
60 to 150 psi
(4.1 to 10.3 bar)
4.3 scfm @ 90 psi
(2.0 l/s @ 6.2 bar)
6.5 in. hg (22 kpa)
16.5 in. hg
(56 kpa)
26.5 in. hg
(90 kpa)
27 in. hg (91 kpa)
24.5 oz/min
(725 ml/min.)
49.5 oz/min
(1460 ml/min.)
70.5 oz/min
(2095 ml/min.)
70.5 oz/min
(2095 ml/min.)

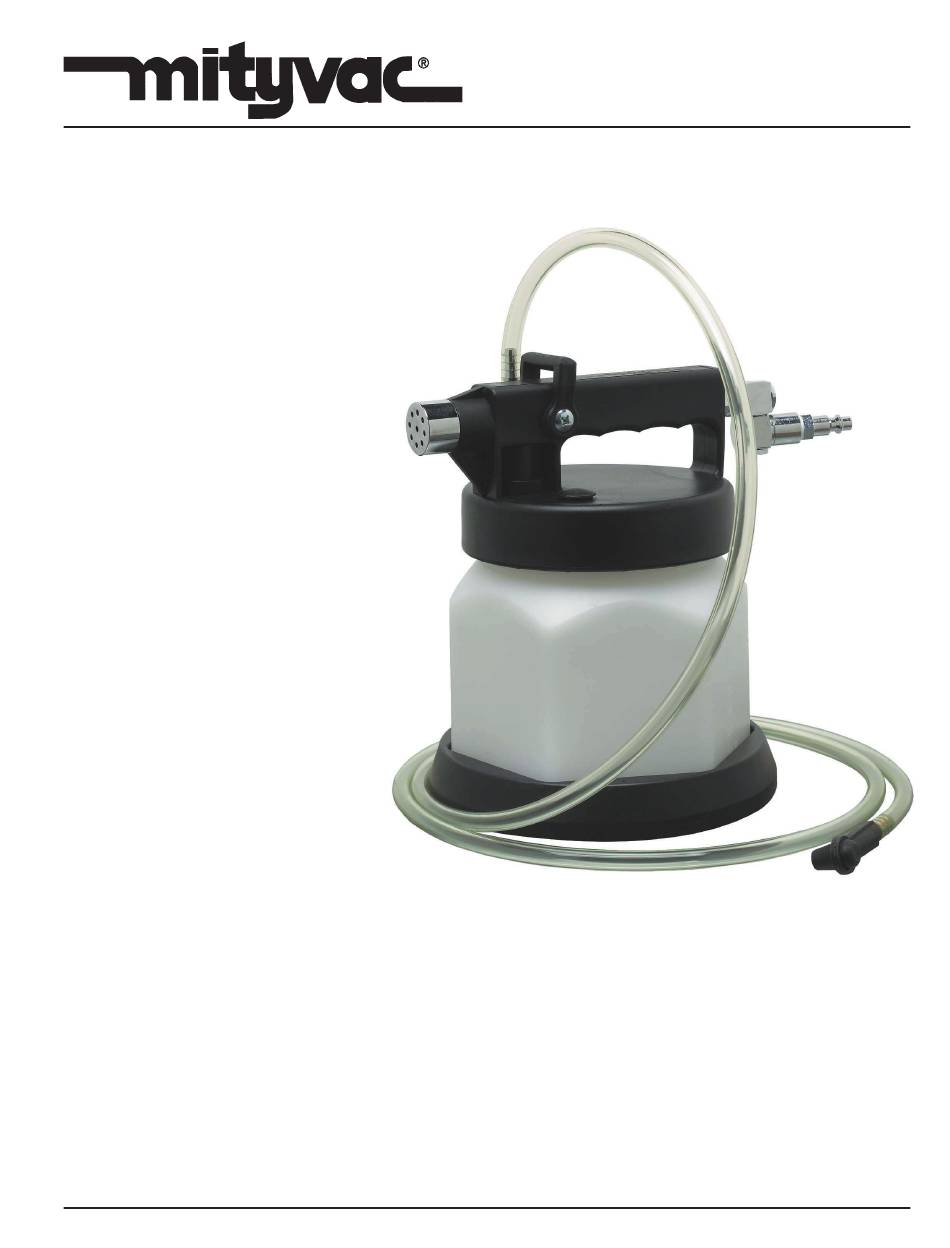

VACUUM BRAKE BLEEDER
Form 822844
MODEL MV6830
- MV26
Section
- 1B
Page
