RECOMMENDED APPLICATIONS

360° Models Only
Use only 24 volt cameras/housings with 360° model
pan/tilts.
The maximum power for heater/blower
combinations is 75 watts to prevent overloading the
slip ring. This load must be powered by pin 10,
(white feed-thru) and pin 11 (red feed-thru). See
Figure 2.
7

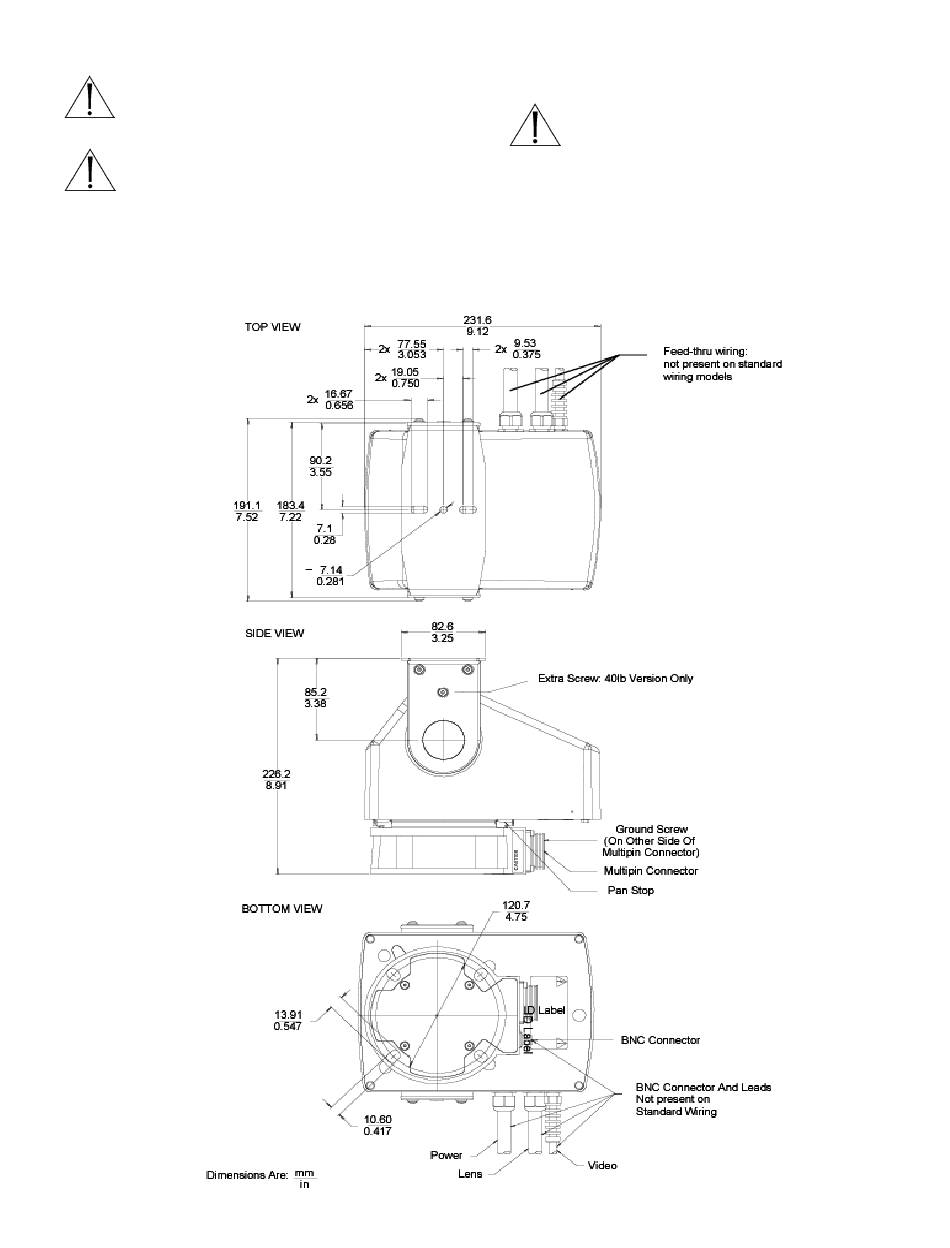

DIMENSIONAL OUTLINE

Feed-thru 24 Volt Models
To maintain cUL and TUV Approval, use only
24 volt cameras/housings.
Figure 9
