952985Manua.qxd
14/12/04
OPERATION MANUAL - ADASTRA 6 DISC CD CHANGER
(4)
(5)

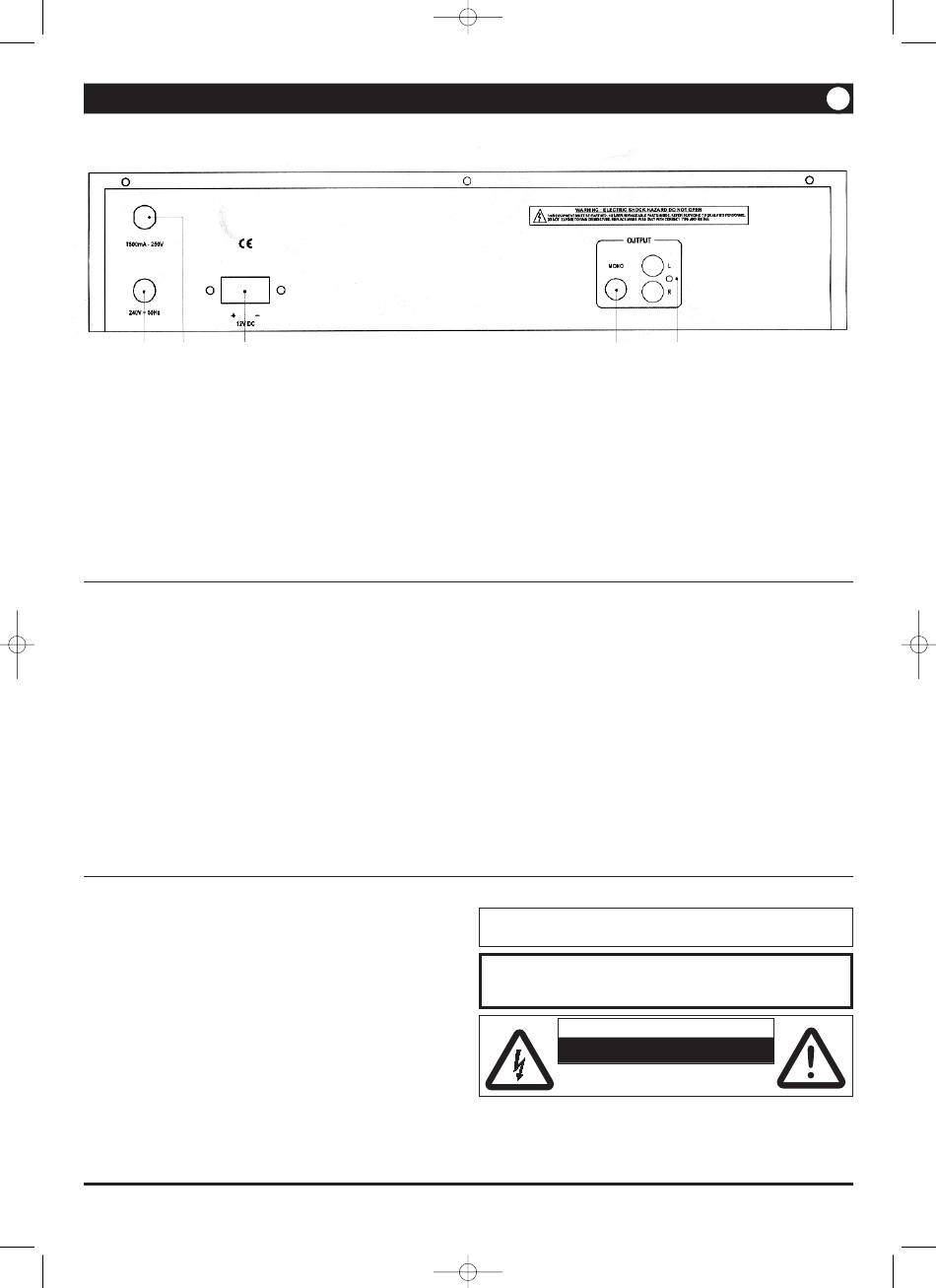

OUTPUT SECTION
1. LINE OUTPUT
Stereo unbalanced output. RCA phono
2. MONO OUTPUT
Unbalanced mono output. 6.3mm
TECHNICAL SPECIFICATION
CD SECTION
Type . . . . . . . . . . . . . . . . . . . . . . . . . .6CD changer magazine type
THD (1kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .< 0.2%
Signal to noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .> 85dB
Frequency response -3dB . . . . . . . . . . . . . . . . . . . . .20Hz - 20kHz
LINE OUTPUT (Mono/Stereo)
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0dBu
THD (1kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .< 0.2%
Signal to noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .> 85dB
Frequency response -3dB . . . . . . . . . . . . . . . . . . . . .20Hz - 20kHz
FOR SAFE AND EFFICIENT OPERATION
•
Select the installation of your unit carefully. Avoid placing it in direct
sunlight. Also avoid locations subject to vibration and excessive dust, heat,
cold or moisture. Keep away from sources of hum such as transformers or
motors.
• Do not use this compact disc player where there are extremes in temperature
(below 41°F /5°C or exceeding 95°F / 35°C)
• Do not open the cabinet as this might result in damage to the set or
electrical shock
• Be sure your hands are clean when handling discs. Never inset a disc which
has a crack on its surface.
• When disconnecting the power cord from the ac outlet, always grasp it by
the plug. Never pull the cord.
• Before moving the set, be sure to disconnect the power cord and all
connecting cables.
• To keep the laser pickup clean, do not forget to close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might
damage the finish. Use a clean, dry cloth.
• Keep this manual in a safe place for future reference.
9:58 am
Page 3
(3)
(2)
POWER SECTION
3. 2-way screw terminal for +12V external DC supply.
4. 3-core mains cord.
5. Mains fuse.
HEADPHONE OUTPUT
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5V in 33Ω
THD (1kHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .< 0.2%
Signal to noise ratio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .> 85dB
Frequency response -3dB . . . . . . . . . . . . . . . . . . . . .50Hz - 20kHz
SUPPLY
AC mains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .220V - 240V, 50Hz
External DC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+12V
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . .12Watt max
MECHANICAL
Size . . . . . . . . . . . . . . . . . . . . . . . . .482 x 256 x 88mm (w x d x h)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.3kg
Laser diode properties
Material: Ga-AL-AS
CAUTION
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
C A U T I O N
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR
CAUTION
• Before connection or disconnection of unit to or from an audio system, be
sure to switch off the power to each component
• If this unit interferes with tuner, switch off the unit during tuner operation.
3
(1)
Wavelength: 755 - 815nm (24°C)
Laser Output: Continuous Wave max. 0.5mW
GB
