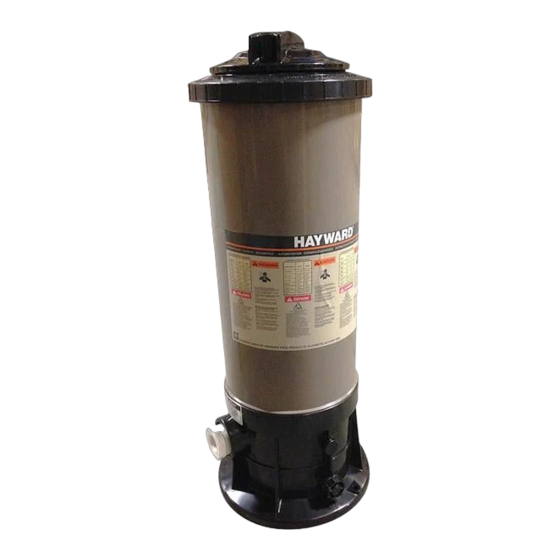

Hayward C250EXP Einbau- Und Betriebsanleitung

INSTALLATION GUIDE AND OPERATING INSTRUCTIONS
I. IMPORTANT SAFETY INSTRUCTIONS
This is the safety alert symbol. When you see this
symbol on your system or in this manual, look for one of
the following signal words and be alert to the potential for
personal injury.
DANGER
indicates an imminently hazardous
situation which, if not avoided, will result in death, serious
personal injury, or major property damage.
WARNING
WARNING
indicates a potentially hazardous
situation which, if not avoided, could result in death,
serious personal injury, or major property damage.
NOTICE
indicates special instructions not related to
hazards.
C C a a r r e e f f u u l l l l y y r r e e a a d d a a n n d d f f o o l l l l o o w w a a l l l l
i i n n t t h h i i s s I I n n s s t t a a l l l l a a t t i i o o n n G G u u i i d d e e a a n n d d o o n n e e q q u u i i p p m m e e n n t t . . K K e e e e p p
s s a a f f e e t t y y l l a a b b e e l l s s i i n n g g o o o o d d c c o o n n d d i i t t i i o o n n : : R R e e p p l l a a c c e e m m i i s s s s i i n n g g o o r r
d d a a m m a a g g e e d d s s a a f f e e t t y y l l a a b b e e l l s s . .
DANGER
• Use only 3"
Trichloro-S-Triazinetrione Chlorine tablets.
• Never use fast dissolving Trichloro-S-Triazinetrione
Chlorine tablets.
• Never mix chemicals as it may cause fire and/or an
explosion.
• Never mix Trichloro-S-Triazinetrione Chlorine tablets
with Calcium Hypochlorite, or with any other form of
concentrated chlorine or other chemicals. Fire and/or
explosion may result.
• Never add any other types of chlorine, pH adjusters,
shock treatments or algaecides through the skimmer.
If these products must be used, they should be added
directly into the pool water.
• Never isolate chlorine feeder with valves or other
devices.
HAYWARD
FOR CHLORINE APPLICATIONS
MODELS C250EXP/C500EXP
Safety Instructions
diameter slow dissolving
® CHEMICAL FEEDER
• Read and follow all Safety Instructions prior to operating
or servicing this chlorine feeder.
• To reduce the risk of injury, do not permit children to use
this product.
• Wear eye and skin protection while maintaining or
servicing this unit.
• Do not inhale fumes from the chlorinator or chemical
container.
• Chlorine feeder may be under pressure. Use caution
removing cover.
SAVE THESE INSTRUCTIONS
II. INSTALLATION
C250/C500EXP
A. Planning Installation
1. Read and follow all installation instructions
prior to installing your chlorine feeder. Refer to
Figure I.
2. Your C250/C500 automatic chlorine feeder is
designed for permanent installation. This unit
uses pressure differential to divert water through
the chlorinator (#4) into the return-to-pool piping
after the filter/heater.
3. The inlet connection (#3) should always be
made in the piping after the pump (#2) and
before the filter (#6).
4. The outlet connection (#5) should always be
made in the piping after the heater (#7) or filter
(#6) if no heater is present. If a heater is present
an in-line positive seal corrosive resistant check
valve should be installed to reduce backflow of
chlorine gas into the heater when system is shut
down. The outlet connection should be made
after the check valve (#5).
ISC250CFE
Rev.D
WARNING
