Produktbeschreibung / Product description Wandhalterung für Occhio air controller Montage selbstklebend, geschraubt oder auf Wanddose befestigt. Wall mount for Occhio air controller Mounting self-adhesive, screwed or fixed to the wall box.
Montage Wand halterung / Fitting the wall mount Wandhalterung an die Wand Hold the wall mount against the wall and turn it so that halten und so drehen, dass die Langlöcher die the slots are aligned as gewünschte Ausrichtung required and the arrow is haben und der Pfeil nach pointing upwards.
Seite 5
Montage geschraubt Screwed mounting Zwei Löcher ø 5 mm bohren, Drill two 5 mm diameter Dübel bündig einsetzen und holes, insert the wall so that Wandhalterung anschrauben. they lie flush and screw on the wall mount. Montage geklebt Die Klebestreifen auf der Adhesive mounting Rückseite der Wandhal- Attach the adhesive strips...
L 80 × B 80 × H 3 mm Material Aluminium und Kunststoff lackiert Entsorgung Bei örtlicher Entsorgungsstelle entsorgen. Die Wandhalterung für den Occhio air controller ist recyclebar; RoHS-konform. Nicht in den Hausmüll geben! Product designation wall mount for Occhio air controller Dimensions L 80 ×...
Seite 8
MA- 9 6670 Mont a geanl e i t u ng Wandhal t e rung Ai r Cont r ol l e r MA-96670 Montageanleitung Wandhalterung Air Controller 010040429569667010 010040429569667010...
Seite 9
Montage auf der Wanddose Mounting to the wall box Mit dem Occhio air controller An existing light switch can und der Wandhalterung kann be replaced by the Occhio ein bestehender Lichtschal- air controller and the wall ter ersetzt werden. Voraus- mount.
Seite 11
Die beiden Kabel, die zum The two wires leading to the Lichtschalter führten, müs- light switch must now be sen nun mit einer Klemme connected to a terminal. verbunden werden. The wall mount can then be screwed to the plastering Anschließend kann die Wandhalterung mit der box.
Seite 13
Montage cover Fitting the cover Cover auf die Wandhalterung Clip the cover onto the wall aufgeklipsen. mount. Die Wandhalterung ist nun The wall mount is now fully fertig montiert. assembled.
Seite 14

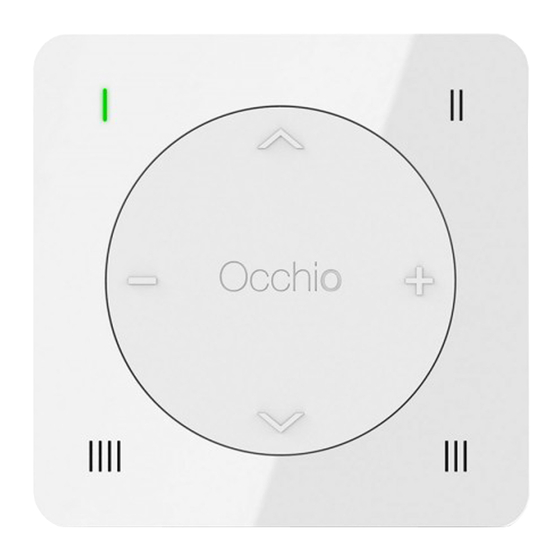

Nun kann der Occhio air The Occhio air controller can controller angebracht now be attached (is held in werden (wird magnetisch place magnetically). gehalten).
