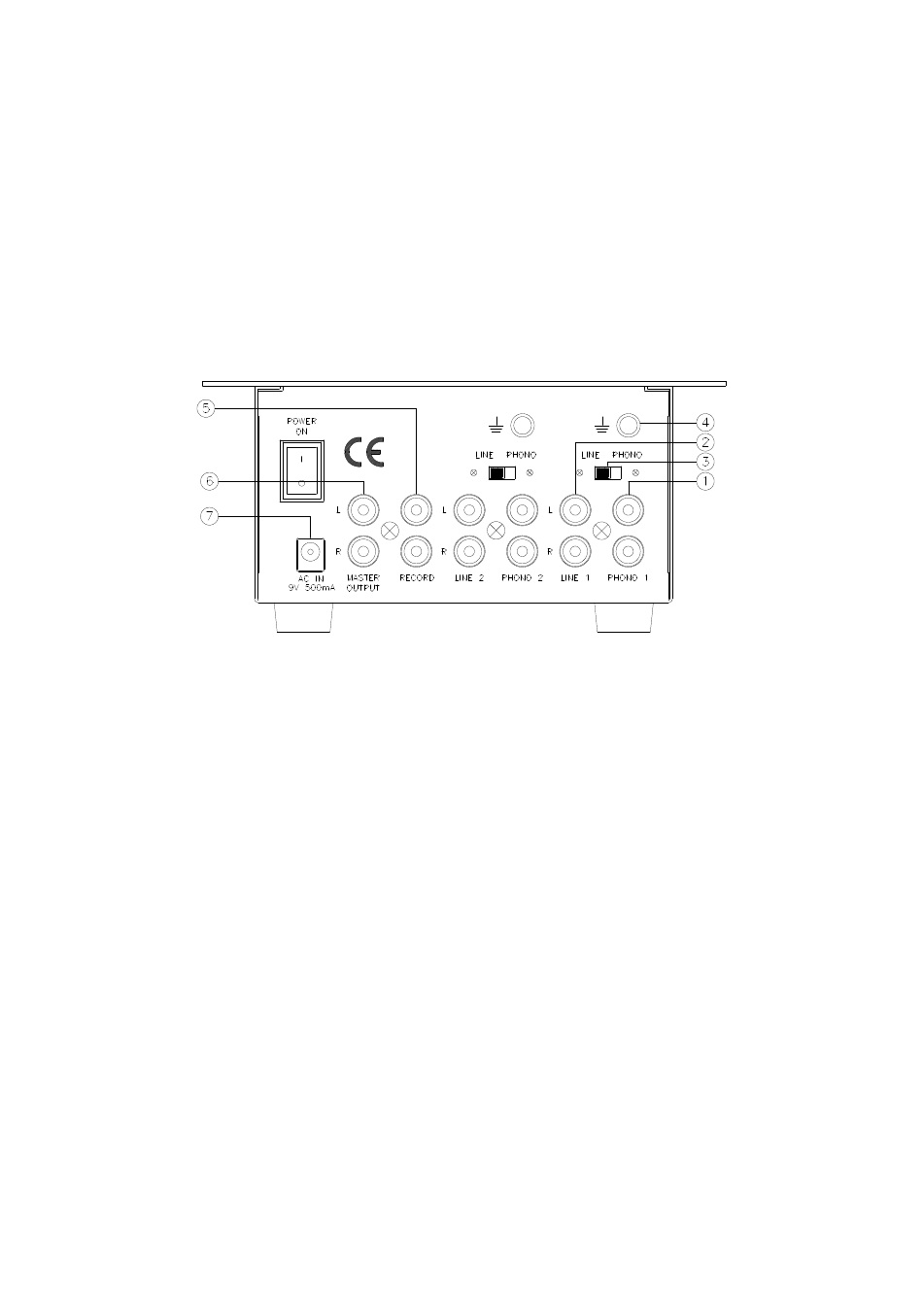

CONNECTION PANEL
1. Record player input:
Input for a record player, or another media player (See the technical specifications for the maximum input
level!).
2. Line input:
Input for an audio player, such as a CD player, radio, cassette recorder, or any other appliance with a
line output (see the technical specifications for the maximum input level!).
3. Line / Phono selector switch:
You can set whether you want to use the Phono (record player) input or the Line input with this selector
switch.
4. GND:
The screw connection can be used for the connection of for example the turntable to prevent extra buzz
and noise.
5. Record output:
The record output can be used to connect recording equipment, such as a MD, tape or cassette recorder.
The signal on the output contains the complete outgoing signal, such as is heard by the amplifier.
6. Master output:
This RCA/cinch output can be used to connect the mixer to an amplifier or
PA system.
7. AC IN:
You can connect the supplied power supply unit here. Do not use any other power supply unit to avoid
damaging your mixer!
