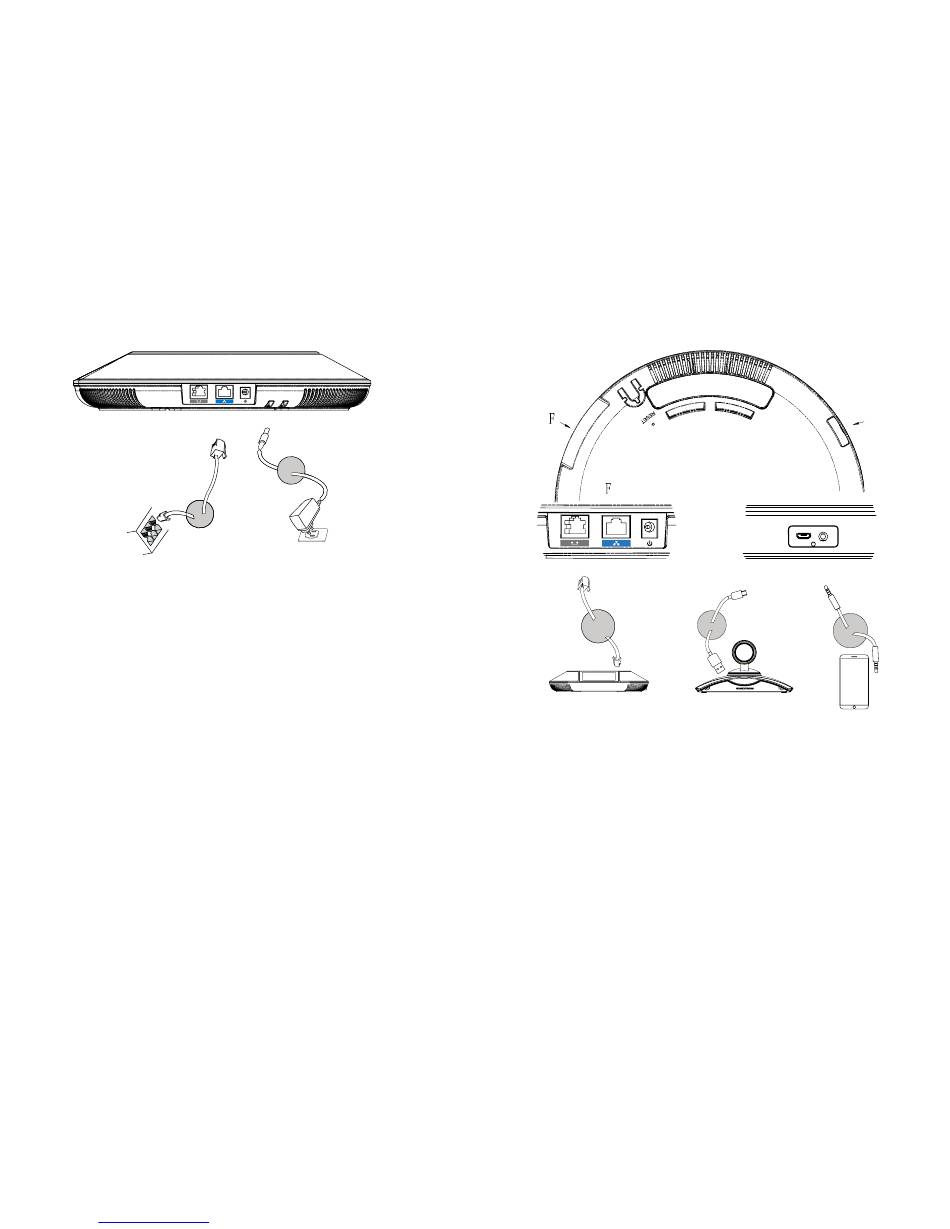

CONNECTING THE GAC2500:
Cascade
Port
Option B:
RJ45 Ethernet
cable to power
over Ethernet
(PoE) switch.
Caution: Please only use either Option A or Option B for power supply.
CONNECTION CONFIGURATION:
GAC2500 provides 2 connection configurations:
1. Standard connection (extendable cascade connection and mobile device con-
nection).
2. Integrated connection (slave mode connection).
Caution: The 2 connections cannot be configured at the same time. If the micro-
USB port is connected to GVC32xx products or PC, GAC2500 will use integrated
connection for microphone audio capture and the speaker.
STANDARD CONNECTION:
1. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router.
2. Connect the 12V DC output plug to the power jack on the phone; plug the
power adapter into an electrical outlet. If PoE switch is used in step 1, this step
could be skipped.
3. The LCD will display booting up or firmware upgrading information. Before
continuing, please wait for the main screen display to show up.
4. On the web configuration interface or from the menu of the touch screen, you
can further configure network connection using static IP, DHCP and etc.
3
Downloaded from www.Manualslib.com
Ethernet
Power
Port
Option A:
12V DC output
adapter to an
eletric outlet.
manuals search engine
LAN Port Power
Cascade
Port
Cascade connection:
Integrated connec-
GAC2500 A uses stan- tion:
dard connection and GAC2500 connects
GAC2500 B connects A
to GVC32xx with a
with a cascade cable. Micro-USB cable.
INTEGRATED CONNECTION:
1. Connect the 12V DC to the power jack on the phone; plug the power adapter
into an electrical outlet.
2. After the device boots up, connect the Micro-USB port to the USB port of
GVC32xx or PC, as shown above.
E
E
Micro-USB Port 3.5mm Audio
Port
Mobile device con-
nection:
GAC2500 (standard
connection) connects
to mobile device with
a 3.5mm male to
male cable.
