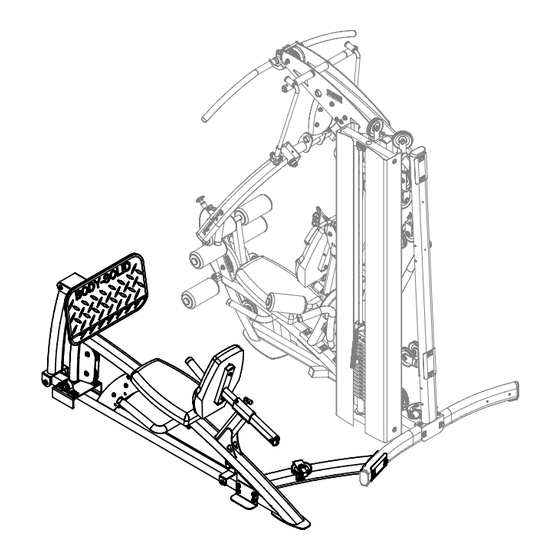

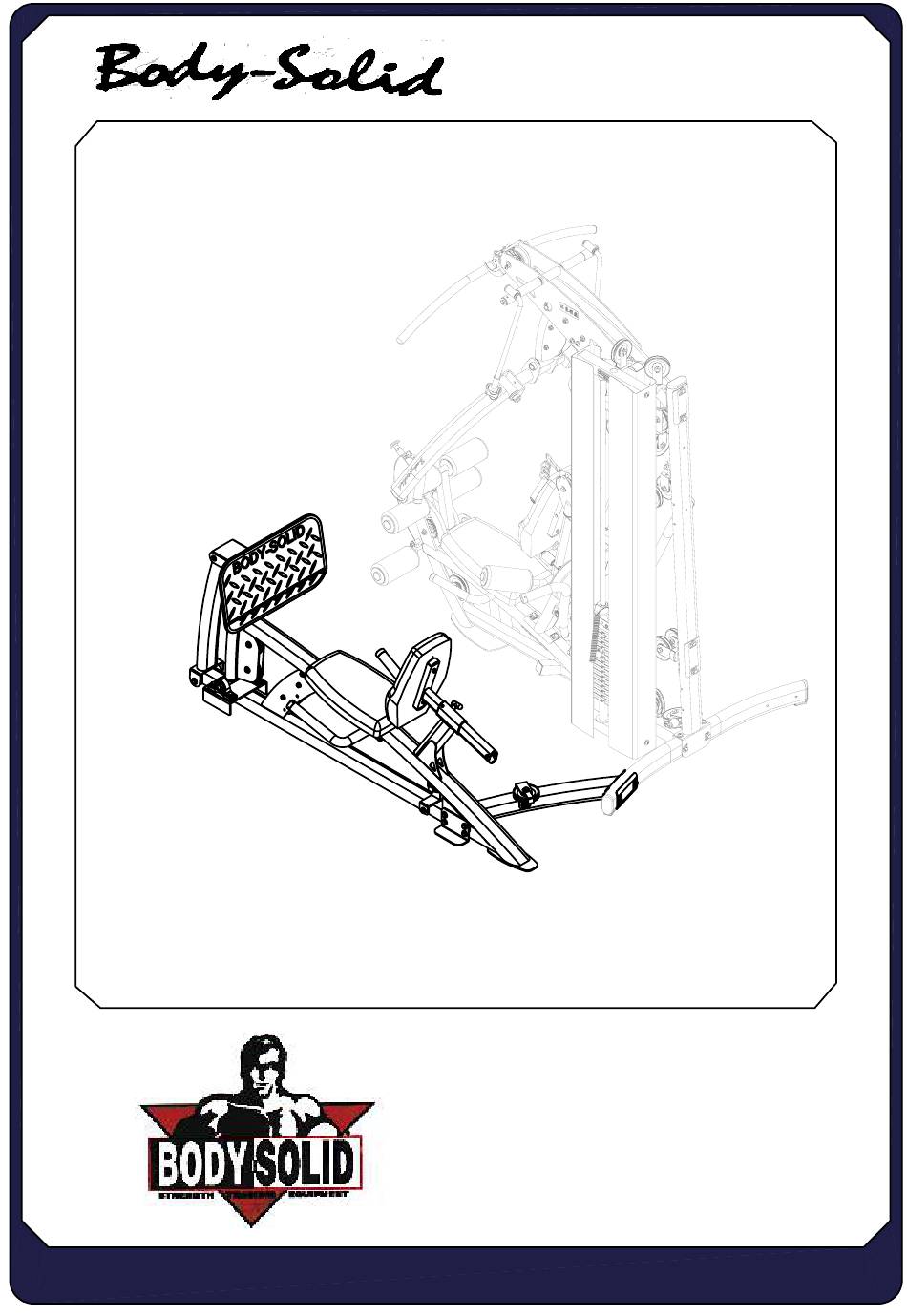

- Seite 1 BODY-SOLID,Inc 1900 S.Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL...
- Seite 2 FLP HARDWARE ILLUSTRATION SHEET A1.M10X130L HEX HEAD BOLT----------------------------------------------[7PCS] A2.M12X80L HEX HEAD BOLT------------------------------------------------[2PCS] A4.M10X45L HEX HEAD BOLT------------------------------------------------[1PCS] A5.M10X75L HEX HEAD BOLT------------------------------------------------[1PCS] A6.M10X50L HEX HEAD BOLT-----------------------------------------------[2PCS] A7.M8X105L HEX HEAD BOLT-----------------------------------------------[1PCS] A8.M8X50L HEX HEAD BOLT-------------------------------------------------[2PCS] A9.M10X80L HEX HEAD BOLT----------------------------------------------[2PCS] A10.M10X60L HEX HEAD BOLT----------------------------------------------[3PCS]...
- Seite 3 FLP HARDWARE ILLUSTRATION SHEET A11.M8X80L HEX HEAD BOLT----------------------------------------------[1PCS] A12.M10X20L ALLEBN HEAD BOLT---------------------------------------[1PCS] A13.M12X40L HEX HEAD BOLT--------------------------------------------[4PCS] B1.M10 NYLON LOCK NUT--------------------------------------------------[18PCS] B2.M12 NYLON LOCK NUT----------------------------------------------------[6PCS] C1.M10 WASHER---------------------------------------------------------------[29PCS] C2.M12 WASHER---------------------------------------------------------------[8PCS] C3.M8 WASHER-----------------------------------------------------------------[4PCS] C4.M8 SPRING LOCK WASHER-------------------------------------------[4PCS] Page 1-2 FLP-072007...
- Seite 4 FLP HARDWARE ILLUSTRATION SHEET D1.Ø110 PULLEY (9213-002)----------------------------------------------------[6PCS] D2.CONVEX END CAP (9211-086)---------------------------------------------[2PCS] D3.40X80 NYLON BUSHING (9211-123)-------------------------------------[2PCS] D4.CONVEX END CAP (9211-087)--------------------------------------------[2PCS] D5.STEEL BUSHING(8530-014)------------------------------------------------[4PCS] D6.3610mm STEEL CABLE-----------------------------------------------------[1PCS] D7.CONVEX END CAP (9261-061)--------------------------------------------[1PCS] D8.CONVEX END CAP (9211-128)--------------------------------------------[2PCS] D9.SPRING SNAP LINK(8810-002)--------------------------------------------[1PCS] D10. PAD WRAPS (9630-134)---------------------------------------------------[1PCS] Page 1-3...
- Seite 5 FLP PARTS ILLUSTRATION SHEET A[1PCS] B[1PCS] C[1PCS] D[1PCS] E[1PCS] F[1PCS] G[1PCS] L[1PCS] J[1PCS] H[1PCS] O[1PCS] K[1PCS] N[1PCS] M[1PCS] Q[2PCS] FLP-072007 Page 2...
- Seite 6 FLP ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed B1X2 C1X2 K C1X2 B1X4 A9X2 C1X4 C1X4 A1X4 FLP-072007 Page 3...
- Seite 7 FLP ASSEMBLY INSTRUCTIONS Above shows STEP2 assembled and completed M10 WASHER X2 M\10X20L HEX HEAD BOLT X2 SHAFT A13X4 C2X4 B2X4 FLP-072007 Page 4...
- Seite 8 FLP ASSEMBLY INSTRUCTIONS Above shows STEP3 assembled and completed A2X2 C2X4 8 20 B2X2 D4X2 Page 5 FLP-072007...
- Seite 9 FLP ASSEMBLY INSTRUCTIONS B1X2 Above shows STEP4 assembled and completed D1X2 D5X4 A10X2 B1X2 C1X2 B1X2 C1X2 D1X2 C1x2 C1X4 A6x2 A1X2 C1X2 D8X2 FLP-072007 Page 6...
- Seite 10 FLP ASSEMBLY INSTRUCTIONS Above shows STEP5 assembled and completed D2X2 C3X2 C4X2 A8X2 D3X2 C3X2 C4X2 Page 7 FLP-072007...
- Seite 11 FLP ASSEMBLY INSTRUCTIONS D6. 3610mm STEEL CABLE Above shows STEP6 assembled and completed C1X2 FLP-200707 Page 8...
