Gigabit Ethernet ExpressCard • User Manual
Thank you for purchasing the INTELLINET NETWORK SOLUTIONS
Model 524056.

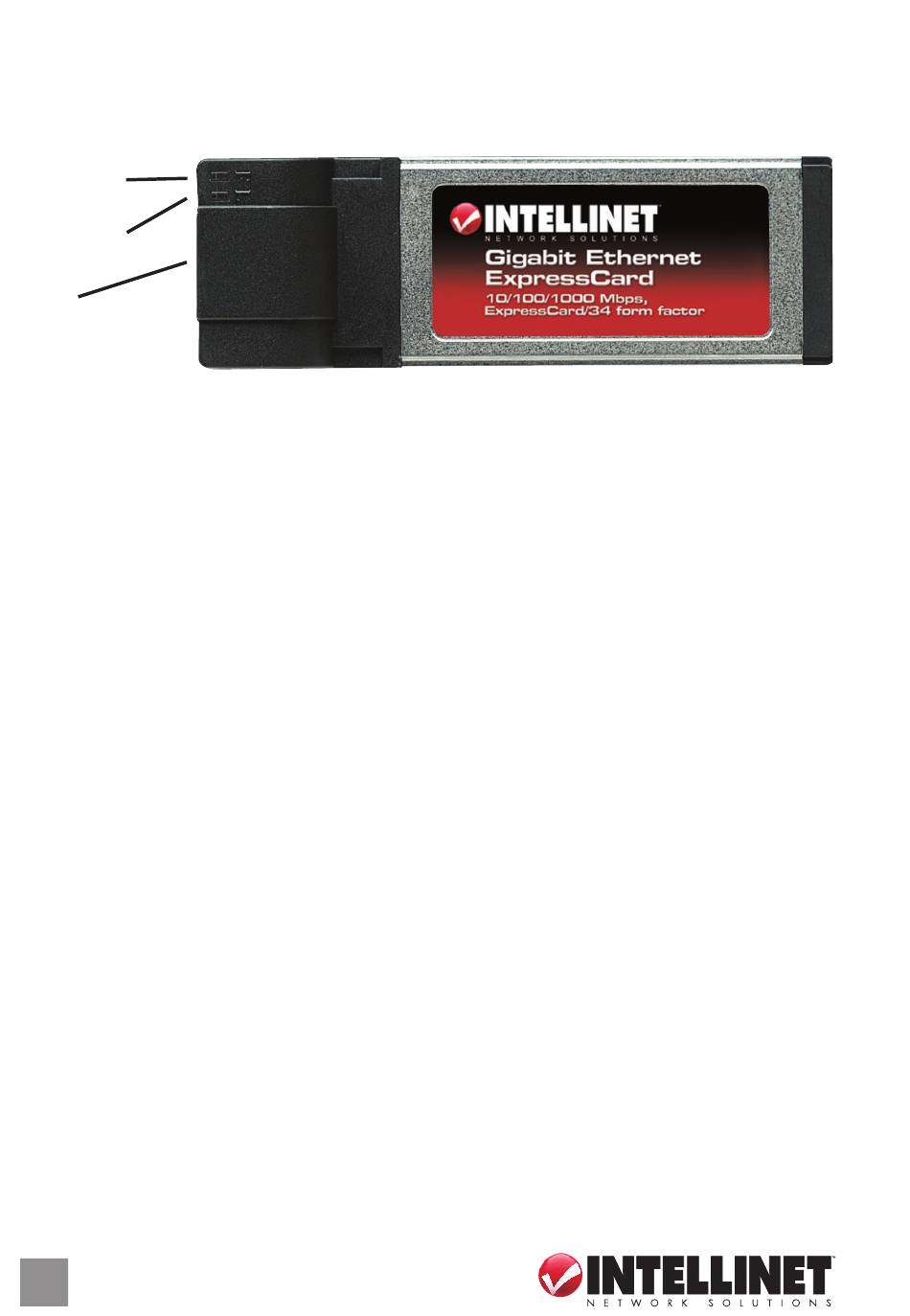

Card InstallatIon
1000 Mbps
Link/Act LED
100 Mbps
Link/Act LED
RJ45
port
1. Turn off your notebook computer.
2. Insert the card into an ExpressCard/54 or ExpressCard/34 slot on the computer. Make sure the
card is inserted all the way — label side up, as shown — for a solid connection.
3. Turn on the computer.
4. Connect the card to the desired network device. The LEDs will light green to indicate a valid
connection and blink to indicate activity.
setup / drIver InstallatIon
For Windows 2000/XP/2003 (32/64 bit)
At startup, these Windows operating systems automatically detect the card and install it with built-
in drivers. For Windows XP with Service Pack 2, follow these steps.
1. If the Found New Hardware screen displays at startup, click "Cancel" to postpone the driver
installation at this point.
2. Insert the included driver CD into your CD-ROM drive.
3. On the desktop, click "Start, " then click "Run. "
4. Enter "D:\ExpressCard\RTL81XXX\setup.exe" (where "D" or any other letter corresponds to your
CD-ROM drive). Click "OK. "
5. Follow the on-screen instructions to complete the installation, then re-start.
For Windows Vista/7 (32/64 bit)
At startup, Windows Vista/7 automatically detects the card and installs it with its built-in driver. To
upgrade the Vista or Win7 built-in driver, follow these steps.
1. Insert the included driver CD into your CD-ROM drive.
2. On the desktop, click "Start, " then click "Run. "
3. • For Vista, enter "D:\ExpressCard\RTL81XXX\Vista\setup.exe" (where "D" or any other letter
corresponds to your CD-ROM drive). Click "OK. "
• For Win7, enter "D:\ExpressCard\RTL81XXX\Win7\setup.exe" (where "D" or any other letter
corresponds to your CD-ROM drive). Click "OK. "
4. Follow the on-screen instructions to complete the installation, then re-start.
