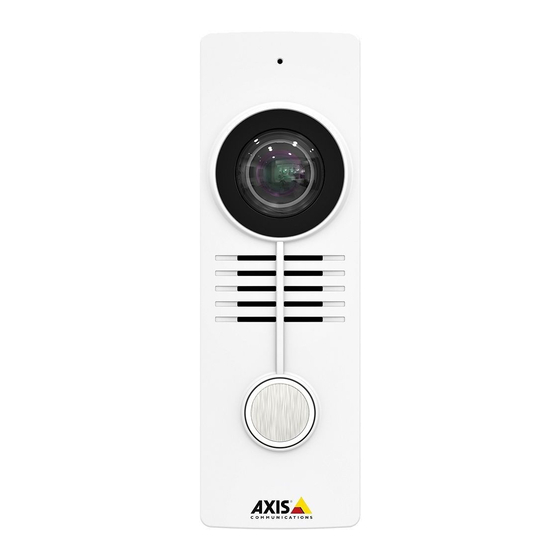

AXIS A8105-E Network Video Door Station
User Manual

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für Axis A8105-E

Inhaltszusammenfassung für Axis A8105-E

  • Seite 1 AXIS A8105-E Network Video Door Station User Manual...
  • Seite 1 AXIS A8105-E Network Video Door Station User Manual...
  • Seite 2 Axis Communications AB. See Contact Information on page 3 . may also be useful when developing shell scripts and applications. Later versions of this document will be posted at www.axis.com. See also the Electromagnetic Compatibility (EMC) product’s online help, available through the web-based interface.
  • Seite 2 Axis Communications AB. See Contact Information on page 3 . may also be useful when developing shell scripts and applications. Later versions of this document will be posted at www.axis.com. See also the Electromagnetic Compatibility (EMC) product’s online help, available through the web-based interface.
  • Seite 3 • Battery visit Axis Support at www.axis.com/techsup/ The Axis product uses a 3.0 V CR2032 lithium battery as the power Learn More! supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.
  • Seite 3 • Battery visit Axis Support at www.axis.com/techsup/ The Axis product uses a 3.0 V CR2032 lithium battery as the power Learn More! supply for its internal real-time clock (RTC). Under normal conditions this battery will last for a minimum of five years.

  • Seite 4: Inhaltsverzeichnis

    Application Considerations ........AXIS Video Motion Detection ....... . .

  • Seite 4: Inhaltsverzeichnis

    Application Considerations ........AXIS Video Motion Detection ....... . .
  • Seite 5 AXIS A8105-E Network Video Door Station Table of Contents Start and Stop the Application ........
  • Seite 5 AXIS A8105-E Network Video Door Station Table of Contents Start and Stop the Application ........

  • Seite 6: Safety Information

    AXIS A8105-E Network Video Door Station Safety Information Safety Information Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Seite 6: Safety Information

    AXIS A8105-E Network Video Door Station Safety Information Safety Information Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Seite 7: Requirements For Compliance With Ul294 6Th Edition

    • When the Axis product has reached the end of its useful life, dispose of it according to local laws and regulations. The product should not be disposed of together with household or commercial waste. See Disposal and Recycling on page 3 .

  • Seite 7: Requirements For Compliance With Ul294 6Th Edition

    • When the Axis product has reached the end of its useful life, dispose of it according to local laws and regulations. The product should not be disposed of together with household or commercial waste. See Disposal and Recycling on page 3 .

  • Seite 8: Performance Levels For Access Control

    AXIS A8105-E Network Video Door Station Requirements for Compliance with UL294 6th Edition • Firmware Version Firmware version: AXIS A8105 Network Door Station – 1.58.2. Performance Levels for Access Control This section contains performance level information required for UL 294 compliance. Feature...

  • Seite 8: Performance Levels For Access Control

    AXIS A8105-E Network Video Door Station Requirements for Compliance with UL294 6th Edition • Firmware Version Firmware version: AXIS A8105 Network Door Station – 1.58.2. Performance Levels for Access Control This section contains performance level information required for UL 294 compliance. Feature...

  • Seite 9: Hardware Overview

    AXIS A8105-E Network Video Door Station Hardware Overview Hardware Overview Microphone Camera Speaker Call button Gasket Resistorx screw I/O connector Control button Network connector (PoE) 10. Network, Status and Power LEDs 11. microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)

  • Seite 9: Hardware Overview

    AXIS A8105-E Network Video Door Station Hardware Overview Hardware Overview Microphone Camera Speaker Call button Gasket Resistorx screw I/O connector Control button Network connector (PoE) 10. Network, Status and Power LEDs 11. microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)

  • Seite 10: Typical Scenarios

    AXIS A8105-E Network Video Door Station Hardware Overview Typical Scenarios...

  • Seite 10: Typical Scenarios

    AXIS A8105-E Network Video Door Station Hardware Overview Typical Scenarios...

  • Seite 11: Connectors And Buttons

    Resetting the product to factory default settings. See page 79. • Connecting to an AXIS Video Hosting System service. See page 70. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Seite 11: Connectors And Buttons

    Resetting the product to factory default settings. See page 79. • Connecting to an AXIS Video Hosting System service. See page 70. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...
  • Seite 12 AXIS A8105-E Network Video Door Station Hardware Overview Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed. Amber Steady during startup. Flashes during firmware upgrade. Amber/Red Flashes amber/red if network connection is unavailable or lost.
  • Seite 12 AXIS A8105-E Network Video Door Station Hardware Overview Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed. Amber Steady during startup. Flashes during firmware upgrade. Amber/Red Flashes amber/red if network connection is unavailable or lost.

  • Seite 13: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders to prevent installation of unlicensed copies.

  • Seite 13: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders to prevent installation of unlicensed copies.

  • Seite 14: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 79) or by resetting the product to factory default.

  • Seite 14: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 79) or by resetting the product to factory default.
  • Seite 15 Manual Trigger on page 15. Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons.
  • Seite 15 Manual Trigger on page 15. Click Snapshot to save a snapshot of the video image. This button is primarily intended for use when the AXIS Media Control viewer toolbar is not available. Enable this button from Live View Config > Action Buttons.
  • Seite 16 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 18 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Seite 16 2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 18 for more information. The toolbar displays the following buttons: The Play button connects to the Axis product and starts playing a media stream.
  • Seite 17 AXIS A8105-E Network Video Door Station Access the Product With the PTZ Control Queue enabled the time each user is in control of the PTZ settings is limited. Click the buttons to request or release control of the PTZ controls. The PTZ Control Queue is set up under PTZ > Control Queue.
  • Seite 17 AXIS A8105-E Network Video Door Station Access the Product With the PTZ Control Queue enabled the time each user is in control of the PTZ settings is limited. Click the buttons to request or release control of the PTZ controls. The PTZ Control Queue is set up under PTZ > Control Queue.

  • Seite 18: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 8 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Seite 18: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 8 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Seite 19: Alternative Methods Of Accessing The Video Stream

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Seite 19: Alternative Methods Of Accessing The Video Stream

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.
  • Seite 20 AXIS A8105-E Network Video Door Station Media Streams Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp Multicast: axrtpm://<ip>/axis-media/media.amp • QuickTime supports G.711 and AAC audio encoding. The following paths can be used: rtsp://<ip>/axis-media/media.amp rtsp://<ip>/axis-media/media.3gp...
  • Seite 20 AXIS A8105-E Network Video Door Station Media Streams Unicast via RTSP: axrtsp://<ip>/axis-media/media.amp Unicast via RTSP, tunneled via HTTP: axrtsphttp://<ip>/axis-media/media.amp Multicast: axrtpm://<ip>/axis-media/media.amp • QuickTime supports G.711 and AAC audio encoding. The following paths can be used: rtsp://<ip>/axis-media/media.amp rtsp://<ip>/axis-media/media.3gp...

  • Seite 21: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Seite 21: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Seite 22: Video And Audio

    Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle.

  • Seite 22: Video And Audio

    Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle.
  • Seite 23 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.
  • Seite 23 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Seite 24: How To Set An H.264 Profile

    Image details that are important for forensic video analysis, for example faces and license plates, are preserved with enough number of bits. Axis’ Zipstream Technology for H.264 conforms to the H.264 standard and is compatible with third-party clients and VMS solutions that decode H.264 video.

  • Seite 24: How To Set An H.264 Profile

    Image details that are important for forensic video analysis, for example faces and license plates, are preserved with enough number of bits. Axis’ Zipstream Technology for H.264 conforms to the H.264 standard and is compatible with third-party clients and VMS solutions that decode H.264 video.

  • Seite 25: About Stream Profiles

    Capture mode is set the first time the product is accessed. Select the capture mode with the power line frequency (50 Hz or 60 Hz) used at the location of the Axis product and click OK. When using 50 Hz, the maximum frame rate is limited to 25 fps.

  • Seite 25: About Stream Profiles

    Capture mode is set the first time the product is accessed. Select the capture mode with the power line frequency (50 Hz or 60 Hz) used at the location of the Axis product and click OK. When using 50 Hz, the maximum frame rate is limited to 25 fps.

  • Seite 26: White Balance

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Seite 26: White Balance

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.

  • Seite 27: Exposure Settings

    1. Use the slider to set the Priority between Low motion blur and Low noise. When prioritizing low noise (slider all the way to the left) the Axis product will automatically decrease shutter speed as brightness decreases. When the shutter speed reaches 1/30 s the camera product increases gain until the set maximum gain for normal light is reached.

  • Seite 27: Exposure Settings

    1. Use the slider to set the Priority between Low motion blur and Low noise. When prioritizing low noise (slider all the way to the left) the Axis product will automatically decrease shutter speed as brightness decreases. When the shutter speed reaches 1/30 s the camera product increases gain until the set maximum gain for normal light is reached.

  • Seite 28: About Overlays

    To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Pre-Configured View Areas Note For the pre-configured view areas, the image is by default automatically rotated.

  • Seite 28: About Overlays

    To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Pre-Configured View Areas Note For the pre-configured view areas, the image is by default automatically rotated.

  • Seite 29: How To Include Overlay Text In An Action Rule

    An overlay image is a static image superimposed over the video stream. The image, for example a company logo, is first uploaded to the Axis product and then used to provide extra information or to mask a part of the image.

  • Seite 29: How To Include Overlay Text In An Action Rule

    An overlay image is a static image superimposed over the video stream. The image, for example a company logo, is first uploaded to the Axis product and then used to provide extra information or to mask a part of the image.

  • Seite 30: How To Include An Overlay Image

    6. Click Save. About privacy masks The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled. You can add a new mask, re-size the mask with the mouse, choose a color for the mask, and give the mask a name.

  • Seite 30: How To Include An Overlay Image

    6. Click Save. About privacy masks The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled. You can add a new mask, re-size the mask with the mouse, choose a color for the mask, and give the mask a name.

  • Seite 31: Audio Input

    Use the Encoding option to select digital audio encoding format. • AAC is used for encoding only in the Axis product. For decoding, no license is included in the Axis product. • G711 is an unlicensed standard codec that is useful when integrating audio into a VoIP system •...

  • Seite 31: Audio Input

    Use the Encoding option to select digital audio encoding format. • AAC is used for encoding only in the Axis product. For decoding, no license is included in the Axis product. • G711 is an unlicensed standard codec that is useful when integrating audio into a VoIP system •...

  • Seite 32: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 56.

  • Seite 32: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 56.

  • Seite 33: Voice Over Ip (Voip)

    The sessions can include voice and video elements. See About SIP Addresses on page 39. Before the Axis product can be used to make and receive calls, you need to configure the SIP settings. This includes enabling SIP, configuring the ports, and setting the rules for Network Address Translation (NAT) traversal.

  • Seite 33: Voice Over Ip (Voip)

    The sessions can include voice and video elements. See About SIP Addresses on page 39. Before the Axis product can be used to make and receive calls, you need to configure the SIP settings. This includes enabling SIP, configuring the ports, and setting the rules for Network Address Translation (NAT) traversal.

  • Seite 34: Port Settings

    NOTICE TICE TICE Allowing incoming calls enables the AXIS product to accept calls from any device connected to the network. It is recommended to disable incoming calls for products that are accessible from public networks or the Internet. Note Even if you choose to not enable SIP, you can configure the SIP settings. But remember that when SIP is disabled, you cannot make or receive calls.

  • Seite 34: Port Settings

    NOTICE TICE TICE Allowing incoming calls enables the AXIS product to accept calls from any device connected to the network. It is recommended to disable incoming calls for products that are accessible from public networks or the Internet. Note Even if you choose to not enable SIP, you can configure the SIP settings. But remember that when SIP is disabled, you cannot make or receive calls.

  • Seite 35: Configure The Vms Settings

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Interactive Connectivity Establishment (ICE) Interactive Connectivity Establishment (ICE) enables the product to send a request that includes multiple addresses to the receiving device. In its response, the receiving device also includes multiple addresses. Through a process of connectivity checks, also called handshakes, the channel for communication is established.

  • Seite 35: Configure The Vms Settings

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Interactive Connectivity Establishment (ICE) Interactive Connectivity Establishment (ICE) enables the product to send a request that includes multiple addresses to the receiving device. In its response, the receiving device also includes multiple addresses. Through a process of connectivity checks, also called handshakes, the channel for communication is established.

  • Seite 36: The Account Settings Page

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Number of audio streams to device - Set a range between 0 and 1. Number of video streams from device - Set a range between 0 and 8. Call timeout - The number of seconds to wait before the call times out.

  • Seite 36: The Account Settings Page

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Number of audio streams to device - Set a range between 0 and 1. Number of video streams from device - Set a range between 0 and 8. Call timeout - The number of seconds to wait before the call times out.
  • Seite 37 • User ID – User ID is typically the extension or phone number assigned to the Axis product at the SIP server. It is also possible to use a SIP URI as a User ID if required by the SIP server.
  • Seite 37 • User ID – User ID is typically the extension or phone number assigned to the Axis product at the SIP server. It is also possible to use a SIP URI as a User ID if required by the SIP server.
  • Seite 38 View area - Select one of the available view areas to be used in a SIP call. Additional view areas can be set up in Video & Audio > View Areas. Make Test Calls To make sure that calls can be made from the Axis product, you can make a test call:...
  • Seite 38 View area - Select one of the available view areas to be used in a SIP call. Additional view areas can be set up in Video & Audio > View Areas. Make Test Calls To make sure that calls can be made from the Axis product, you can make a test call:...
  • Seite 39 The domain name or registrar address (IPv4 address) of the receiving device. Important The Axis product’s VoIP functionality does not include support for IPv6. For more information about SIP, SIPS, and TLS, see Port Settings on page 34 and Transport Settings on page 37.
  • Seite 39 The domain name or registrar address (IPv4 address) of the receiving device. Important The Axis product’s VoIP functionality does not include support for IPv6. For more information about SIP, SIPS, and TLS, see Port Settings on page 34 and Transport Settings on page 37.

  • Seite 40: Dual-Tone Multi-Frequency (Dtmf)

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Dual-Tone Multi-Frequency (DTMF) Dual-Tone Multi-Frequency (DTMF), also known as touch-tone, is a signaling system used by telecommunication devices. DTMF can be used to remotely control other devices. When you press a button on a keypad, a DTMF packet is created and sent to the other device.

  • Seite 40: Dual-Tone Multi-Frequency (Dtmf)

    AXIS A8105-E Network Video Door Station Voice over IP (VoIP) Dual-Tone Multi-Frequency (DTMF) Dual-Tone Multi-Frequency (DTMF), also known as touch-tone, is a signaling system used by telecommunication devices. DTMF can be used to remotely control other devices. When you press a button on a keypad, a DTMF packet is created and sent to the other device.
  • Seite 41 AXIS A8105-E Network Video Door Station Voice over IP (VoIP) 3. Click Add. 4. Enter a name. See DTMF Sequence Properties on page 41. 5. Enter the sequence. See DTMF Sequence Properties on page 41. 6. Click OK. To edit a DTMF sequence, select the item in the sequence list and click Modify.
  • Seite 41 AXIS A8105-E Network Video Door Station Voice over IP (VoIP) 3. Click Add. 4. Enter a name. See DTMF Sequence Properties on page 41. 5. Enter the sequence. See DTMF Sequence Properties on page 41. 6. Click OK. To edit a DTMF sequence, select the item in the sequence list and click Modify.

  • Seite 42: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...

  • Seite 42: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...

  • Seite 43: User Defined Links

    Light Buttons The built-in light on the AXIS product can be controlled directly from the Live View page by enabling the display of light buttons. To display the light buttons in the Live view Page, select the type of control from the drop-down list under Live View Config >...

  • Seite 43: User Defined Links

    Light Buttons The built-in light on the AXIS product can be controlled directly from the Live View page by enabling the display of light buttons. To display the light buttons in the Live view Page, select the type of control from the drop-down list under Live View Config >...

  • Seite 44: Ptz (Pan Tilt Zoom)

    AXIS A8105-E Network Video Door Station PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) PTZ (pan, tilt and zoom) is available if you have enabled digital PTZ in the selected view area. For more information on view areas, see View Area on page 27.

  • Seite 44: Ptz (Pan Tilt Zoom)

    AXIS A8105-E Network Video Door Station PTZ (Pan Tilt Zoom) PTZ (Pan Tilt Zoom) PTZ (pan, tilt and zoom) is available if you have enabled digital PTZ in the selected view area. For more information on view areas, see View Area on page 27.

  • Seite 45: Advanced

    AXIS A8105-E Network Video Door Station PTZ (Pan Tilt Zoom) 6. For each preset position, enter the View Time in seconds or minutes. 7. Specify the View Order of the preset positions, or select Random view order. 8. Click Save.

  • Seite 46: Control Queue

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events on page 56). The event will immediately be placed first in the queue except when an administrator is in control.

  • Seite 47: Detectors

    Tilt Detection The Axis product can detect if it has been tilted. It is possible to generate an alarm if the product's mounted position changes, for example if the product is manipulated. The default tilt trigger angle is set to 3 degrees.

  • Seite 48: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Seite 49: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Seite 50 AXIS A8105-E Network Video Door Station Applications If the Axis product is reset to factory default, uploaded applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings on page 79.

  • Seite 51: Axis Video Motion Detection

    AXIS Video Motion Detection is an application that detects moving objects in the camera’s field of view. When a moving object is detected, AXIS Video Motion Detection sends an alarm that can be used by the Axis product or by third-party software to for example, record video or send a notification.
  • Seite 52 Note To add and modify exclude areas, Internet Explorer and AXIS Media Control (AMC) must be used. To add an exclude area, click Add. The default exclude area is a rectangle placed in the center of the image. Use the mouse to move, reshape and resize the area so that it covers the desired part of the image.
  • Seite 53 • Enabling visual confirmation may introduce video latency. Ignore Filters If AXIS Video Motion Detection 3 detects too many unwanted objects, start by modifying the include and exclude areas. If still too many objects are detected, use one or more of the ignore filters.

  • Seite 54: Using The Application In An Action Rule

    The following example shows how to configure the Axis product to record video when AXIS Video Motion Detection 3 detects motion. 1. Insert an SD card in the Axis product, or go to Setup > System Options > Storage in the Axis product’s webpages and configure the product to use a network share.
  • Seite 55 AXIS A8105-E Network Video Door Station AXIS Video Motion Detection 4. From the Trigger drop-down list, select Applications and then select VMD 3. 5. Configure other settings as required. For example, to only record video during certain time periods, select a Schedule.

  • Seite 56: Events

    Events The Event pages allow you to configure the Axis product to perform actions when different events occur. For example, the product can start a recording or send an email notification when motion is detected. The set of conditions that defines how and when the action is triggered is called an action rule.
  • Seite 57 AXIS A8105-E Network Video Door Station Events To use more than one trigger for the action rule, select Additional conditions and click Add to add additional triggers. When using additional conditions, all conditions must be met to trigger the action.
  • Seite 58 Live Stream Accessed – Trigger the rule when any stream is accessed and during edge storage playback. This can for example be used to send notifications. Shock Detection – Trigger the rule when the Axis product detects it has been tilted or hit. See Shock Detection on page 47.
  • Seite 59 Recording – Triggers the rule when the Axis product records to the storage device. The recording status trigger can be used to notify the operator, for example by flashing LED lights, if the product has started or stopped to record to the storage device.

  • Seite 60: Add Recipients

    Axis Door Controller Axis Door Control An Axis Door Controller enables access management of doors that are connected to it. The Axis Door Controller recipient is typically used when sending a DTMF sequence to open a door. Email An email recipient can contain multiple email addresses.

  • Seite 61: Create Schedules

    Optionally, select Use encryption to send emails over an encrypted connection. The server certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see . Create Schedules Schedules can be used as action rule triggers or as additional conditions, for example to record video if motion is detected outside office hours.

  • Seite 62: Pre-Configured Action Rules

    TAMPERING: Tilt detected - Triggers the Action rule if the product is tilted more than the defined number of degrees. TAMPERING: Shock detected - Triggers the Action rule if the Axis product detects it has been tilted or hit. When the output port is activated, the AXIS 9801 security relay box (not included) connected to Port 2 will lock itself down to prevent any malicious person from short circuiting the lock/device/door connected to it.

  • Seite 63: Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Seite 64: Export Video Clip

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 74. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Seite 65: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Seite 66: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Seite 67 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Seite 68: Date & Time

    Axis product: Server/Client certificates - To authenticate the Axis product. CA certificates - To authenticate peer certificates, for example the certificate of an authentication server in case the Axis product is connected to an IEEE 802.1X protected network.

  • Seite 69: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Seite 70 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Seite 71 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Seite 72 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Seite 73 SOCKS is a networking proxy protocol. The Axis product can be configured to use a SOCKS server to reach networks on the other side of a firewall or proxy server. This functionality is useful if the Axis product is located on a local network behind a firewall, and notifications, uploads, alarms, etc need to be sent to a destination outside the local network (for example the Internet).

  • Seite 74: Storage

    AXIS A8105-E Network Video Door Station System Options Note The initial password can only be set once. If the password is lost, the Axis product must be reset to factory default, see Reset to Factory Default Settings on page 79. UPnP The Axis product includes support for UPnP .
  • Seite 75 To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Seite 76: Network Share

    6. Click Connect. To clear all recordings and data from the Axis product’s folder on the designated share, click Clear under Storage Tools. To avoid filling the share, it is recommended to remove recordings continuously. Under Recording Settings, select Remove recordings older than and select the number of days or weeks.

  • Seite 77: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Seite 78: Support

    System Overview To get an overview of the Axis product’s status and settings, go to System Options > Support > System Overview. Information that can be found here includes firmware version, IP address, network and security settings, event settings, image settings and recent log items.

  • Seite 79: Reset To Factory Default Settings

    System Options File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Seite 80: Troubleshooting

    The latest version may contain a correction that fixes your particular problem. The current firmware version in the Axis product is displayed in the page Setup > Basic Setup and in Setup > About.

  • Seite 81: Symptoms, Possible Causes And Remedial Actions

    Status indicator. 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the product reloads the previous firmware.
  • Seite 82 The product is accessible locally but not externally Router configuration To configure your router to allow incoming data traffic to the Axis product, enable the NAT-traversal feature which will attempt to automatically configure the router to allow access to the Axis product, see NAT traversal (port mapping) for IPv4 on page 72.
  • Seite 83 AXIS A8105-E Network Video Door Station Troubleshooting No audio Incorrect setup Check the sound card in the computer. Ensure that mute is not selected and that the volume settings are correct. Check that Enable audio support is selected under Setup > System Options > Security > Audio Support.

  • Seite 84: Technical Specifications

    Image settings Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Fine-tuning of behavior at low light, WDR - forensic capture, Rotation: Auto, 0°, 90°, 180°, 270° including Axis’ Digital Corridor Format, Portrait/Landscape, Text and image overlay, Mirroring of images, Privacy mask.
  • Seite 85 System: System ready Time: Recurrence, Use schedule Event actions Axis door control, video and audio recording to edge storage, Pre- and post-alarm video buffering, External output activation, Play audio clip, Overlay text, PTZ control, Status LED, WDR mode Make call: SIP, API...

  • Seite 86: Connectors

    AXIS A8105-E Network Video Door Station Technical Specifications Included Installation Guide, Resitorx T20 bit, Terminal block connector, Cable gasket, AXIS Connector guard A, AVHS accessories Authentication key Mounting Wall mount or recessed with AXIS A8105-E Flush Mount accessory. option Optional AXIS A8105–E Flush Mount...

  • Seite 87: Connection Diagrams

    AXIS A8105-E Network Video Door Station Technical Specifications Connection Diagrams I/O Connector Example setup of the I/O connector: AXIS A8105–E connected to AXIS A9801 Security Relay 0 V DC (-) DC output 12 V, max current 350 mA I/O 1 configured as input I/O 2 configured as output Normally open/normally closed.
  • Seite 88 Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Seite 89 User Manual Ver. M1.16 AXIS A8105-E Network Video Door Station Date: June 2016 © Axis Communications AB, 2016 Part No. 1581456...
