When installing in an LCD television with a bracket pitch of 200mm
Use one of the following assembly configurations to assemble the based
bracket in accordance with the height of the LCD television to be installed. For
each configuration, follow the stamped instruction marks (see below) on based
brackets A and B to assemble the bracket.
Based bracket A
163mm
Based bracket B
Based bracket A
163mm
Based bracket B
•

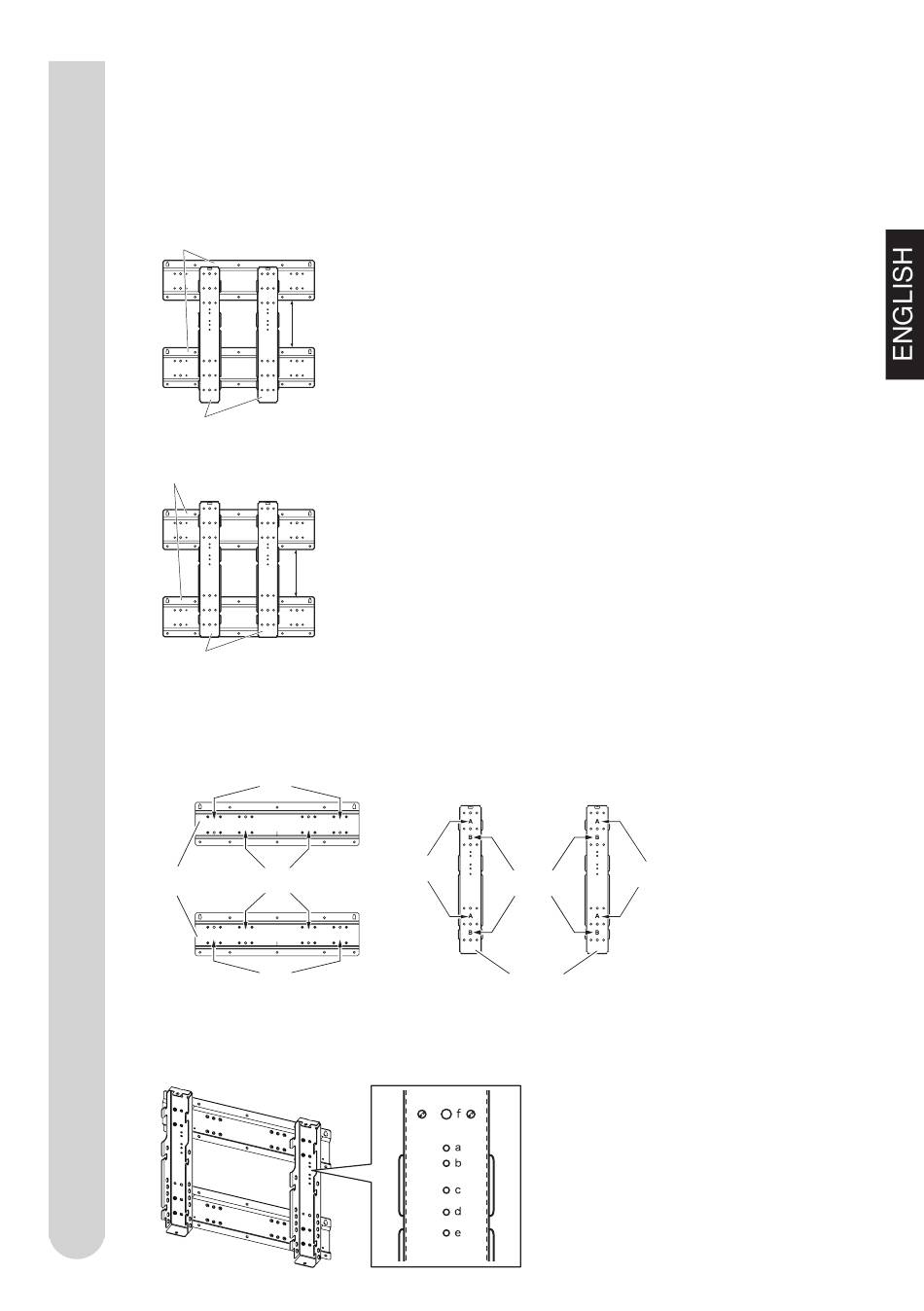

Refer to the following figures for the locations of based bracket stamped marks A
to D.
Stamped
Stamped
mark C
mark C
C D
C D
Based
Stamped
Stamped
Based
bracket A
mark D
bracket A mark D
C D
C D
Stamped
Stamped
mark C
mark C
•
The stamped marks "b" to "f" in the center of the based bracket B show the screen
center positions for the various LCD television models.
Assembly configuration (1)
Height: Standard (The height can be changed +5cm
after the bracket is installed to the wall.)
Based bracket A: Stamped mark D
Based bracket B: Stamped mark A
Assembly configuration (2)
Height: +5cm (The height can be changed -5cm after
the bracket is installed to the wall.)
Based bracket A: Stamped mark D
Based bracket B: Stamped mark B
D C
D C
Stamped
Stamped
mark A
mark A
D C
D C
A A
B B
Stamped
Stamped
mark B
Stamped
mark A
mark B
B B
A A
Based
Based
bracket B
bracket B
Stamped
mark A
