Operating Elements - Renkforce 1647064 Bedienungsanleitung

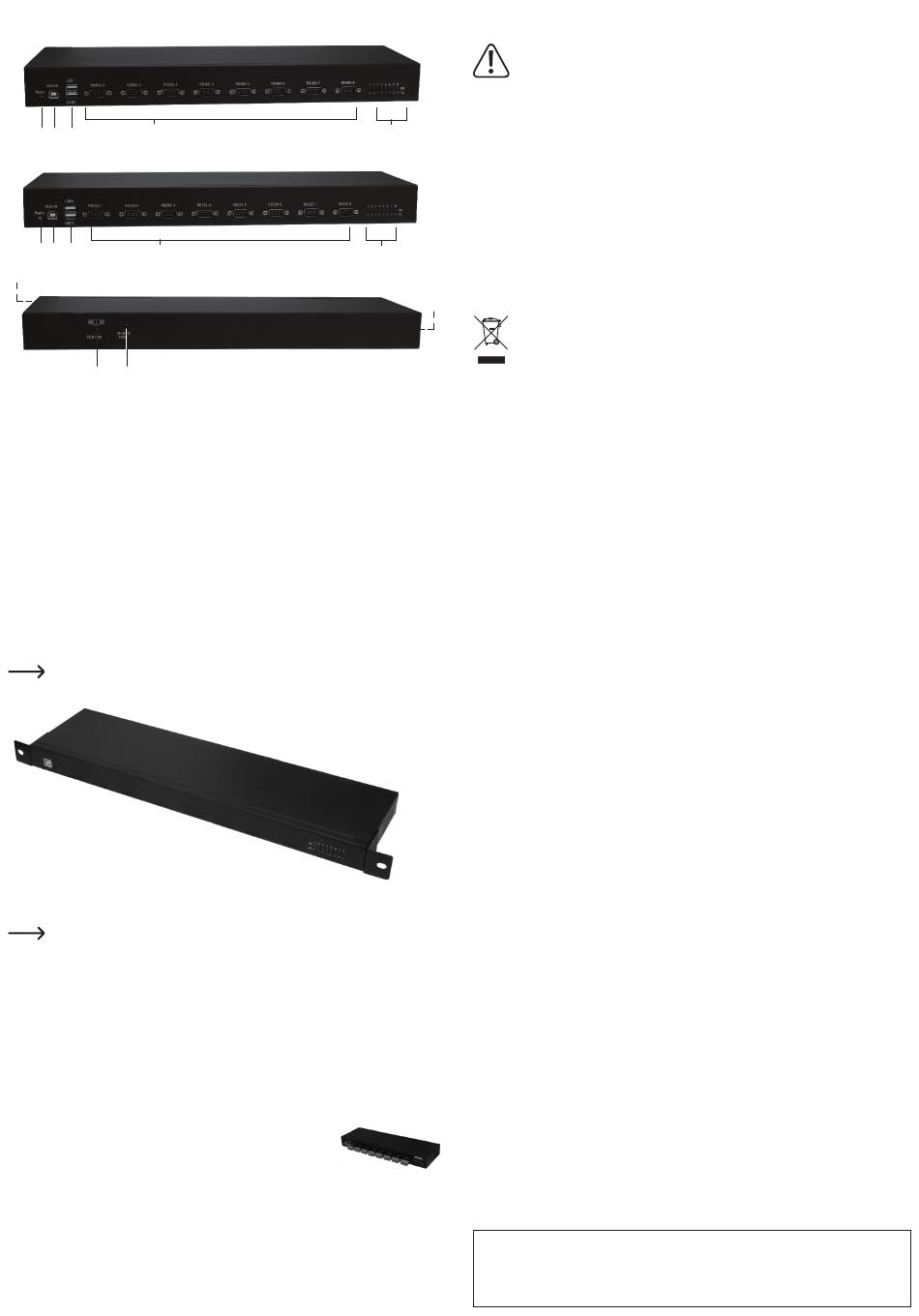

Operating elements

4
1 2 3
1 2 3
4
9
8 7
1 POWER LED
3 USB-A ports USB1 USB2
(2 outputs)
5 LED indicators for the outputs
7 Mains cable DC 5 V
9 Threaded holes for mounting brackets
(concealed)
Mounting in a 19" server rack
You can use the mounting bracket to mount the converter in a standard 19" server rack. To
mount in a server rack, proceed as follows:
• Remove all connected devices and unplug the power adapter from the mains socket
(7 or 8) on the converter.
• Use the screws provided to secure the mounting bracket to the threaded holes (9) on the
housing.
This figure is not a detailed representation of the product. It merely illustrates
installation of the mounting brackets.
• Then, mount the pre-assembled converter in the rack.
Ensure that the mains socket for connecting the power adapter is close to the place
of installation.
Setup
• Connect the USB-B port USB-IN (2) on the converter to the USB output of a computer/server
using the USB cable supplied.
• You can connect up to 2 USB devices to the USB-A outputs USB 1 and USB 2. An additional
USB cable may be required (not included). The maximum available output current per output
is 0.5 A.
• You can directly connect up to 8 devices with corresponding connectors via the connections
(with item no. 1647064).
• Use the RS485 adapter supplied to directly connect cables and
wires for RS422, if necessary. Use an appropriate screwdriver to
screw down the individual wires. Observe the printed descriptions of
the individual connection terminals.
• You can connect up to 8 devices via the RS232 connections (with item no. 1647067).
• Connect the low-voltage plug on the power adapter to the mains socket 5 V/DC (7) to connect
the 5 V/DC supply voltage.
5
2 USB-B port USB-IN (input)
4 RS485 (item no. 1677064) outputs
RS232 (item no. 1677067) outputs
6 Ventilation openings (concealed)
8 Mains cable DC9-36 V
• Alternatively, connect the low-voltage plug on the power adapter to the mains socket
9-36 V/DC (8) to connect the 9-36 V/DC supply voltage.
Never connect both power supplies at the same time. Use only one power
connection.
• Start up the converter.
• Install the necessary drivers for your operating system from the driver CD supplied. Follow
the installation instructions in the "AN_396 FTDI Drivers Installation Guide", which is available
5
on the CD.
• The converter is now ready for use.
Care and cleaning
• Always disconnect the product from the power supply before cleaning it.
• Never use aggressive detergents, rubbing alcohol or other chemical solutions, as these may
damage the housing or cause the product to malfunction.
• Use a dry, lint-free cloth to clean the product.
Disposal
6
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product according to
the relevant statutory regulations.
You thus fulfil your statutory obligations and contribute to environmental protection.
Technical data
a) Converter
Operating voltage ......................... 5 V/DC (input 1), optional 36 V/DC (input 2)
Output current ............................... 0.5 A (per port)
USB standard ............................... USB 2.0
USB A connections ....................... 2x USB 2.0
USB B connections ....................... 1x USB 2.0
Connections .................................. 8x RS422 (item no. 1647064)
System requirements .................... Windows
Operating conditions ..................... 0 to +55 °C, 0 - 95 % relative humidity (non-condensing)
Storage conditions ........................ -20 to +70 °C, 0 - 95 % relative humidity (non-condensing)
Dimensions (W x H x D) ............... 443 x 45 x 138.5 mm
Weight .......................................... 1647 g (item no. 1647064)
b) Power adapter
Input voltage/current ..................... 100 - 240 V/AC, 50/60 Hz, 0.45 A
Output voltage/current .................. 5 V/DC, 2 A
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or capturing in
electronic data processing systems) requires prior written approval from the publisher. Reprinting, also in part, is
prohibited. This publication reflects the technical status at the time of printing.
Copyright 2019 by Conrad Electronic SE.
8x RS232 (item no. 1647067)
2000, XP (Home, Pro, with SP1, SP2, SP3, 32
®
bit only), Vista™ (32 bit),
7 (32/64 bit), 8 & 8.1 (32/64 bit), 10 (32/64 bit), 10S
Mac OS 8.0 or higher to Mac OS X, Linux 8.4 to 4.14
1623 g (item no. 1647067)
