Quick Installation Guide

Package Contents:

• Broadband Router with USB Print Server
• 5.0 VDC power supply
• Ethernet cable
• Installation CD-ROM
• Quick Installation Guide

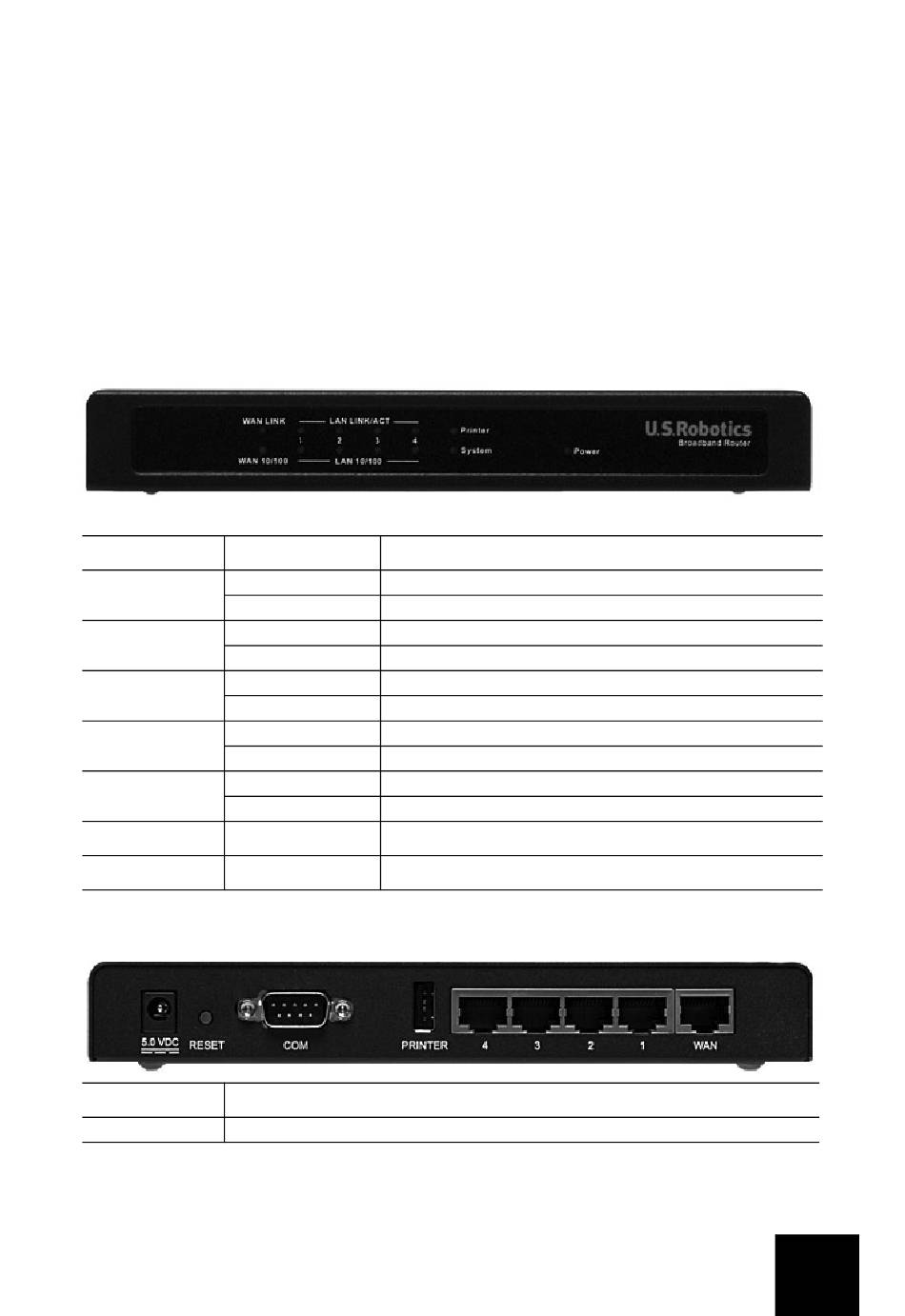

Front View

LEDS Action
Lighted
WAN LINK
Blinking
Lighted
WAN 10/100
Off
Lighted
LAN LINK/ACT
Blinking
Lighted
LAN 10/100
Off
Lighted
Printer
Blinking
Blinking
System
Lighted
Power

Rear View

Feature Function
5.0 VDC Power supply connection port
Function
WAN Ethernet signal detected
Sending or receiving WAN data
100 Mbps WAN link is achieved
10 Mbps WAN link is achieved
LAN Ethernet signal detected
Sending or receiving LAN data
100 Mbps LAN link is achieved
10 Mbps LAN link is achieved
Link to printer is achieved
Sending or receiving printer data
Router is functioning properly
Receiving power
