Hirschmann OZDV HA Montageanleitung

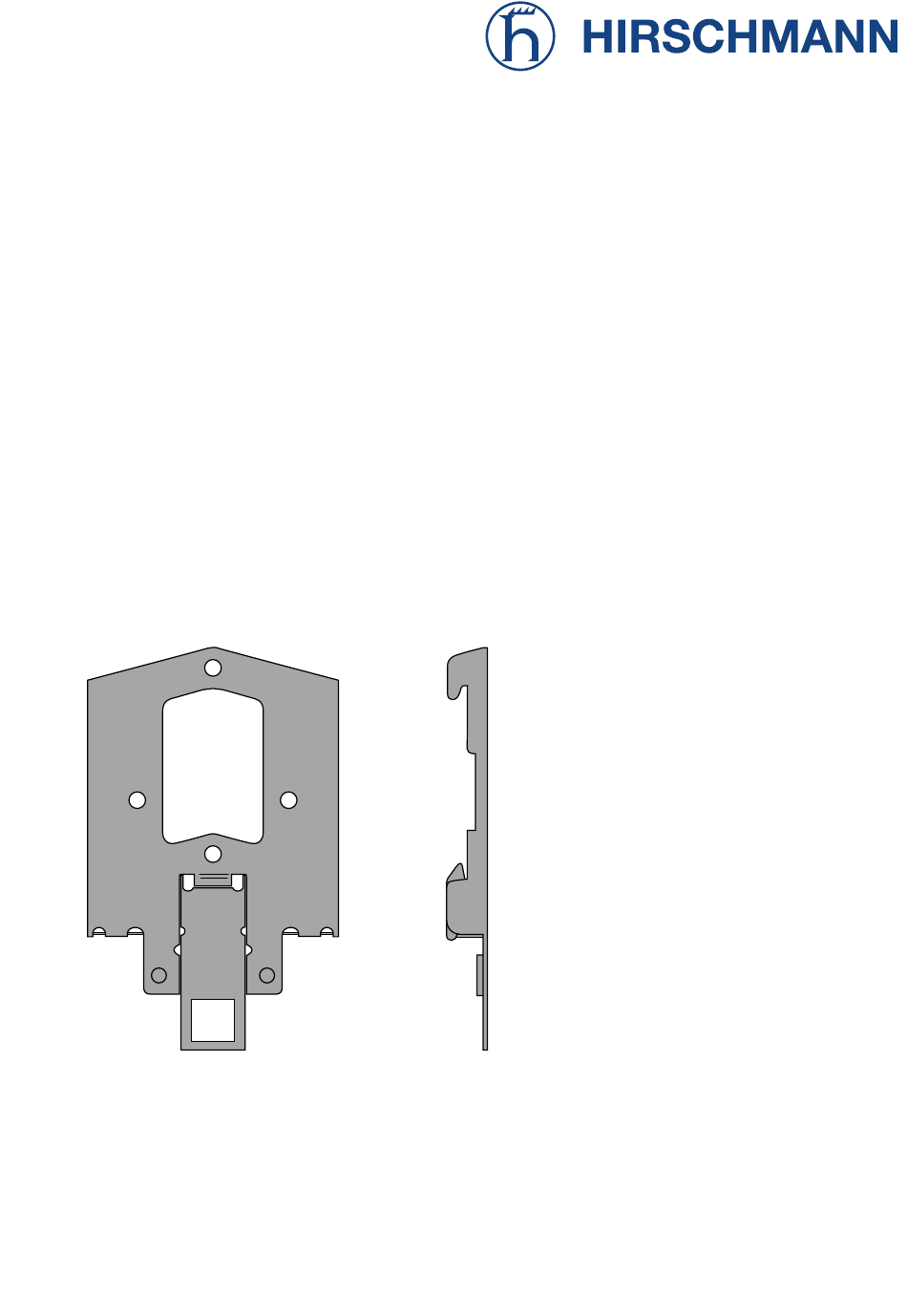

Hutschienenadapter
Beschreibung und Montageanleitung
Hutschienenadapter
Description and Mounting Instructions
DIN Rail Adapter
Description et instruction de montage
Adaptateur du profilé chapeau
OZDV HA
Bestell-Nr. / Ord. no / No. réf.
933 920-001
Zur Montage von Hirschmann
Aufsteckmodulen auf einer
Standard-Hutschiene
For mounting Hirschmann
plug-on modules onto a
standard DIN rail
Pour le montage des modules
enfichables Hirschmann sur
un profilé chapeau standard
Verwendbar für die Aufsteck-
module mit den Best.-Nr.:
For use with plug-on modules
with Ord. no.:
Peut être utilisé pour les
modules enfichables portant
le numéro de commande:
943 299-021, 943 316-021,
943 341-021, 933 741-001,
943 340-021, 943 305-001,
943 305-021, 943 315-021
loading

Inhaltszusammenfassung für Hirschmann OZDV HA

  • Seite 1 Hutschienenadapter 933 920-001 Description and Mounting Instructions DIN Rail Adapter Description et instruction de montage Adaptateur du profilé chapeau Zur Montage von Hirschmann Aufsteckmodulen auf einer Standard-Hutschiene For mounting Hirschmann plug-on modules onto a standard DIN rail Pour le montage des modules enfichables Hirschmann sur un profilé...
  • Seite 2 Profilé chapeau un profilé chapeau standard. standard Le démontage s’effectue en tirant sur la bride de l’adaptateur du profilé chapeau. Hirschmann Electronics GmbH Automation and Network Solutions Stuttgarter Strasse 45 - 51 72654 Neckartenzlingen Germany/Allemagne Tel.:...
