General instructions
Make sure that all speaker wiring is fully protected
from cutting or wear at sharp edges, which can lead
to short circuits that may damage your head unit,
amplifier and/or speaker system.
Make sure that all speaker wires are long enough in
order to avoid any mechanical stress on the wires
or the connectors.
Attention: Ensure that the loudspeakers are cor-
rectly connected (phase), i.e. plus to plus and minus
to minus. Exchanging plus and minus will result in a
significant loss of sound quality.
The positive leads of the loudspeaker system are
marked with a red stripe.
General instructions for connecting the HELIX
"Flex-Crossovers"
The crossovers of the F 62C / F 42C component
system offer two configuration options.

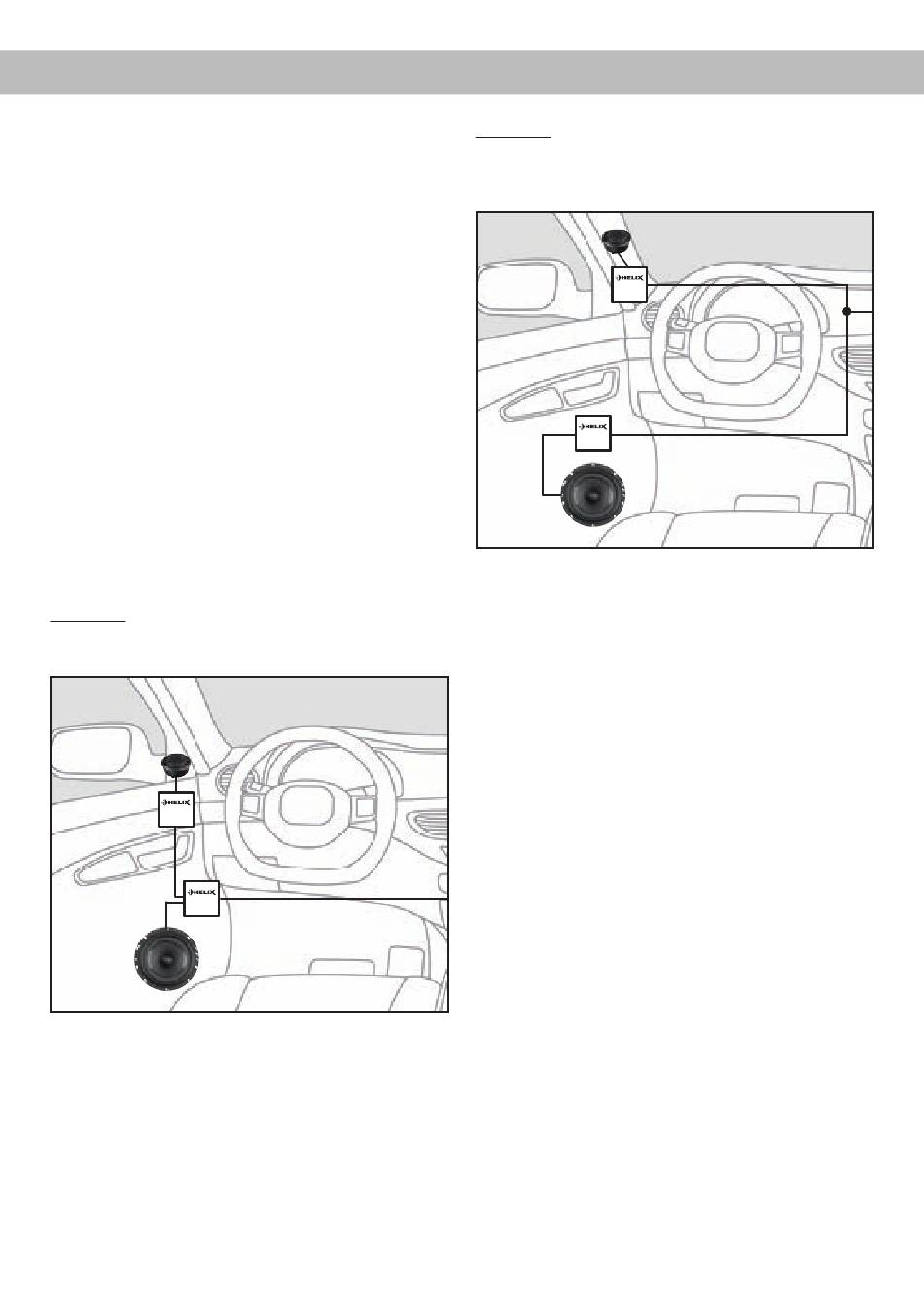

Option a: Connecting the crossovers in vehicles
with mounting positions of tweeter and woofer close
to each other, e.g. in the car door.
TWEETER
CROSSOVER
WOOFER
CROSSOVER
8
Option b: Connecting the crossovers in vehicles
with separate mounting positions of tweeter and
woofer, e.g. tweeter in the A-pillar and woofer in the
car door.
TWEETER
CROSSOVER
WOOFER
CROSSOVER
For further information regarding the connection
of the crossovers see section "Connecting the
Flex-Crossover" in this manual.
