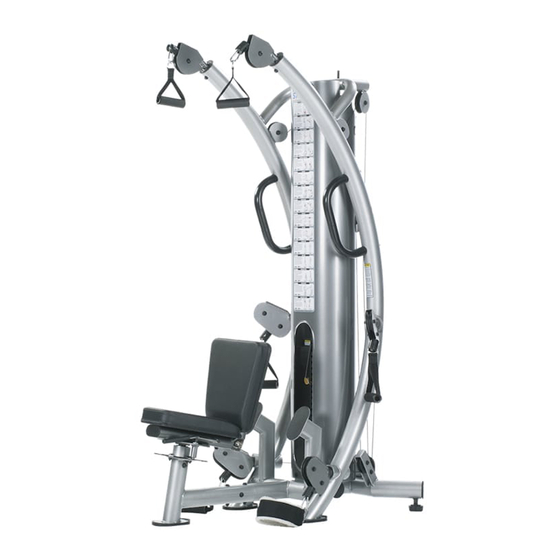

Inhaltszusammenfassung für TuffStuff SPT-6 SIX-PACK TRAINER
- Seite 1 O W N E R ’ S M A N U A L SPT-6 SIX-PACK TRAINER SPT-6 L 67” W 32” H 80” SPT-6 Rev0 AMERICA’S PREMIER EXERCISE EQUIPMENT Revision Date 10-7-2008...
-
Seite 2: Safety Precautions
Stuff Equipment This Tuffstuff product has been built to precise quality standards ool Requirements and has been carefully packaged to ensure that damage will not 1. One 7/8” combination wrench occur during shipment. - Seite 3 Step 1 Assembly List Item # Description Qty. MAIN FRAME REAR STABILIZER FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 4 NYLON INSERT THIN PATTERN LOCK NUT B/O 3/8-16 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 SPT-6 SIX PACK TRAINER...
- Seite 4 Step 2 Assembly List Item # Description Qty. ADJUSTABLE DOUBLE PULLEY BRACKET DOUBLE FLOATING PULLEY BRACKET LT DOUBLE FLOATING PULLEY BRACKET RT FRONT FRAME MAIN FRAME SELECTOR PLATE TOP BEARING HOUSING TOP SWIVEL PULLEY BRACKET FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3...
- Seite 5 Step 3 Assembly List Item # Description Qty. ADJUSTABLE DOUBLE PULLEY BRACKET LONG DOUBLE SWIVEL PULLEY BRKT SHORT DOUBLE SWIVEL PULLEY BRKT FINISHED HEX NUT B/O 1/2-13 FLAT WASHER SAE B/O 1/2” RETAINING SNAP RING EXT. PLAIN 1 1/4” SPLIT LOCK WASHER B/O 1/2” SPT-6 SIX PACK TRAINER...
- Seite 6 Step 4 Assembly List Item # Description Qty. FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 49 67 49 67 NYLON INSERT THIN PATTERN LOCK NUT B/O 3/8-16 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 56 49 56 49 49 67...
- Seite 7 SPT-6 SIX PACK TRAINER...
- Seite 8 Step 6 LAT CABLE ROUTING STEP 1 STEP 2 STARTING POINT FOLLOW LETTER SEQUENCE RUN CABLE THROUGH STARTING POINT INTO TOP SWIVEL PULLEY BRACKET AS SHOWN AND TO ROUT THE CABLE. THEN ASSEMBLE IT TO THE UNIT. STEP 3 STEP 4 STEP 5 Assembly List Item #...
- Seite 9 Step 7 LAT CABLE Assembly List Item # Description Qty. DOUBLE FLOATING PULLEY BRACKET LT DOUBLE FLOATING PULLEY BRACKET RT LAT CABLE FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/2 NYLON INSERT THIN PATTERN LOCK NUT B/O 3/8-16 NOTES: 1.
- Seite 10 SPT-6 SIX PACK TRAINER...
- Seite 11 SPT-6 SIX PACK TRAINER...
- Seite 12 Step 10 Assembly List Item # Description Qty. BACK PAD FRAME SEAT BEARING HOUSING FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 1/2-13 X 6 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3/4 NYLON INSERT THIN PATTERN LOCK NUT B/O 1/2-13 SPLIT LOCK WASHER B/O 3/8”...
- Seite 13 Step 11 Assembly List Item # Description Qty. WEIGHT SHIELD FLAT WASHER SAE B/O 1/4” HEX HEAD CAP SCREW GR-5 B/O 1/4-20 X 3/4 MAKE NECESARY ADJUSTMENTS ON BOTH ADJUSTABLE ADAPTERS SPT-6 SIX PACK TRAINER...
- Seite 14 Step 12 Assembly List Item # Description Qty. BACK PAD SEAT PAD FLAT WASHER SAE B/O 3/8” HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 SPT-6 SIX PACK TRAINER...
- Seite 15 43 70 43 70 SEE VIEW 2 VIEW 1 VIEW 2 49 67 49 67 56 49 56 49 SEE VIEW 1 SPT-6 EXPLODED VIEW SPT-6 SIX PACK TRAINER...
- Seite 16 DECAL WEIGHT NUMBERS REF TP 10 (150 lbs) BNH1730 SUPER LUBE TEFLON LUBRICANT 82340 BNH0704 EDGE PROTECTOR CHROME 11 GA TUFFSTUFF LOGO ALUMINUM SMALL (REV 1) BNH1323 BNH1724 FINISHED HEX NUT B/O 1/2 13 BNH0201 U STYLE TAPPED HOLE NUT 1/4 20 BNH0708 FINISHED HEX NUT B/O M10 1.5...
-
Seite 17: Maintenance
Maintenance TuffStuff Basic Strength Equipment Safety and General Maintenance All TUFFSTUFF strength equipment is designed and manufactured to offer maximum, long-life service with minimal maintenance. However, safety inspection and routine maintenance in your facility should be the upmost importance in your daily operation. Information presented in these pages will serve as a basic guideline to design your own inspection procedures. - Seite 18 Bearing and linear bearings systems have advanced over the years but they must be maintained on a regu- lar basis if you expect them to last and perform effi ciently. TuffStuff uses only the highest quality bearings and linear motion components that are virtually trouble-free but requires the regular preventive maintenance to insure long-lasting performance.
- Seite 19 TuffStuff. Limitations: The foregoing shall constitute the sole remedy of the purchaser and the sole liability of TuffStuff with regard to warranty, whether express or implied by operation of law or otherwise, including but not limited to any implied warranties of merchantability or fitness.
