Camera connectors

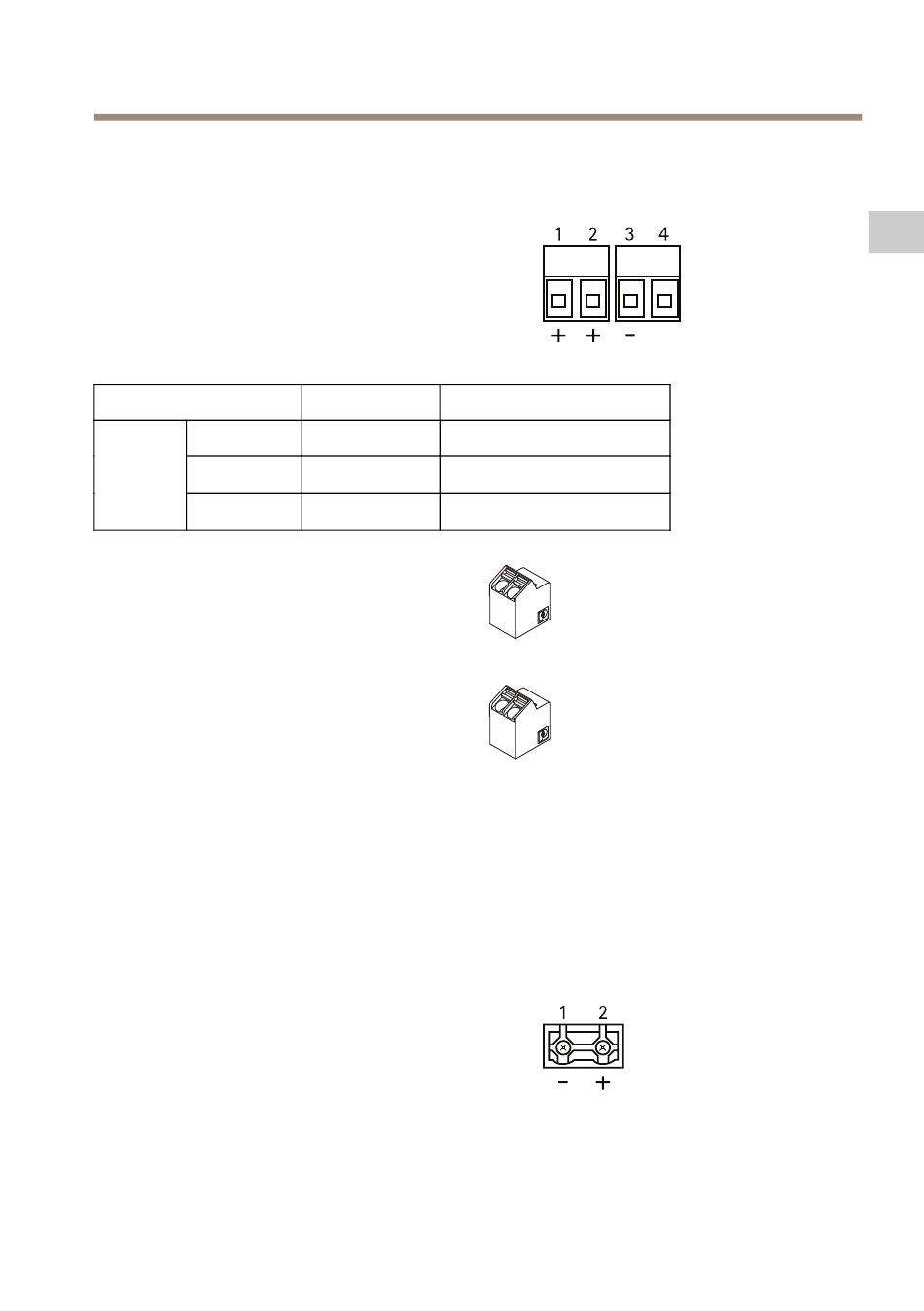

Power connector
Two 2-pin terminal blocks for power output (pin 4
not used).
Function
DC 24 V DC
output
0 V DC (-)
N/A
Network connectors
2-pin Ethernet terminal block (x2).
I/O terminal connector
2-pin terminal block.
External connectors
Ground screw
Power connector
2-pin terminal block for power input.
AXIS T86 Media Converter Switch Series
Pin Notes
1, 2
Power out to camera
3
4
N/A
Ground screw for connecting the media converter
switch to earth ground. Make sure that both ends of
the grounding wire are in contact with their respective
grounding surfaces.
