In-Wall Bluetooth Audio Receiver

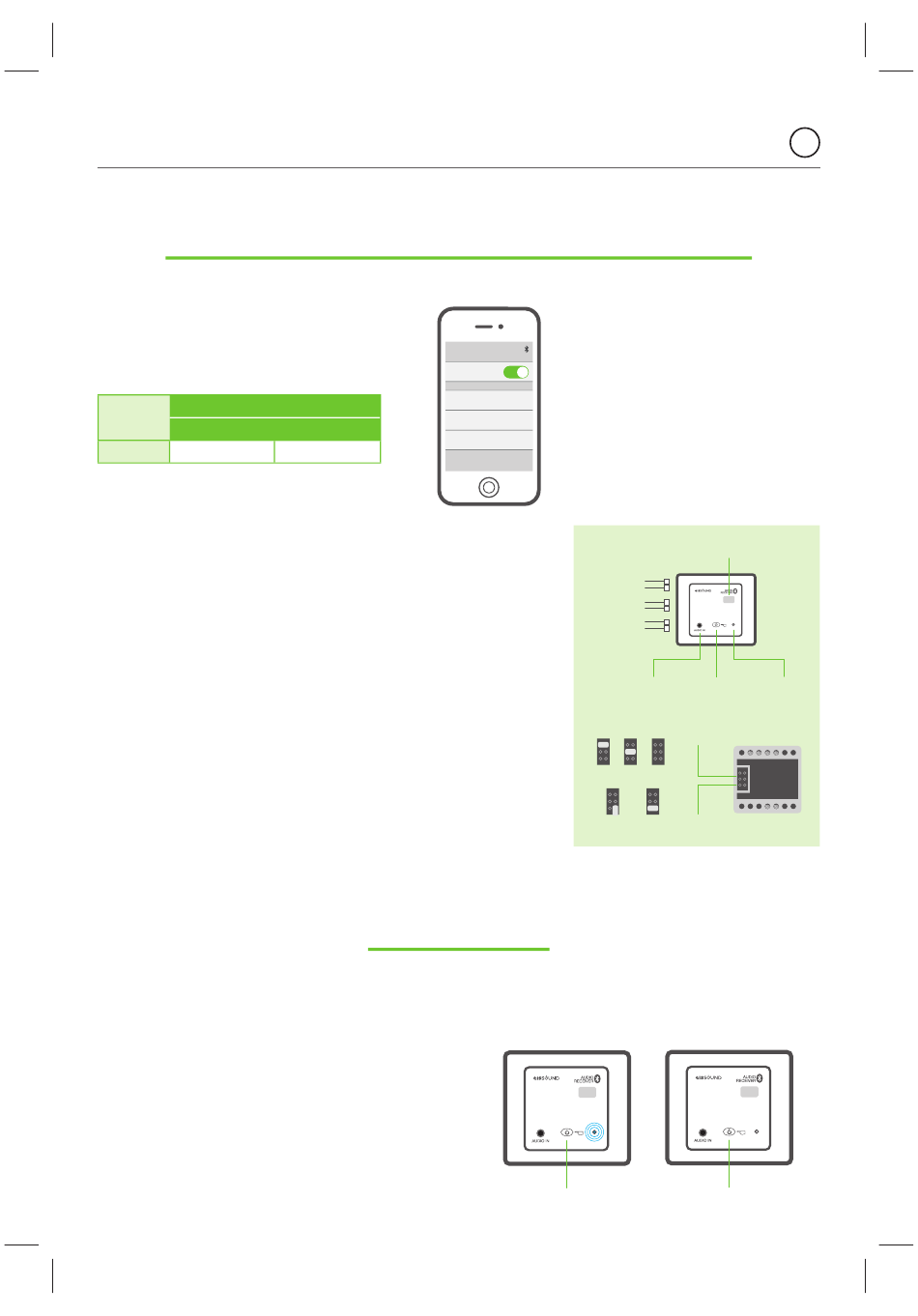

2. Electrical and functional specifi cation
Power: the Module is powered from an external
power supply unit. Any 15Vdc power supply unit
may be used depending on the number of Modules
installed and the audio output needed.
SPEAKER
POWER
SUPPLY
8 ohm
15V/0,8A 2,5+2,5Wrms
Audio output: the Module provides a stereo audio
output consisting in left and right channels.
External audio input: the Module includes an external audio input (3,5mm jack).
When the user inserts a jack the audio output switches to the signal from the
external audio source (red led) and overrides the Bluetooth mode.
Operating Key: the Module is provided with a key for operating the Bluetooth mode.
Led for signaling: the led color for signaling the status of the Module is as follows:
Blue fl ashing led = waiting for pairing and connecting with the Bluetooth device
Blue led = Module is connected to the Bluetooth device
Red led = An external audio input has been inserted
Max volume limit switch: the module have a back switch with 2 positions to select
the maximum volume allowed in normal operation. This limit will be defi ned by the
installer during the installation.
Mono/stereo switch: the module has a back switch with 1 position to allow the
installer to select the mono or stereo audio output.
Before commencing any pairing we recommend that you
check that your Bluetooth device has A2DP / AVRCP
profi les. In addition, the pairing process can vary between
manufacturers. Please read carefully your Bluetooth device
user manual beforehand. For a successful pairing make
sure the Bluetooth device is close to the Module when
performing this task.
For the purpose of this manual we have used the iPhone
Bluetooth settings.
Bluetooth
KINGBT-0521
KINGBT-0414
16 ohm
KINGBT-0707
1,5+1,5Wrms

3. Operation

Installation & User Manual
Bluetooth ID: each Module is identifi ed as
KINGBT-XXXX where XXXX is a serial number
which permits the user to identify different
Modules that can co-exist in the same
installation. In this way, the user can choose
Connected
from his Bluetooth device the Module with
not connected
which he wishes to stream his music.
not connected
15Vdc
left speaker
output
right speaker
output
external
audio input
(jack 3,5 mm)
MAX MID
STEREO MONO
3.1. To turn ON / OFF the Module press the operating key for 4".
Bluetooth Connect
2003
4"
4"
EN
Bluetooth ID
A
B
2003
D
E
F
G
4"
operating key led for
signaling
max. volume limit jumper
LOW
mono/stereo jumper
Bluetooth Disconnect
2003
4"
4"
