muSe

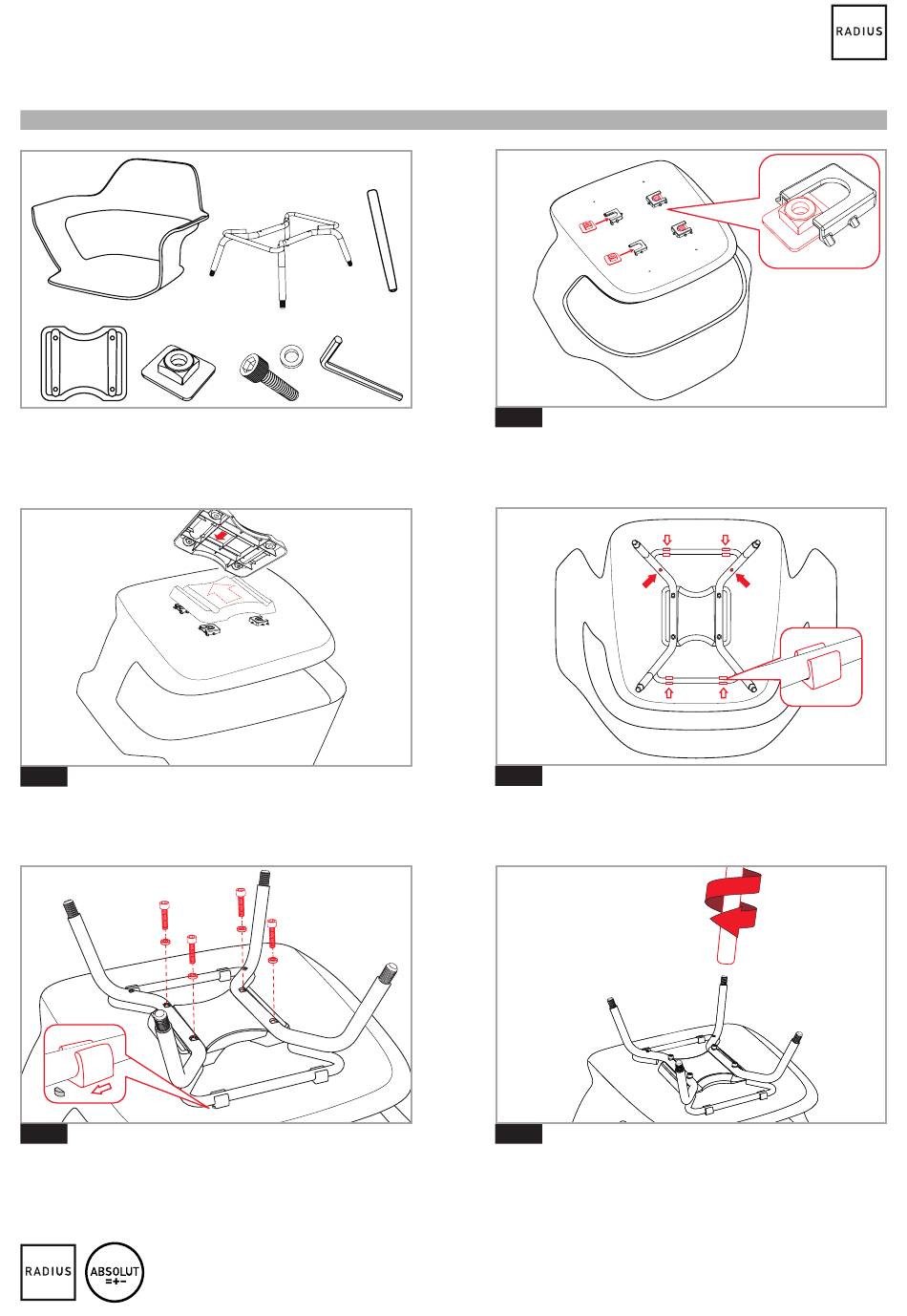

mounting inStructionS
1x seat shell; 1x frame; 4x legs; 1x carrier plate; 4x nut sheets;
4x screws; 4x washers; 1x allen key.
2
place the carrier plate on the seat shell as displayed. ensure that
the arrow on the inside points to the front and make sure that the
holes of the seat shell and carrier plate are align.
4
handtighten the screws with the washers and fasten the frame
to the seat shell and the carrier plate. make sure that the clamp
mountings rest against the upstanding markings.
1
turn the seat shell upside down and slide the nut sheets into the
provided openings.
3
place the frame on the carrier plate and ensure that the nothes in
the frame face forward and turn the flat side of the clamp moun-
tings to the seat shell.
5
tighten the legs to the frame. lastly tighten all the screws firmly.
thank you for choosing a product from RADIUS DESIGN.
you can find more products at:
www.radius-design.com
clamp mountings
