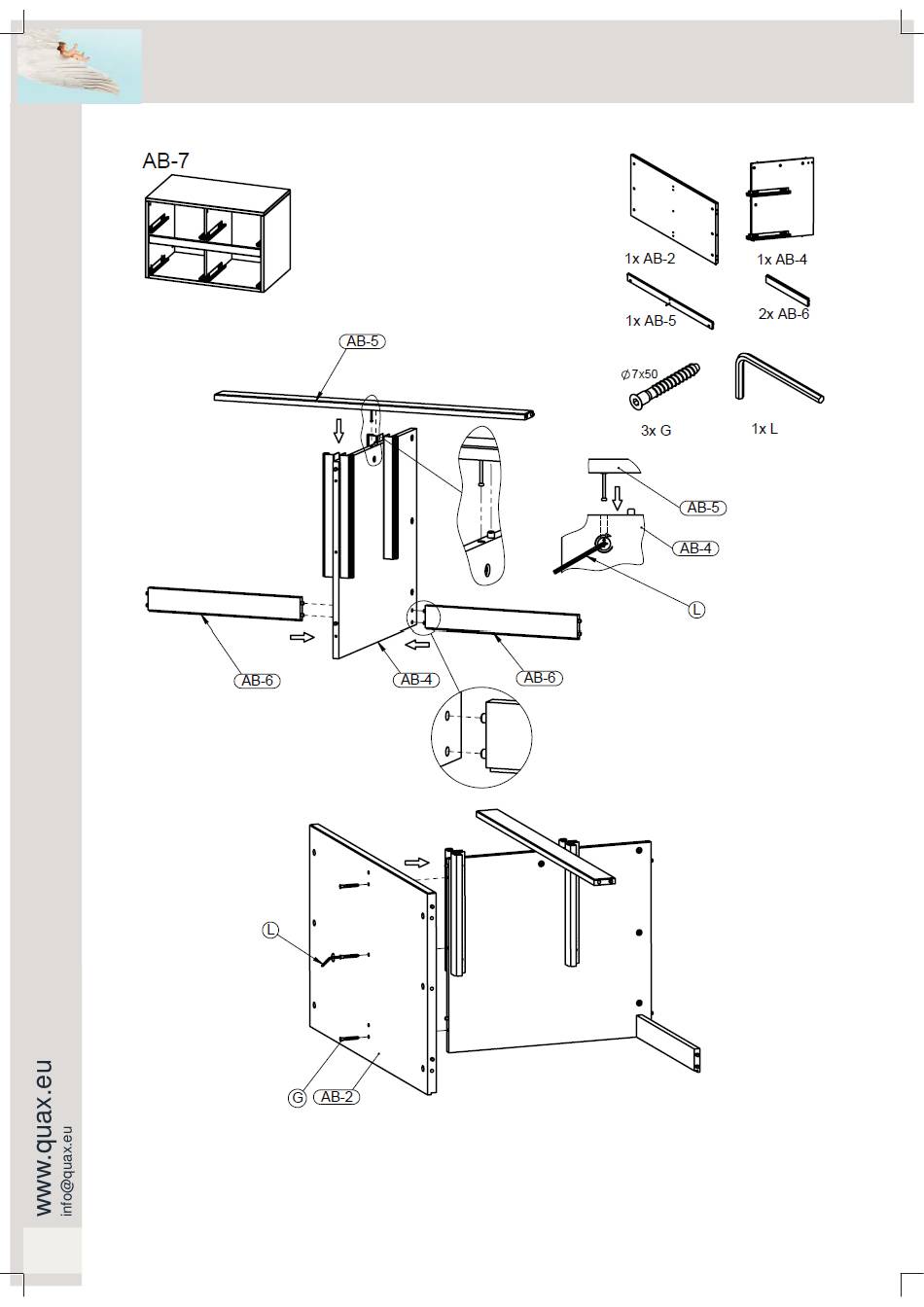

Step 8 : Use the assembled parts AB2, AB4, AB5 and AB6 and three wood screws G
Push the upper crossbars (AB6) with their wooden dowels into the drillings of the intermediate side. Push the
frontal crossbar (AB5) with its connector into the hole at the front of the intermediate side (AB4). Tighten the ec-
centric. Place the bottom (AB2) with its holes on the drillings of the intermediate side. Push three wood screws
(G) through the holes of the bottom and tighten in the intermediate side.
58
Commode met vier laden
54 03 26Pxx
Kommode mit vier Schubladen
Commode avec quatre tiroirs
Chest of four drawers
