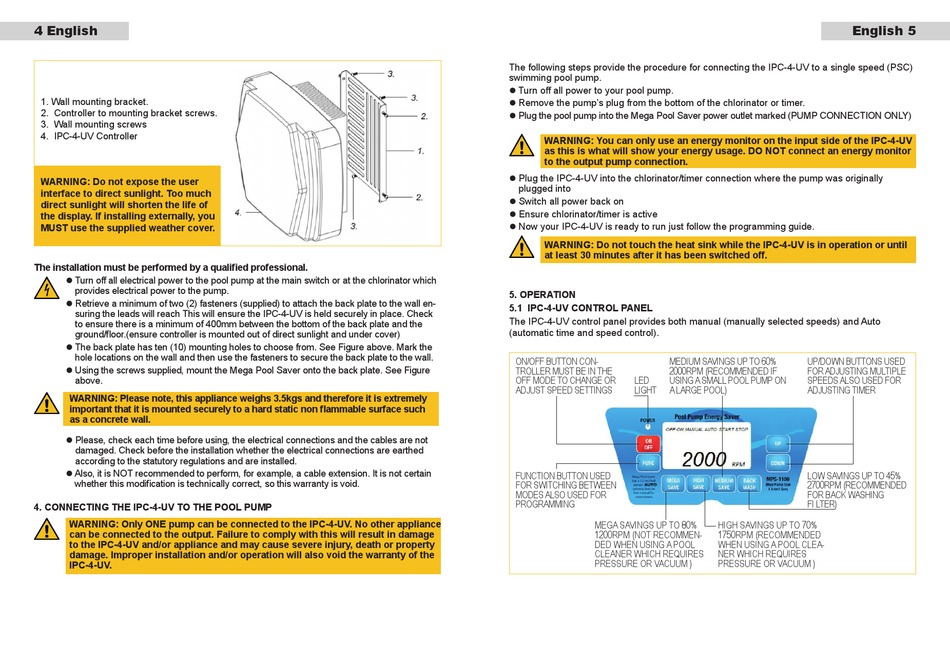

1. Wall mounting bracket.
2. Controller to mounting bracket screws.
3. Wall mounting screws
4. IPC-4-UV Controller
WARNING: Do not expose the user
interface to direct sunlight. Too much
direct sunlight will shorten the life of
the display. If installing externally, you
MUST use the supplied weather cover.
The installation must be performed by a qualified professional.
l Turn off all electrical power to the pool pump at the main switch or at the chlorinator which
provides electrical power to the pump.
l Retrieve a minimum of two (2) fasteners (supplied) to attach the back plate to the wall en-
suring the leads will reach This will ensure the IPC-4-UV is held securely in place. Check
to ensure there is a minimum of 400mm between the bottom of the back plate and the
ground/floor.(ensure controller is mounted out of direct sunlight and under cover)
l The back plate has ten (10) mounting holes to choose from. See Figure above. Mark the
hole locations on the wall and then use the fasteners to secure the back plate to the wall.
l Using the screws supplied, mount the Mega Pool Saver onto the back plate. See Figure
above.
WARNING: Please note, this appliance weighs 3.5kgs and therefore it is extremely
important that it is mounted securely to a hard static non flammable surface such
as a concrete wall.
l Please, check each time before using, the electrical connections and the cables are not
damaged. Check before the installation whether the electrical connections are earthed
according to the statutory regulations and are installed.
l Also, it is NOT recommended to perform, for example, a cable extension. It is not certain
whether this modification is technically correct, so this warranty is void.
4. CONNECTING ThE IPC-4-UV TO ThE POOL PUMP
WARNING: Only ONE pump can be connected to the IPC-4-UV. No other appliance
can be connected to the output. failure to comply with this will result in damage
to the IPC-4-UV and/or appliance and may cause severe injury, death or property
damage. Improper installation and/or operation will also void the warranty of the
IPC-4-UV.
The following steps provide the procedure for connecting the IPC-4-UV to a single speed (PSC)
swimming pool pump.
l Turn off all power to your pool pump.
l Remove the pump's plug from the bottom of the chlorinator or timer.
l Plug the pool pump into the Mega Pool Saver power outlet marked (PUMP CONNECTION ONLY)
WARNING: you can only use an energy monitor on the input side of the IPC-4-UV
as this is what will show your energy usage. DO NOT connect an energy monitor
to the output pump connection.
l Plug the IPC-4-UV into the chlorinator/timer connection where the pump was originally
plugged into
l Switch all power back on
l Ensure chlorinator/timer is active
l Now your IPC-4-UV is ready to run just follow the programming guide.
WARNING: Do not touch the heat sink while the IPC-4-UV is in operation or until
at least 30 minutes after it has been switched off.

5. OPERATION

5.1 IPC-4-UV CONTROL PANEL
The IPC-4-UV control panel provides both manual (manually selected speeds) and Auto
(automatic time and speed control).
ON/OFF BUTTON CON- MEDIUM SAVINGS UP TO 60%
TROLLER MUST BE IN THE 2000RPM (RECOMMENDED IF
OFF MODE TO CHANGE OR LED USING A SMALL POOL PUMP ON
ADJUST SPEED SETTINGS LIGHT A LARGE POOL)
FUNCTION BUTTON USED
FOR SWITCHING BETWEEN
MODES ALSO USED FOR
PROGRAMMING
MEGA SAVINGS UP TO 80%
1200RPM (NOT RECOMMEN-
DED WHEN USING A POOL
CLEANER WHICH REQUIRES
PRESSURE OR VACUUM )
English 5
UP/DOWN BUTTONS USED
FOR ADJUSTING MULTIPLE
SPEEDS ALSO USED FOR
ADJUSTING TIMER
LOW SAVINGS UP TO 45%
2700RPM (RECOMMENDED
FOR BACK WASHING
FI LTER)
HIGH SAVINGS UP TO 70%
1750RPM (RECOMMENDED
WHEN USING A POOL CLEA-
NER WHICH REQUIRES
PRESSURE OR VACUUM )
