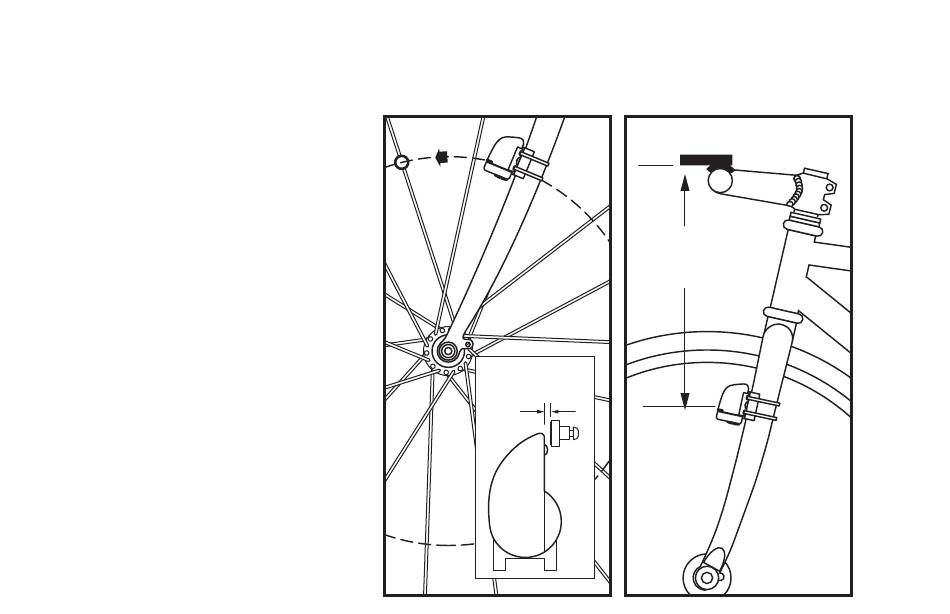

Installing the speed sensor
• The sensor should be
mounted with cap of
battery door toward the
ground with distance
between sensor and
handlebar no more
than 24in (0.6m).
• Adjust magnet position
so magnet is aligned
with line on bottom of
edge of sensor and
1/32 – 1/8 in (1-3 mm)
of separation. DO
NOT over tighten the
magnet.
20-28 in.
500-700mm
1/32-1/8 in .
1-3mm
07
