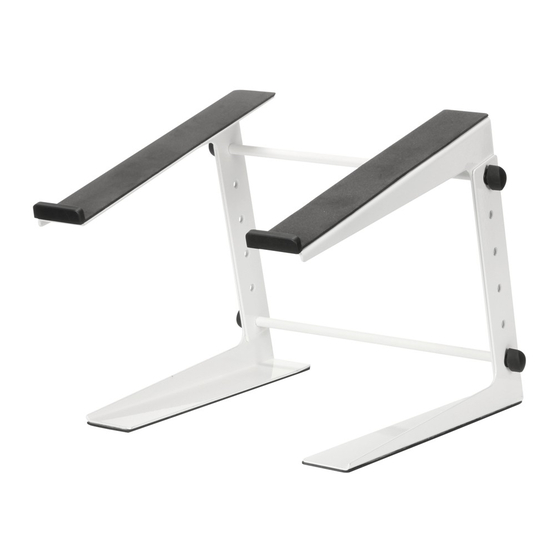

SLT001 / SLT001W MULTI-PURPOSE LAPTOP STAND
PARTS
Place Upper
support over
Lower support, so
that the Upper
Support is on the
outside of the
stand
Knobs must be
spaced at least 2
holes apart
Figure A
1. Take one of the upper supports and place it over the outside of one of the lower supports (see figure A). Align the upper support holes with the
lower support mounting holes to obtain the desired height.
2. Place one knob at a time through the mounting holes (must be spaced at least 2 holes apart).
3. Take a stabilizer bar and screw the top knob into the end of the stabilizer bar. Repeat with bottom knob.
4. Install 1 inch spacers on each stabilizer bar to increase stand width. Repeat step 3 with the other upper support and lower support for the opposite
side of the stand (see Figure B). Secure all knobs tight to minimize stand wobble.
Table top assembly
1. Attach flat foot bar to lower support
with two (2) A-screws and washers
(see figure C).
2. Repeat above with the other lower
support for the opposite side of the
stand.
Tel.: (+49) 60 81 / 94 19 0 Fax.: (+49) 60 81 /94 19 1000 e-mail: mail@adamhall.com
Figure B
Table C-clamp assembly
1. Turn clamp with knobs facing down
and attach to lower support with two
(2) B-screws and B-washers (see
figure D).
2. Repeat above with the other lower
support for the opposite side of the
stand.
Adam Hall GmbH · Daimlerstr. 9 61267 Neu-Anspach Germany
DJ coffin C-clamp assembly
1. Turn clamp with knobs facing back
of stand and attach to lower support
with two (2) B-screws and B-washers
(see figure E).
2. Repeat above with the other lower
support for the opposite side of the
stand.
SUPPOR
