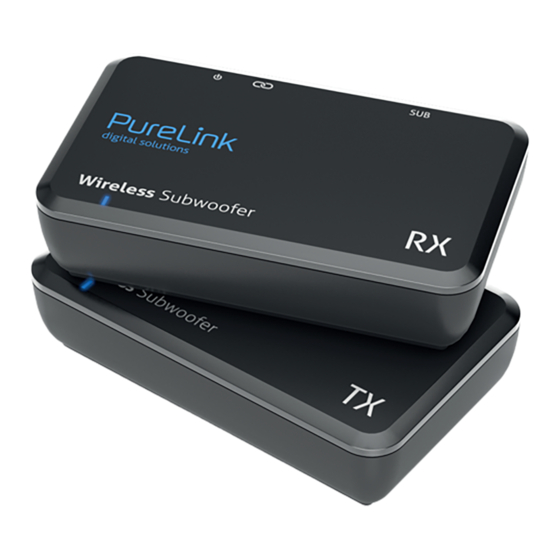

1. INTRODUCTION CSW620 is a wireless subwoofer kit designed for wireless subwoofer installation. It works on the 2.4 GHz ISM frequency band with automatic Wifi detection for fast connection and crystal clear audio playback. 2. INTENDED USE This product is intended for indoor use only. Do not use it outdoors. Contact with moisture, e.g.
4. SAFETY INSTRUCTIONS Read the operating instructions carefully and especially observe the safety information. If you do not fol- low the safety instructions and information on proper handling in this manual, we assume no liability for any resulting personal injury or damage to property. Such cases will invalidate the warranty/guarantee. The device is not a toy.
DANGER! Excessive sound pressure from ear and headphones can cause hearing damage. If you hear loud music for a long time, your hearing can be impaired. Set an appropriate volume. Suffocation Risk! Keep packaging materials away from children! This product contains radios that emit electromagnetic fields. These electromagnetic fields may in- terfere with pacemakers, defibrillators, and other medical devices.
• Consult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by PureLink could void the elec- tromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the...
8. CONNECTION DIAGRAM Speaker Speaker Speaker front left front right center CSW620 TX Amplifier Subwoofer CSW620 RX Speaker Speaker rear left rear right ENGLISH...
Subwoofer of your 5.1 audio system. Step3: Take out the AC/DC Power Supply. Plug the DC end to the DC socket of the CSW620 TX and the AC end to your 90~240V AC outlet.
Seite 10
RCA L/R socket of the CSW620 TX and the other end to the RCA L/R socket of your 5.1 audio system. Step3: Take out the AC/DC Power Supply. Plug the DC end to the DC socket of the CSW620 TX and the AC end to your 90~240V AC outlet. -10-...
Subwoofer socket of your amplifier. Step3: Take out the AC/DC Power Supply. Plug the DC end to the DC socket of the CSW620 RX and the AC end to your 90~240V AC outlet.
12. PAIRING Step1: Press and hold the “connect” button on TX for 2 seconds until the Blue LED starts to blink. (The LED blinks 3 times per second) Now it is in Pairing mode for the next 30 seconds. Step2: Within 30 seconds, must press and hold the “connect”...
Play the DVD or Blu-ray DVD with 5.1 CH audio. Note: The CSW620 always prefer to use the signal of the RCA Subwoofer Cable. If there is no signal for 15 Seconds from the RCA Subwoofer Cable then it switches automatically to the RCA L/R Cable Signal.
14. TROUBLESHOOTING No audio output signal: Check if the power supply works of TX and RX. Check the audio connection on TX and RX. Make sure the volume control of RX is in the desired level. If the red LED light of the TX is on, then there is no audio signal active.
Any use other than described in this user`s manual is not permitted and causes loss of warranty, loss of guarantee, and non-liability. 18. CE CONFORMITY PureLink GmbH hereby declares that the CSW620 radio communication system complies with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.purelink.de/ce/4251364708989_CE.pdf...
1. EINLEITUNG CSW620 ist ein drahtloses Subwoofer-Kit, das für die kabellose Subwoofer Installation entwickelt wurde. Es arbeitet über den 2,4-GHz-ISM-Frequenzband mit automatischer WLAN-Erkennung für ei- nen schnellen Verbindungsaufbau und kristallklare Audiowiedergabe. 2. BESTIMMUNGSGEMÄSSER GEBRAUCH Eine Verwendung ist nur in geschlossenen Räumen, also nicht im Freien erlaubt. Der Kontakt mit Feuchtigkeit, z.B.
4. SICHERHEITSHINWEISE Lesen Sie sich die Bedienungsanleitung aufmerksam durch und beachten Sie insbesondere die Si- cherheitshinweise. Falls Sie die Sicherheitshinweise und die Angaben zur sachgemäßen Handhabung in dieser Bedienungsanleitung nicht befolgen, übernehmen wir für dadurch resultierende Perso- nen-/Sachschäden keine Haftung. Außerdem erlischt in solchen Fällen die Gewährleistung/Garantie. Dieses Produkt ist kein Spielzeug.
Betreiben Sie das Produkt nicht mit fremden Netzteilen. Trotz passender Stecker kann dies zu Schä- den an dem Produkt, Signalquelle und Audioanlage führen! GEFAHR! Übermäßiger Schalldruck von Ohr- und Kopfhörern kann zu Gehörschädigungen führen. Wenn Sie über längere Zeit laute Musik hören, kann Ihr Hörvermögen beeinträchtigt werden. Stellen Sie eine angemessene Lautstärke ein.
Empfängers versorgt wird. • Wenden Sie sich an den Händler oder einen erfahrenen Radio-/Fernsehtechniker. Wichtig: Jegliche Änderungen oder Modifizierungen des Geräts, die von PureLink nicht ausdrücklich genehmigt wurden, können die elektromagnetische Verträglichkeit (EMV) ungültig machen und ei- nen Entzug der Betriebserlaubnis für dieses Gerät zur Folge haben.
Schritt2: Nehmen Sie ein Subwoofer-Kabel (lila), verbinden Sie den Cinch-Stecker mit der SUB-Buchse am TX-Gerät und das andere Ende mit dem Subwoofer Ihres 5.1-Audiosystems. Schritt3: Nehmen Sie das AC/DC-Netzteil heraus. Stecken Sie das DC-Ende in die DC-Buchse des CSW620 TX und das AC-Ende in die 90~240V AC-Steckdose. DEUTSCH -23-...
Seite 24
Schritt2: Nehmen Sie ein RCA L / R-Kabel (weiß und rot). Bitte folgen Sie dem Farbcode und verbinden Sie ihn mit der RCA L / R-Buchse des CSW620 TX und dem anderen Ende mit der RCA L / R-Buchse Ihres 5.1-Audiosystems.
Schritt3: Nehmen Sie das AC/DC-Netzteil heraus. Stecken Sie das DC-Ende in die DC-Buchse des CSW620 RX und das AC-Ende in die 90~240V AC-Steckdose. Wenn Sie die Installation wie oben beschrieben durchgeführt haben, können Sie den CSW620 sofort verwenden, da das Gerät bereits gekoppelt ist.
12. KOPPLUNG Schritt1: Halten Sie die „Connect“ -Taste am TX 2 Sekunden lang gedrückt, bis die blaue LED zu blinken beginnt. (Die LED blinkt 3 mal pro Sekunde) Nun ist es für die nächsten 30 Sekunden im Kopplungsmodus. Schritt2: Drücken und halten Sie die „Connect“ -Taste 2 Sekunden in innerhalb der nächsten 30 Sekunden.
Pegel ein. Schritt2: Spielen Sie die DVD oder Blu-ray DVD mit 5.1 CH Audio. Hinweis: Der CSW620 verwendet immer das Signal des RCA-Subwoofer-Kabels. Wenn für 15 Sekunden kein Signal vom RCA-Subwoofer-Kabel ausgegeben wird, schaltet es automatisch auf das RCA L / R-Kabelsignal um.
14. PROBLEMBEHEBUNG Kein Audio Ausgangssignal: Überprüfen Sie die Netzteile von dem TX und RX funktionieren. Überprüfen Sie die Audio Verbindung von dem TX und RX. Stellen Sie sicher dass der Lautstärkeregler auf die gewünschte Lautstärke eingestellt ist. Wenn die rote LED leuchtet, dann ist kein aktives audio signal vorhanden.
Ein anderer als in dieser Betriebsanleitung beschriebener Einsatz ist unzulässig und führt zu Gewähr- leistungsverlust, Garantieverlust und Haftungsausschluss. 18. CE KONFORMITÄT Hiermit erklärt PureLink GmbH, dass der Funkanlagentyp CSW620 der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgende Internetadresse verfügbar:...
