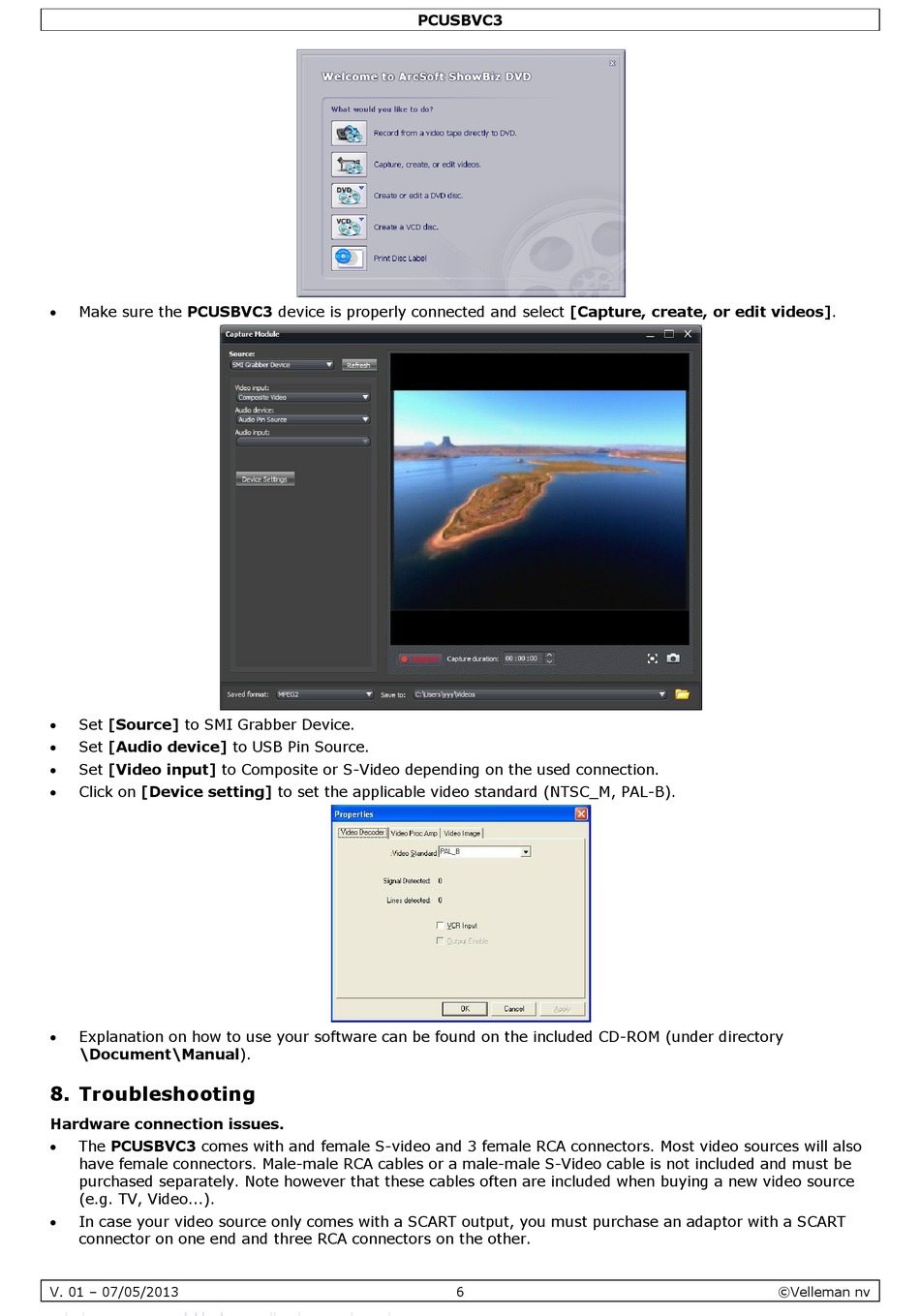

 Make sure the PCUSBVC3 device is properly connected and select [Capture, create, or edit videos].
 Set [Source] to SMI Grabber Device.
 Set [Audio device] to USB Pin Source.
 Set [Video input] to Composite or S-Video depending on the used connection.
 Click on [Device setting] to set the applicable video standard (NTSC_M, PAL-B).
 Explanation on how to use your software can be found on the included CD-ROM (under directory
\Document\Manual).
8. Troubleshooting
Hardware connection issues.
 The PCUSBVC3 comes with and female S-video and 3 female RCA connectors. Most video sources will also
have female connectors. Male-male RCA cables or a male-male S-Video cable is not included and must be
purchased separately. Note however that these cables often are included when buying a new video source
(e.g. TV, Video...).
 In case your video source only comes with a SCART output, you must purchase an adaptor with a SCART
connector on one end and three RCA connectors on the other.
