Chal-Tec oneConcept Anleitung

English

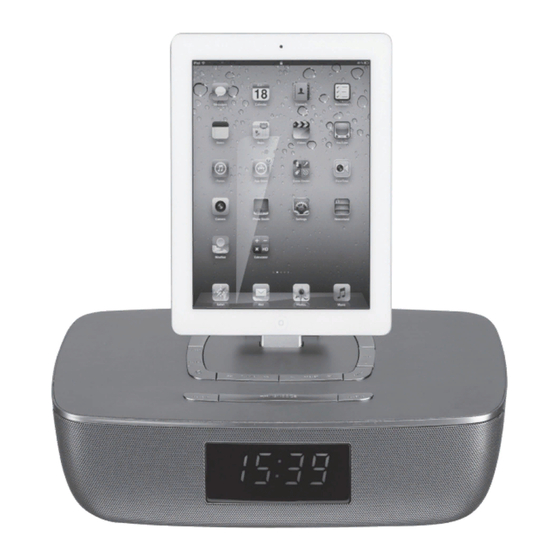

oneConcept Bluetooth Radiowecker
10027093
product overview
front view
1. IR Sensor
2. LCD Display
3. BT Indicator
1 2 3
back view
1. Mains Power Cable
2. FM ANT
3. LINE IN
1 2 3
top view
1
2
3
4
5
6
1. iPod / iPhone / iPad Dock 6. ALARM 1 / ALARM 2 Buttons
2. SLEEP Button
7. + VOLUME - Buttons
3. CLOCK Button
8. SOURCE Button
4.
STANDBY Button 9. PRESET Button
5.
TUNING Buttons
10. /SNOOZE Button
listening to iPod / iPhone / iPad
1. Press SOURCE on the unit and select DOCK or press DOCK/LINE IN on the remote
control.
2. Place the iPod / iPhone / iPad in the dock on the unit.
3. To start / pause/ resume play, press on the unit or on the remote control.
4. To skip a track, press or on the unit or or
charging the iPod / iPhone / iPad
When the unit is connected to a switched on mains power supply, the docked iPod / iPhone
/ iPad will being charging automatically.
AUX operation
The unit supports listening to an external audio device.
1. Press SOURCE on the unit and then select LINE IN or press DOCK/LINE IN on the
remote control for the same function.
2. Connect the cable to the LINE IN socket at the rear of the unit and the AUDIO OUT
jack to the external device.
3. You can now playback track on the external audio device.
BT operation
You can listen to tracks from a media device if it is connected to the unit via BT.
To connect your device to the unit via BT, follow the steps below:
1. Press SOURCE on the unit to select "bt" or press
once a second.
2. Turn on the BT function on your device.
3. Search for other BT devices, then select "iCRIPBT12" in the pairing list.
4. Enter default password "0000". Some BT devices may not require password pairing.
5. On successful pairing, the unit will beep and the blue LED will light up solidly.
Specifications
power supply
100-240V ~ 50/60 Hz
power consumption 20W
radio frequency range
FM 87.5 – 108 MHz
dimensions
270 mm (W) x 75 mm (H) x 170 mm (D)
Features and specifications are subject to change without prior notice.
The following items are included:
The Main Unit
Remote Control AUX-IN cable
LCD display window
1
z Z
2
1 2
3
PM
4
FM
1. SLEEP Indicator 5. ALARM 2 Indicator
2. ALARM 1 Indicator 6. iPod / iPhone / iPad Indicator
3. PM Indicator
7. LINE IN / AUX IN Indicator
4. FM Radio Indicator
bottom view
You can only use the AC adapter for the power supply.
Batteries (not supplied) are used to remember the clock
setting if the mains power is interrupted.
7
8
9
10
on the remote control.
on the remote control. The blue LED next to the display will blink
remote control
STANDBY Button
1.
1
2. OK/ / / / Buttons
3. /SNOOZE Button
4. DOCK/LINE IN
2
5. CLOCK/PROG Button
S-BASS Button
6.
3
P-EQ Button
7.
4
ALM 1 / ALM 2 Buttons
8.
5
9. FM Button
6
10. BT Button
11. MENU/DIM Button 7
12. MUTE Button
8
13. SLEEP Button
14. VOLUME + / - Buttons
setting the alarms
1. Ensure that the clock is set correctly.
2. Press and hold ALARM 1 or ALARM 2 on the unit or press ALM 1 or ALM 2 on the remote control until
3. Press or on the unit, or or on the remote control to the select alarm source for both alarms.
4. Then press ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control.
5. Use or on the unit, or or on the remote control repeatedly to set the hour.
6. Press ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control to confirm. The minute digits will then
begin to blink.
7. Set the minutes using or on the unit, or
8. Press ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control to confirm. The display will show Volume level.
5
6
7
1
9. To set volume, press or on the unit, or
10. Press ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control to confirm. Alternatively, the display will stop
blinking automatically.
activate/ deactivate alarm timer
1. Press ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control to view the alarm settings.
2. Repeat step (1) to activate or deactivate the timer.
• To stop the alarm, press either ALARM 1 or ALARM 2 on the unit or ALM 1 or ALM 2 on the remote control.
• The alarm will continue to repeat daily if it is not deactivated.
snooze alarm
When the alarm(s) sound, press SNOOZE if you want to stop the alarm temporarily. The alarm will resume 5 minutes later.
To turn o the Snooze fcuntion, press ALARM 1 or ALARM 2 on the unit or press ALM 1or ALM 2 on the remote control.
set sleep timer
The clock radio will switch to standby mode automatically after a preset period.
• To activate the timer, press SLEEP repeatedly to select the time period (in minutes). When the timer is activated,
• To deactivate the timer, press SLEEP repeatedly until OFF appears.
basic operation
powering ON/OFF
STANDBY on the unit or the remote control to switch on the unit. The LCD display will show the Clock.
1. Press
2. Press STANDBY to switch the unit back to standby mode.
3.
selecting modes
• Ensure the unit is in Standby mode before selecting a function.
• Use either SOURCE on the unit, or DOCK/LINE IN, FM, BT on the remote control to select a function. The functions will cycle
through the following sequence:
FM
BT
iPod
adjusting the volume
• Press VOLUME + / – to adjust the volume.
MUTE on the remote control. Press MUTE again or press VOLUME + / – to resume
•
normal listening.
setting the clock
1. In Standby mode, press and hold CLOCK on the unit or CLOCK/PROG on the remote control until 24H on the LCD display
starts flashing.
2. You can choose between a 12 hour or 24 hour clock. Press
3. Press CLOCK on the unit or CLOCK/PROG on the remote control to confirm the clock format.
4. When the HOUR digits flash, set the hour using
5. Press CLOCK on the unit or CLOCK/PROG on the remote control to start the MINUTE digits flashing.
6. Set the minutes using or on the unit, or
Press CLOCK on the unit or CLOCK/PROG on the remote control to confirm the Clock setting.
7.
radio operation
This unit only receives FM radio station signals.
tuning into stations
1. Press FM on the unit or the remote control to select the FM tuner.
2. Then press and hold or on the unit, or
3. The radio will then tune into a station with strong reception automatically.
4. Press and hold or on the unit, or
storing stations automatically
You can store up to 20 of your favourite stations to preset stations. This will enable you to access your favourrite stations quickly
and easily.
In FM mode, press and hold CLOCK/PROG on the remote control to store the stations.
selecting preset stations
Select FM mode and then press or on the unit or
iPod / iPhone / iPad operation
The unit can support the following iPod / iPhone / iPad models.
Type Support Model
iPhone • iPhone 3G/3GS
• iPhone 4/4S
iPod • iPod touch 1 st /2 nd /3 rd /4 th Generation
(with 30-pin dock • iPod nano 1 st /2 nd /3 rd /4 th /5 th /6 th Generation
connectors)
iPad • iPad
• iPad2
• iPad 3 rd Generation
9
10
11
12
13
14
or on the remote control.
or on the remote control.
1 or 2 will appear if the timer is ON and will disappear if it is OFF.
LINE
or on the unit, or or on the remote control.
or on the unit, or or on the remote control.
or on the remote control.
or on the remote control until Srch is displayed.
or on the remote control to tune more stations.
on the remote control to select a preset number.
1 or 2 blinks.
appears.
