Touch line audio inneneinheiten für tltürsprechanlagen- 4 drähte-wohngebäude
Inhaltsverzeichnis
DE
Empfohlene Verkabelung. Installation.
4
4 Drähte
4 Drähte x 0,5 mm (Typ H03VV-F4G 0,5) für maximal 75 lm
+U
C/D
GND
6mm
25-30mm
Wohngebäude
UTP cat5e (AWG24) / FTP cat5e (AWG24)
UTP cat6 (AWG23) / FTP cat6a (AWG23).
4.1
DE

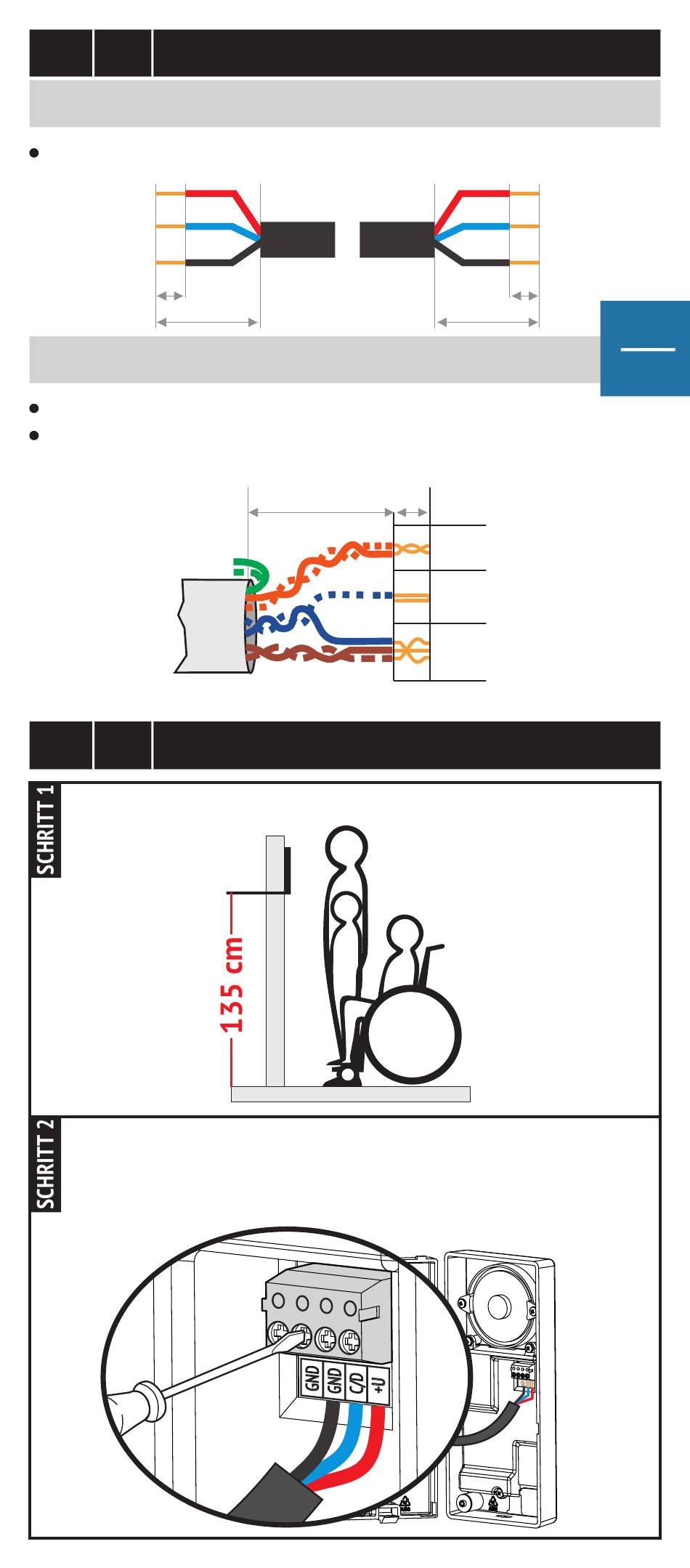

Installation der mini Inneneinheit

Befestigen Sie das rückseitige Gehäuse an der Wand H=135cm
4 Drähte-Installation
Stellen Sie die Verbindungen im Stecker auf der Rückseite her.
2
25-30mm
25-30mm
6mm
+U
C/D
GND
+U
C/D
GND
6mm
DE
2
