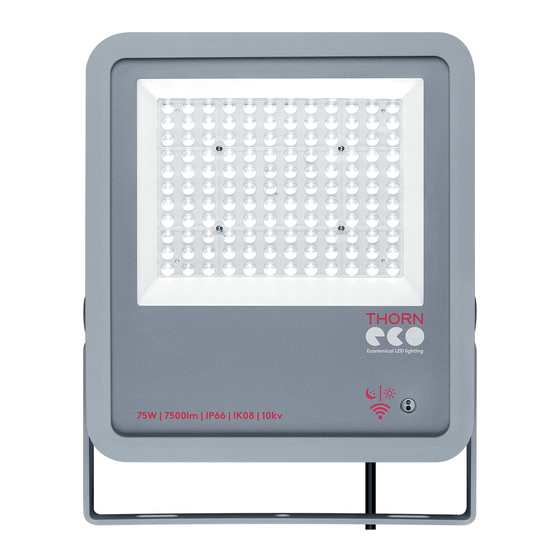

LEO LED IP66
1.Installation and commissioning may only be carried out by authorized specialists and wired in
accordance with the latest IEE electrical regulations or the national standards
2.Mains power must be switched off before carrying out installation
3.The manufacturer, shall not be liable for any damage resulting from inappropriate modifications to
the luminaire or faulty installation.
4.If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced
by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
LEO LED FL IP66 75W 840 PC
LEO LED FL IP66 100W 840 PC
LEO LED FL IP66 150W 840 PC
LEO LED FL IP66 200W 840 PC
Zumtobel Lighting GmbH Schweizer Strasse 30, A-6851 Dornbirn, Austria
SAP Code
75W
96630252
100W
96630253
150W
96630254
200W
96630255
L1 (mm)
L2 (mm)
L1
L2
W
273
285
67
273
285
67
366
394
72
366
394
72
W (mm)
H
349
349
456
456
Werbung
Inhaltszusammenfassung für Thorn ECO LEO LED IP66
- Seite 1 LEO LED IP66 1.Installation and commissioning may only be carried out by authorized specialists and wired in accordance with the latest IEE electrical regulations or the national standards 2.Mains power must be switched off before carrying out installation 3.The manufacturer, shall not be liable for any damage resulting from inappropriate modifications to the luminaire or faulty installation.
- Seite 2 LEO LED IP66 A:Screw B:Washer 75W/100W:M10x85 75W/100W: 150W/200W:M12x100 150W/200W: C:Spring washer D:Nut LEO LED 75W 180mm LEO LED 100W 180mm LEO LED 150W 180mm 75W/100W: 75W/100W:M10 LEO LED 200W 180mm 150W/200W: 150W/200W:M12 Photocell / Dämmerungssensor / Détecteur de luminosité - : ON...
