Description Of The Unit - arva 3 axes Gebrauchsanweisung

12
11
6
7
primary search
B
One rescuer
3 Axes
2
3
5
4
1
13
20 m
20 m

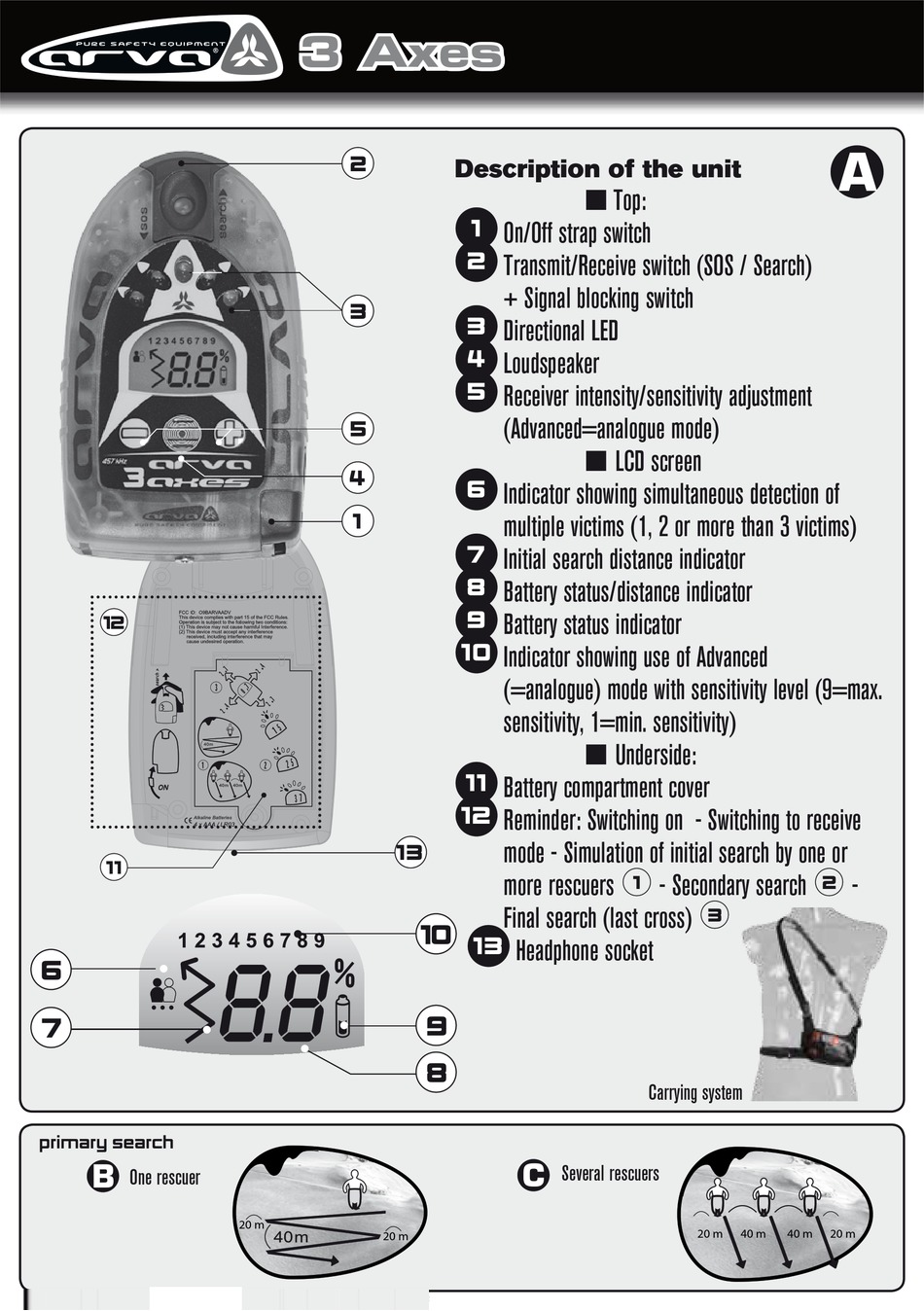

Description of the unit

n Top:
1
On/Off strap switch
2
Transmit/Receive switch (SOS / Search)
+ Signal blocking switch
3
Directional LED
4
Loudspeaker
5
Receiver intensity/sensitivity adjustment
(Advanced=analogue mode)
n LCD screen
6
Indicator showing simultaneous detection of
multiple victims (1, 2 or more than 3 victims)
7
Initial search distance indicator
8
Battery status/distance indicator
9
Battery status indicator
10
Indicator showing use of Advanced
(=analogue) mode with sensitivity level (9=max.
sensitivity, 1=min. sensitivity)
n Underside:
11
Battery compartment cover
12
Reminder: Switching on - Switching to receive
mode - Simulation of initial search by one or
more rescuers
Final search (last cross)
10
13
Headphone socket
9
8
C
Several rescuers
- Secondary search
1
3
20 m
Carrying system
20 m 40 m 40 m
A
-
2
20 m
20 m
