PROLED STICK SINGLE Bedienungsanleitung Seite 3

PROLED

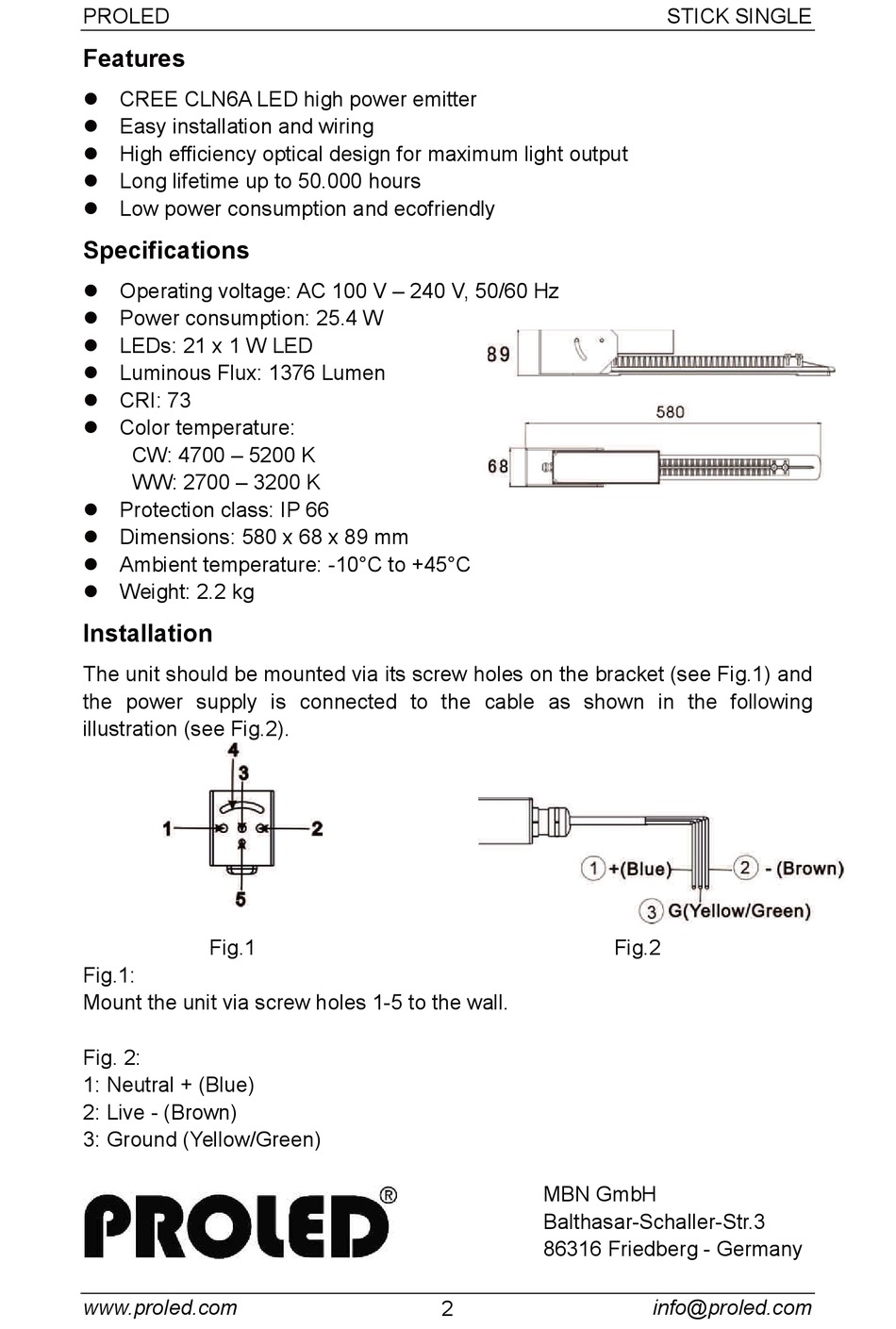

Features
 CREE CLN6A LED high power emitter
 Easy installation and wiring
 High efficiency optical design for maximum light output
 Long lifetime up to 50.000 hours
 Low power consumption and ecofriendly
Specifications
 Operating voltage: AC 100 V – 240 V, 50/60 Hz
 Power consumption: 25.4 W
 LEDs: 21 x 1 W LED
 Luminous Flux: 1376 Lumen
 CRI: 73
 Color temperature:
CW: 4700 – 5200 K
WW: 2700 – 3200 K
 Protection class: IP 66
 Dimensions: 580 x 68 x 89 mm
 Ambient temperature: -10°C to +45°C
 Weight: 2.2 kg
Installation
The unit should be mounted via its screw holes on the bracket (see Fig.1) and
the power supply is connected to the cable as shown in the following
illustration (see Fig.2).
Fig.1
Fig.1:
Mount the unit via screw holes 1-5 to the wall.
Fig. 2:
1: Neutral + (Blue)
2: Live - (Brown)
3: Ground (Yellow/Green)
www.proled.com
MBN GmbH
Balthasar-Schaller-Str.3
86316 Friedberg - Germany
2
STICK SINGLE
Fig.2
