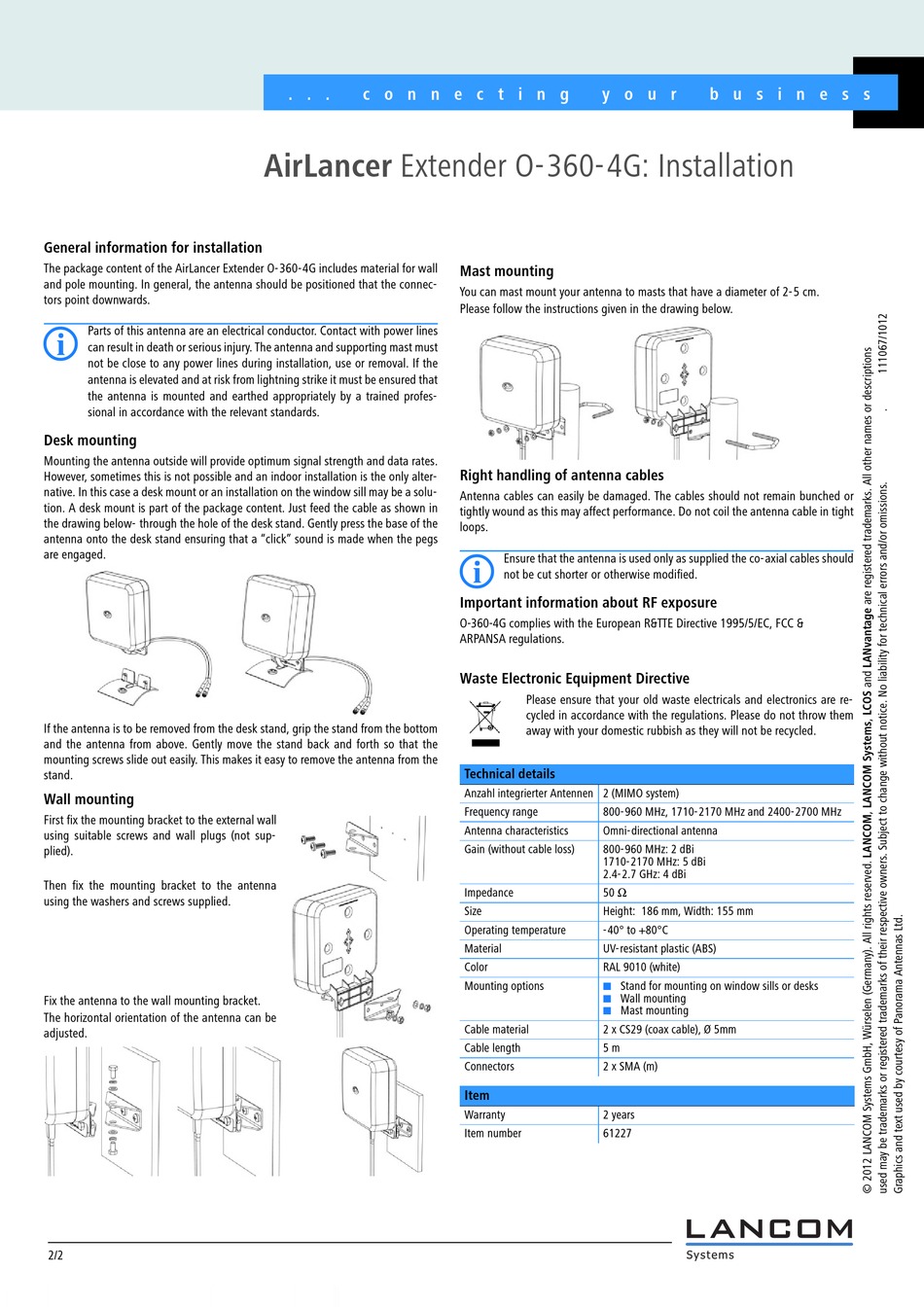

General information for installation
The package content of the AirLancer Extender O-360-4G includes material for wall
and pole mounting. In general, the antenna should be positioned that the connec-
tors point downwards.
Parts of this antenna are an electrical conductor. Contact with power lines
I
can result in death or serious injury. The antenna and supporting mast must
not be close to any power lines during installation, use or removal. If the
antenna is elevated and at risk from lightning strike it must be ensured that
the antenna is mounted and earthed appropriately by a trained profes-
sional in accordance with the relevant standards.
Desk mounting
Mounting the antenna outside will provide optimum signal strength and data rates.
However, sometimes this is not possible and an indoor installation is the only alter-
native. In this case a desk mount or an installation on the window sill may be a solu-
tion. A desk mount is part of the package content. Just feed the cable as shown in
the drawing below- through the hole of the desk stand. Gently press the base of the
antenna onto the desk stand ensuring that a "click" sound is made when the pegs
are engaged.
If the antenna is to be removed from the desk stand, grip the stand from the bottom
and the antenna from above. Gently move the stand back and forth so that the
mounting screws slide out easily. This makes it easy to remove the antenna from the
stand.
Wall mounting
First fix the mounting bracket to the external wall
using suitable screws and wall plugs (not sup-
plied).
Then fix the mounting bracket to the antenna
using the washers and screws supplied.
Fix the antenna to the wall mounting bracket.
The horizontal orientation of the antenna can be
adjusted.
2/2
. . .
c o n n e c t i n g
AirLancer Extender O-360-4G: Installation
y o u r
Mast mounting
You can mast mount your antenna to masts that have a diameter of 2-5 cm.
Please follow the instructions given in the drawing below.
Right handling of antenna cables
Antenna cables can easily be damaged. The cables should not remain bunched or
tightly wound as this may affect performance. Do not coil the antenna cable in tight
loops.
Ensure that the antenna is used only as supplied the co-axial cables should
I
not be cut shorter or otherwise modified.
Important information about RF exposure
O-360-4G complies with the European R&TTE Directive 1995/5/EC, FCC &
ARPANSA regulations.
Waste Electronic Equipment Directive
Please ensure that your old waste electricals and electronics are re-
cycled in accordance with the regulations. Please do not throw them
away with your domestic rubbish as they will not be recycled.
Technical details
Anzahl integrierter Antennen 2 (MIMO system)
Frequency range
800-960 MHz, 1710-2170 MHz and 2400-2700 MHz
Antenna characteristics
Omni-directional antenna
Gain (without cable loss)
800-960 MHz: 2 dBi
1710-2170 MHz: 5 dBi
2.4-2.7 GHz: 4 dBi
Impedance
50 Ω
Size
Height: 186 mm, Width: 155 mm
Operating temperature
-40° to +80°C
Material
UV-resistant plastic (ABS)
Color
RAL 9010 (white)
Mounting options
Stand for mounting on window sills or desks
Wall mounting
Mast mounting
Cable material
2 x CS29 (coax cable), Ø 5mm
Cable length
5 m
Connectors
2 x SMA (m)
Item
Warranty
2 years
Item number
61227
